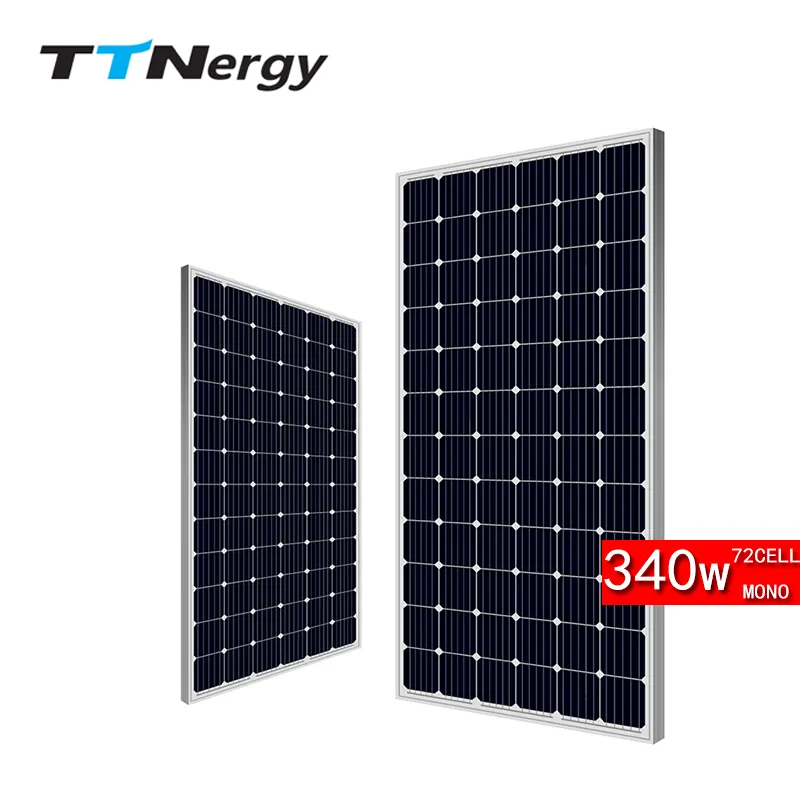

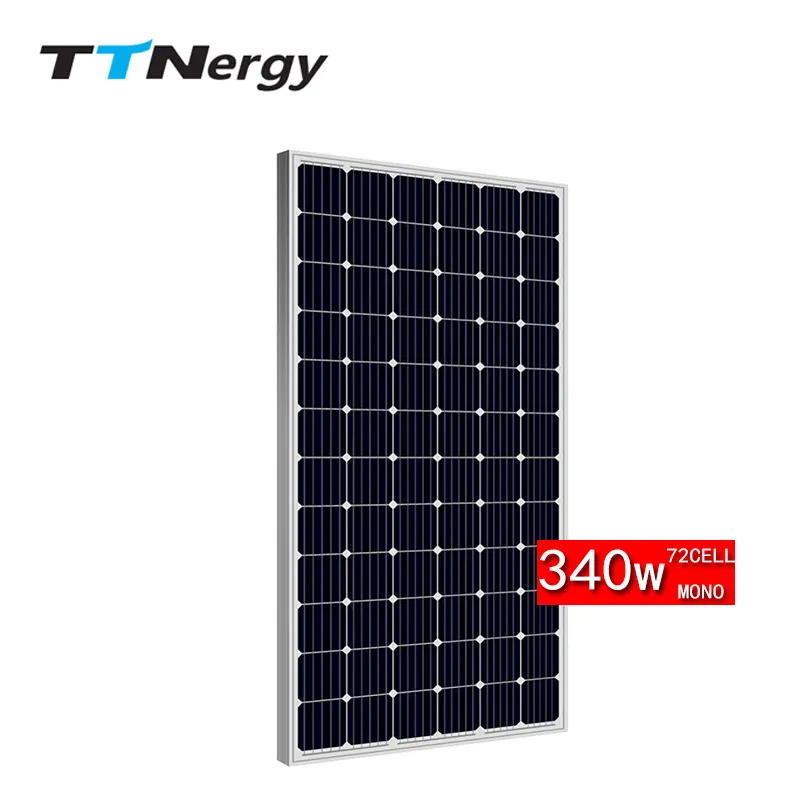

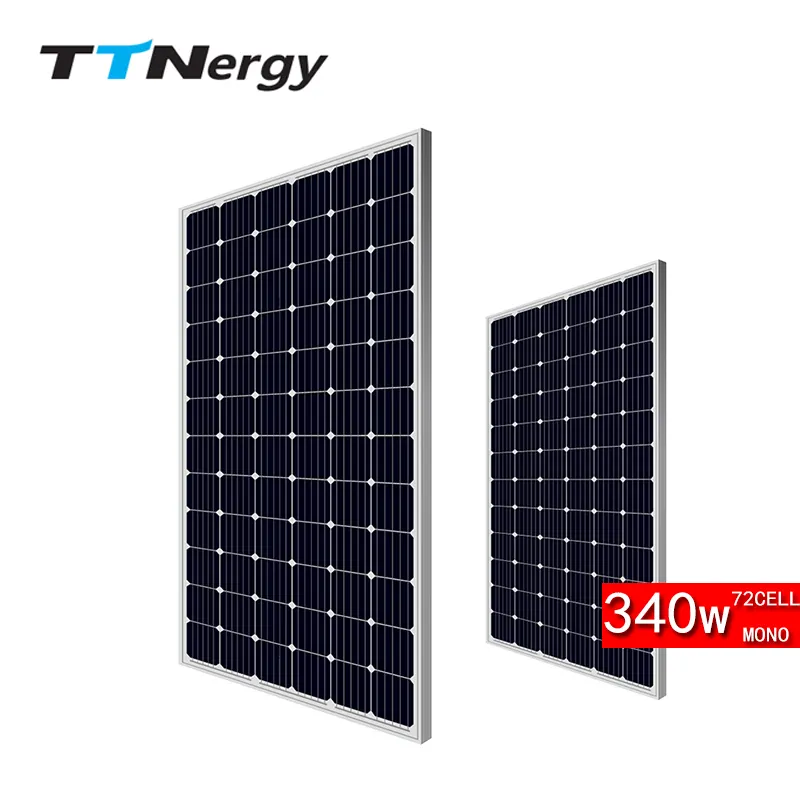

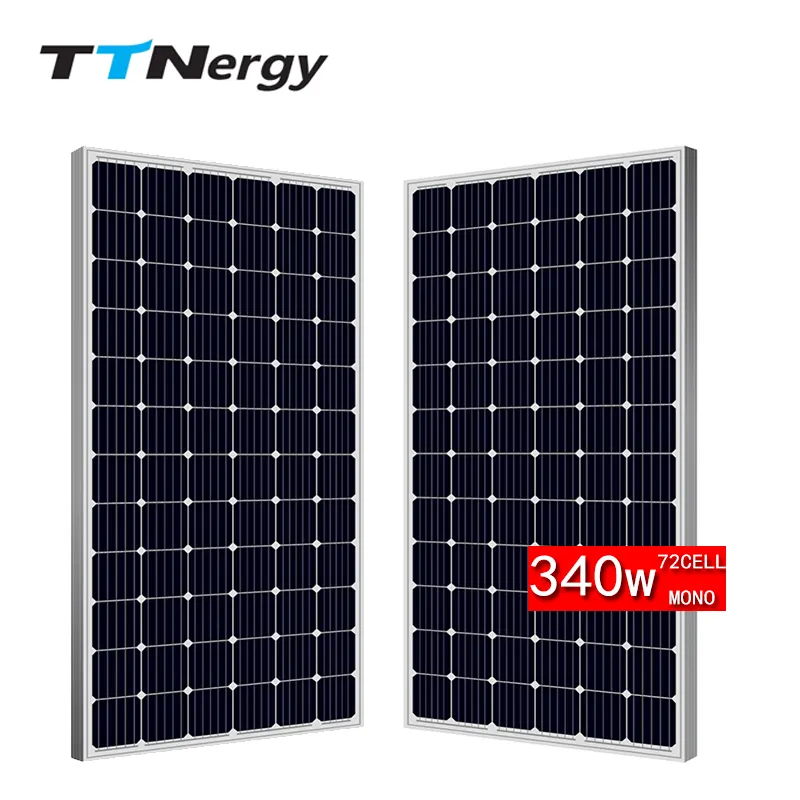

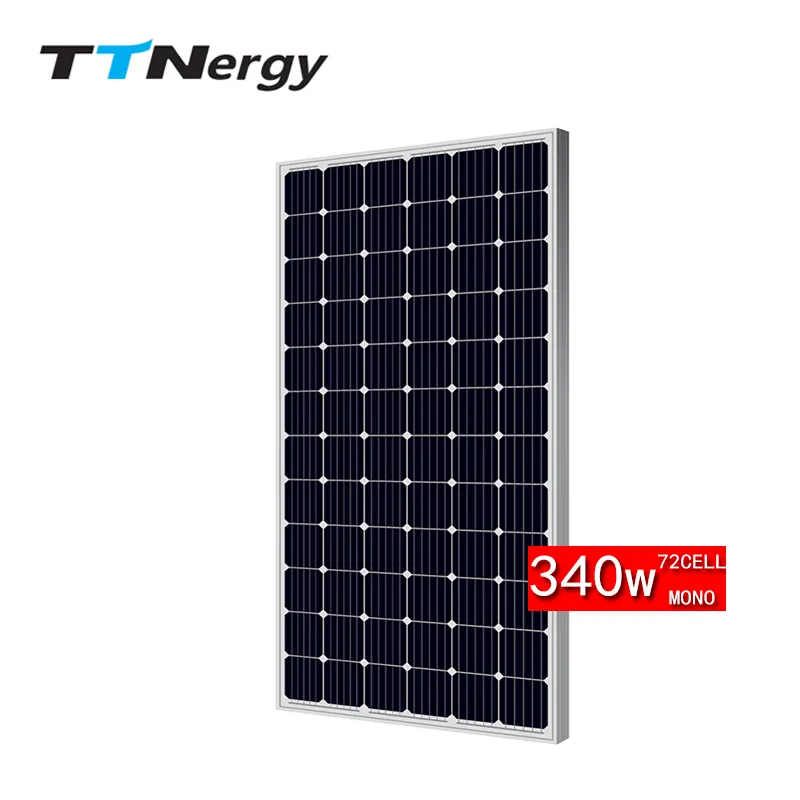

High Efficiency Monocrystalline 340-360w solar panels in stock
High Efficiency Monocrystalline 340-360w solar panels in stock
Additional information
| Solar cell | A-grade |
|---|---|
| Warranty | 25 years |
Product Information
340-360W Solar Panels Glass
* High-transmittance and low reflection * Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength * High flatness
340-360W Solar Panels Cell
* High output-power: conversation efficiency is 18%-22% * High shunt-resistance: adapt the several environmental conditions. * Bypass diode minimizes the power drop by shade * Excellent low light effect * Low breakage rate
340-360W Solar Panels Frame
* Aluminium extrusion profile with prompt delivery * Available in customized surface finish * Excellent material for smooth and subtle edges * Extrusion for construction and other industrial purposes * Thickness variable according special request
Junction Box
* High current and voltage carrying capacity * Simple, quick and safe effective field assembly * IP 68 it can be used in the outdoor iron environment * Expansion connector are available for future requirement * Double permanent connection are adapted for all of the connecting.
|
Module
|
TTN 340W
|
TTN 345W
|
TTN 350W
|
TTN 355W
|
TTN 360W
|
|
Peak Power Watts(Pmax/W)
|
340
|
345
|
350
|
355
|
360
|
|
Power Output Tolerance(W)
|
0~+5
|
||||
|
Maximum Power Voltage(Vmp/V)
|
38.08
|
38.17
|
38.3
|
38.43
|
38.59
|
|
Maximum Power Current(Imp/A)
|
8.93
|
9.04
|
9.14
|
9.24
|
9.33
|
|
Open Circuit Voltage(Voc/V)
|
47.22
|
47.33
|
47.42
|
47.51
|
47.6
|
|
Short Circuit Current(Isc/A)
|
9.31
|
9.4
|
9.51
|
9.62
|
9.73
|
|
Module Efficiency(%)
|
17.57
|
17.83
|
18.09
|
18.35
|
18.61
|
|
*Standard Testing Condition(STC):Irradiance 1000W/m3,Temperature 25 ,AM=1.5
|
|||||
Monocrystalline solar panels have a higher efficiency rate than other types of solar panels, making them more cost-effective in the long run. They are also more space-efficient, allowing for maximum energy production in a limited area. However, their higher cost may make them less accessible for some consumers.
