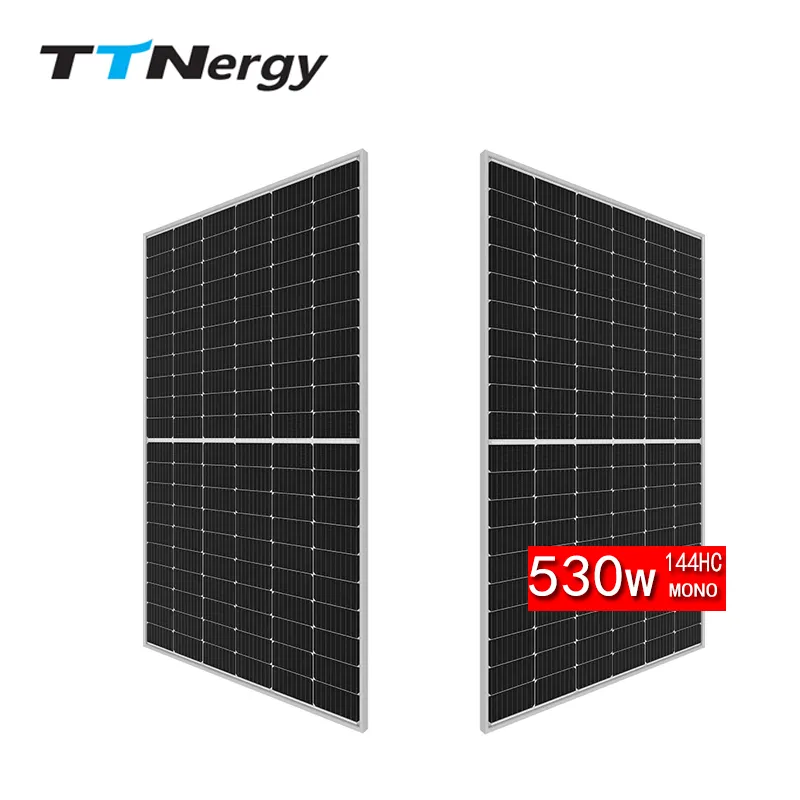

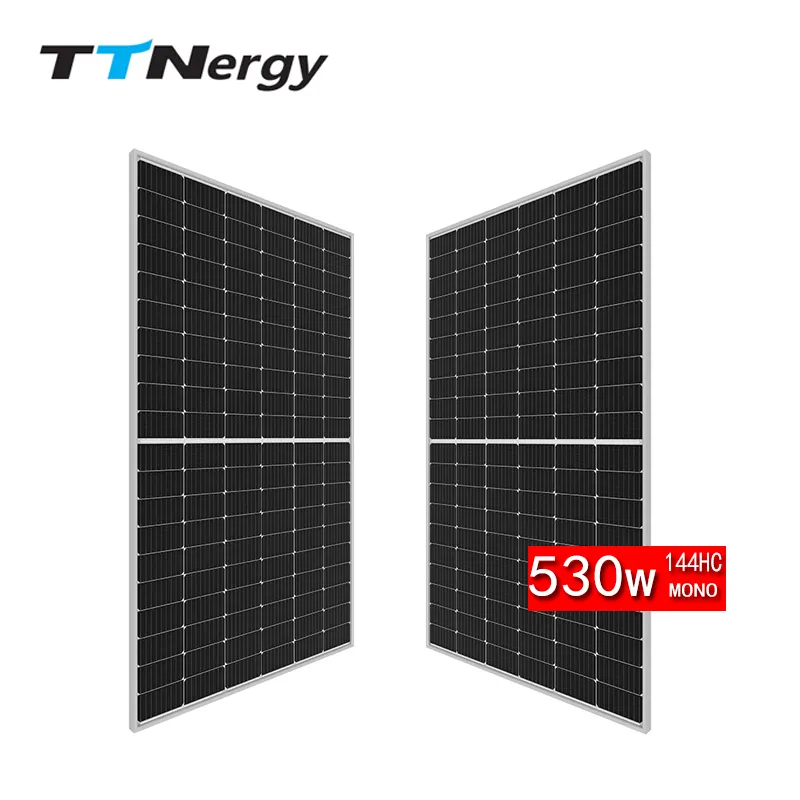

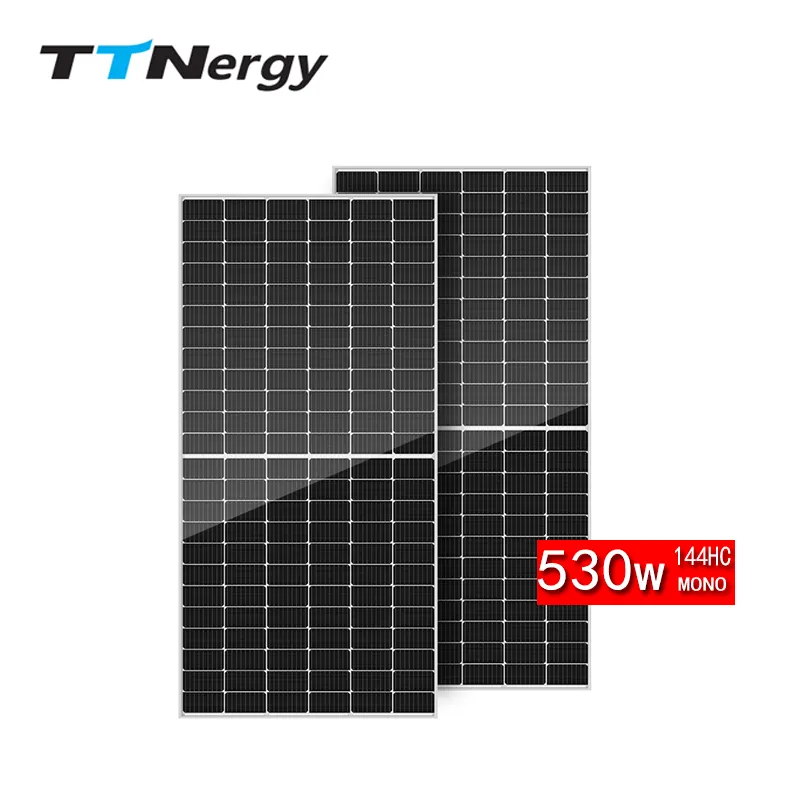

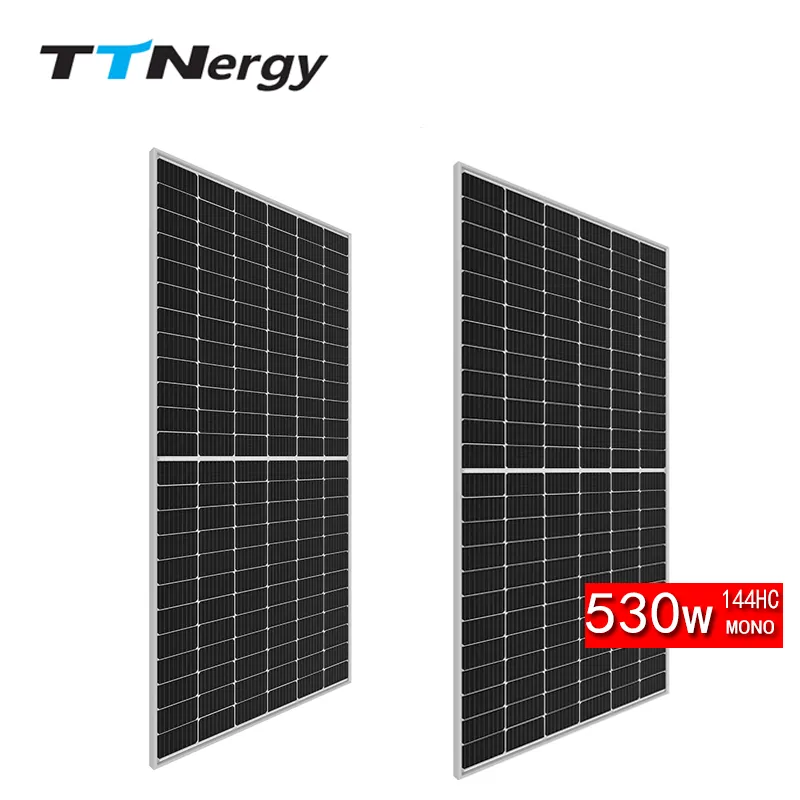

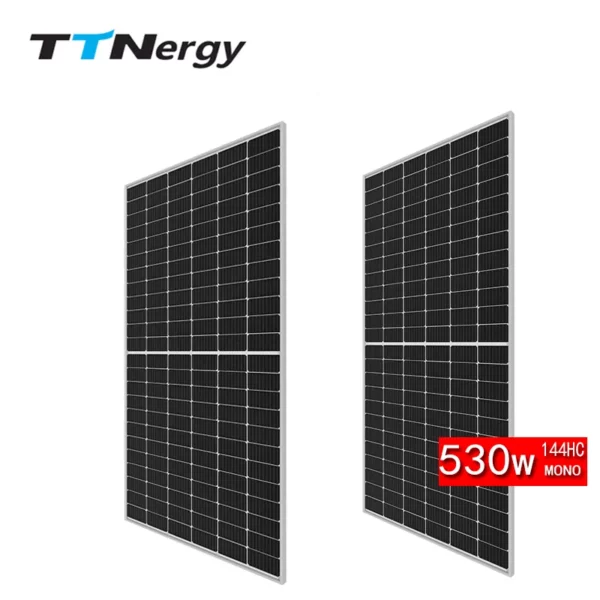

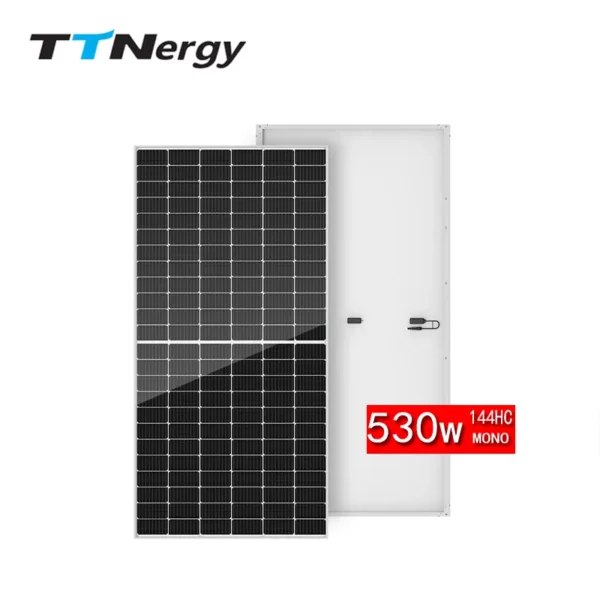

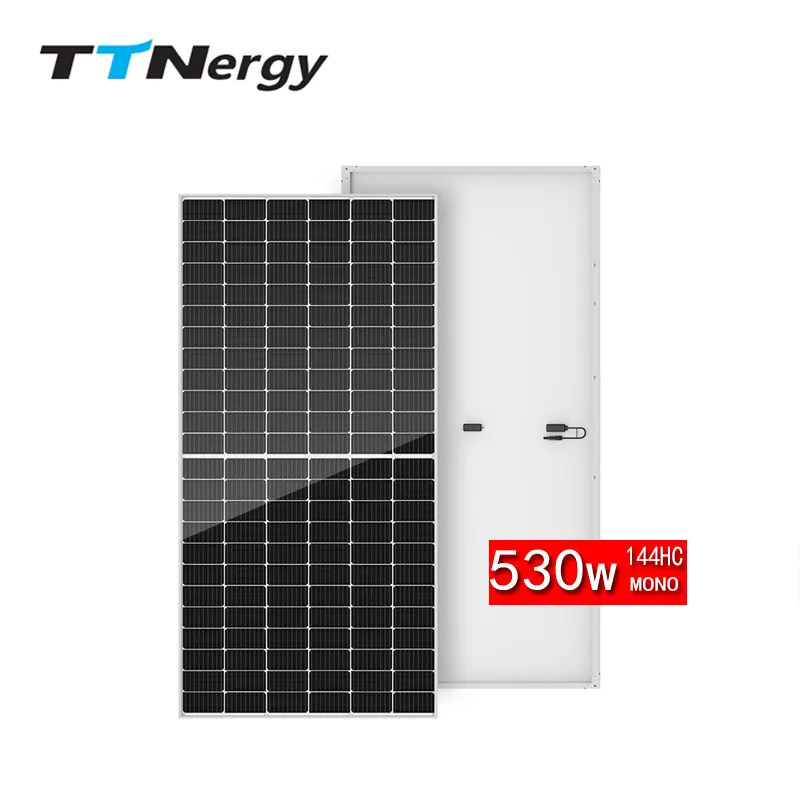

High Efficiency 48V 530-550W Photovoltaic solar panels
High Efficiency 48V 530-550W Photovoltaic solar panels
Additional information
| Color | Blue Ad Black |
|---|---|
| Cell size | 182mmx182mm |
| Type | PERC, Half Cell |
| Panel Efficiency | 21.67% |
| Warranty | 25 years |
Product Information
250w Solar Panels Glass
* High-transmittance and low reflection * Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength * High flatness
250w Solar Panels Cell
* High output-power: conversation efficiency is 18%-22% * High shunt-resistance: adapt the several environmental conditions. * Bypass diode minimizes the power drop by shade * Excellent low light effect * Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery * Available in customized surface finish * Excellent material for smooth and subtle edges * Extrusion for construction and other industrial purposes * Thickness variable according special request
Junction Box
* High current and voltage carrying capacity * Simple, quick and safe effective field assembly * IP 68 it can be used in the outdoor iron environment * Expansion connector are available for future requirement * Double permanent connection are adapted for all of the connecting.
|
Module
|
TTN 530W
|
TTN 535W
|
TTN 540W
|
TTN 545W
|
TTN 550W
|
|
Peak Power Watts(Pmax/W)
|
530
|
535
|
540
|
545
|
550
|
|
Power Output Tolerance(W)
|
0~+5
|
||||
|
Maximum Power Voltage(Vmp/V)
|
49.20
|
49.35
|
49.50
|
49.65
|
49.80
|
|
Maximum Power Current(Imp/A)
|
13.71
|
13.78
|
13.85
|
13.92
|
13.98
|
|
Open Circuit Voltage(Voc/V)
|
41.35
|
41.50
|
41.65
|
41.80
|
41.95
|
|
Short Circuit Current(Isc/A)
|
12.82
|
12.90
|
12.97
|
13.04
|
13.12
|
|
Module Efficiency(%)
|
20.7
|
20.9
|
21.1
|
21.3
|
21.5
|
|
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%. |
|||||
