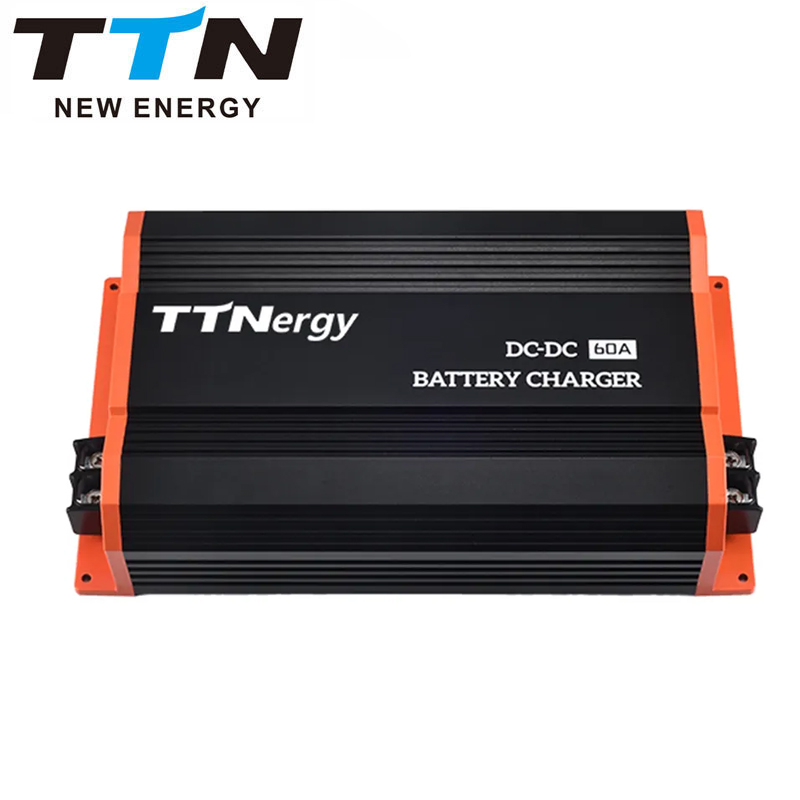

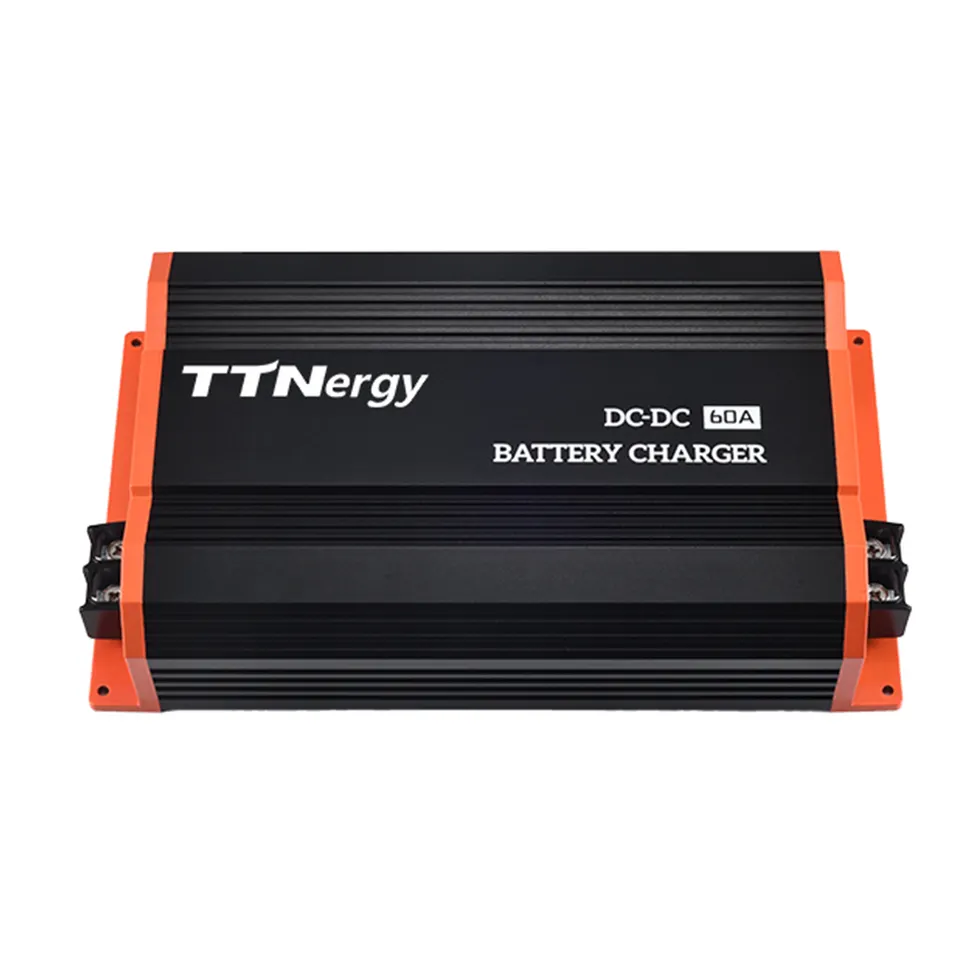

DCDC12v-40A Battery Charger



The DC To DC Charger series battery chargers are the most effective way to charge your auxiliary or house batteries from the alternator/starter battery.

Compatible with a multitude of alternator types, the DC To DC Charger offers correct charging for AGM, Flooded, Gel, and even deep-cycle batteries. Featuring a three-stage charger and multiple electronic protections, owners can feel confident that their batteries are being charged optimally and automatically. Easily install the compact yet sturdy on RVs, commercial vehicles, boats, yachts, and many more applications.

A DC-to-DC charger, also known as a DC converter, is a device that converts a DC input voltage into a different DC output voltage. This technology is commonly used in various applications, such as electric vehicles, portable devices, and solar power systems, where it is necessary to convert one DC voltage level to another to meet the specific needs of the system.



Key Feature

1. Compatible with multiple 12v batteries: AGM, Flooded, Gel, and Lithium

2. Smart protection features include over-voltage, over-temperature, and reverse polarity.

3. Battery isolation and battery charger in one

4. Compact yet built tough for all conditions

5. Three-stage battery charger gets your battery to 100%.

Technical Specification
Item	40A
Transformation	12V-12V
Nominal input voltage	12VDC
Input voltage range	8-16VDC
Rated charging current	20A

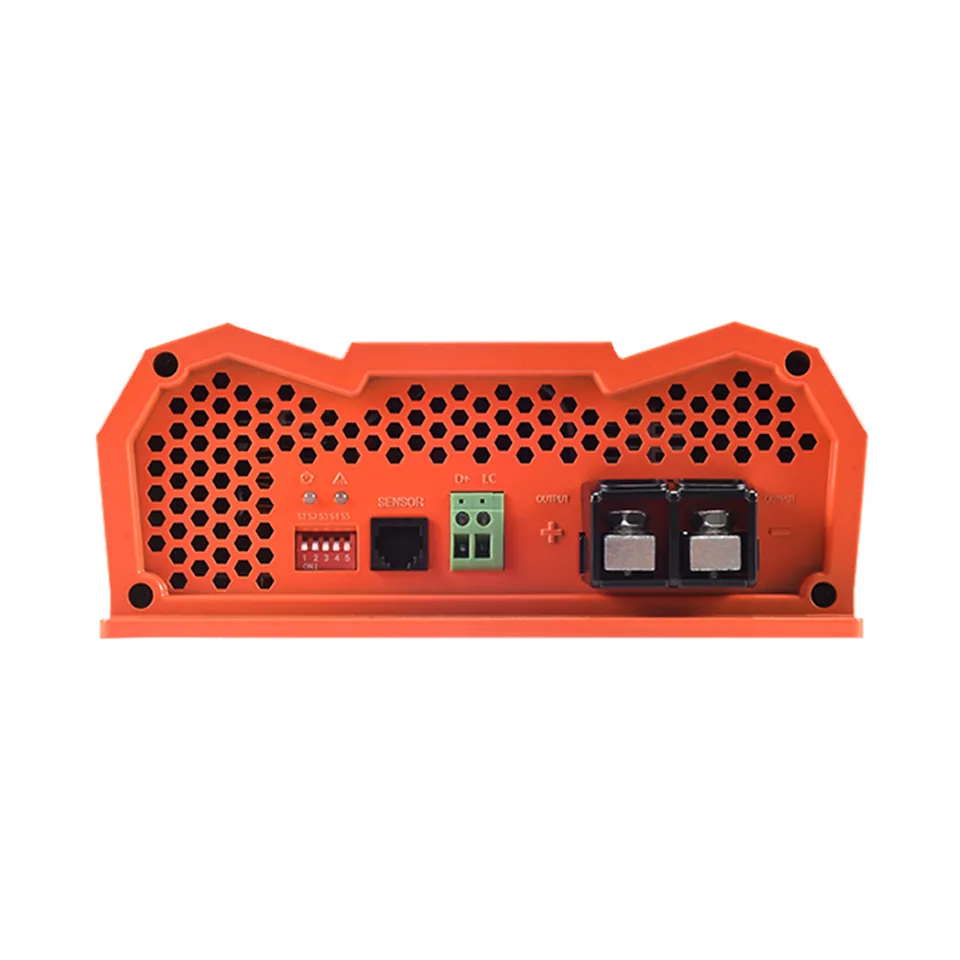

Charging voltage range	13.2v-14.7v,depending on DIP switch
Hax rated output power	480W
Residual ripple of output voltage at rated current	≤50mV @20A/40A/60A
Efficiency	≤90%
Idle power consumption	≤0.4%
Operational terperature	-20℃~+50℃
Humidity	≤95% Non-condensing
Dimension(L*W*H)	265*175*70mm
Weight	1.9kg
Certification	CE ROHS
