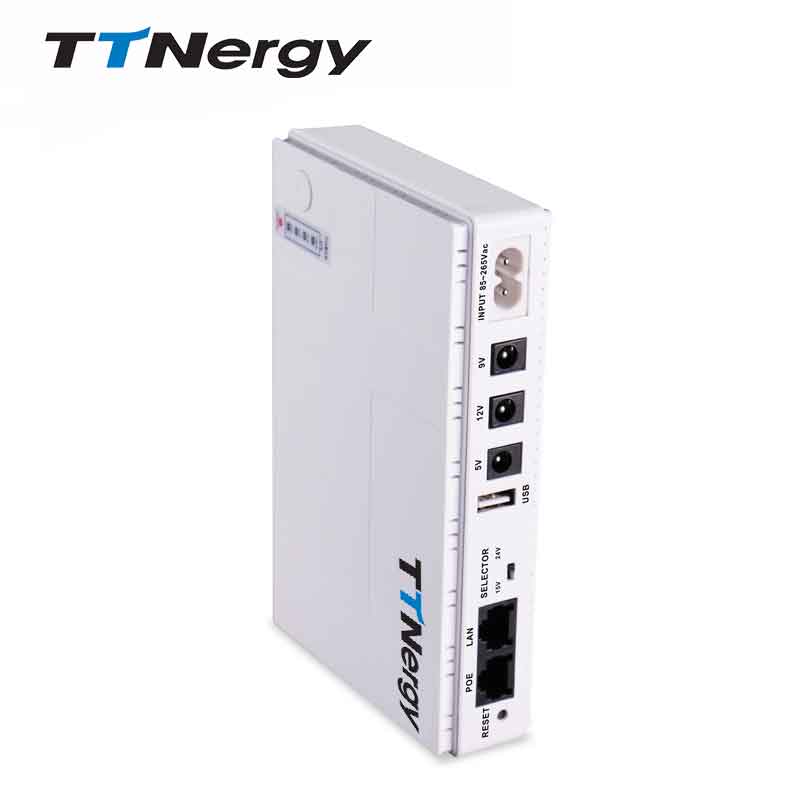

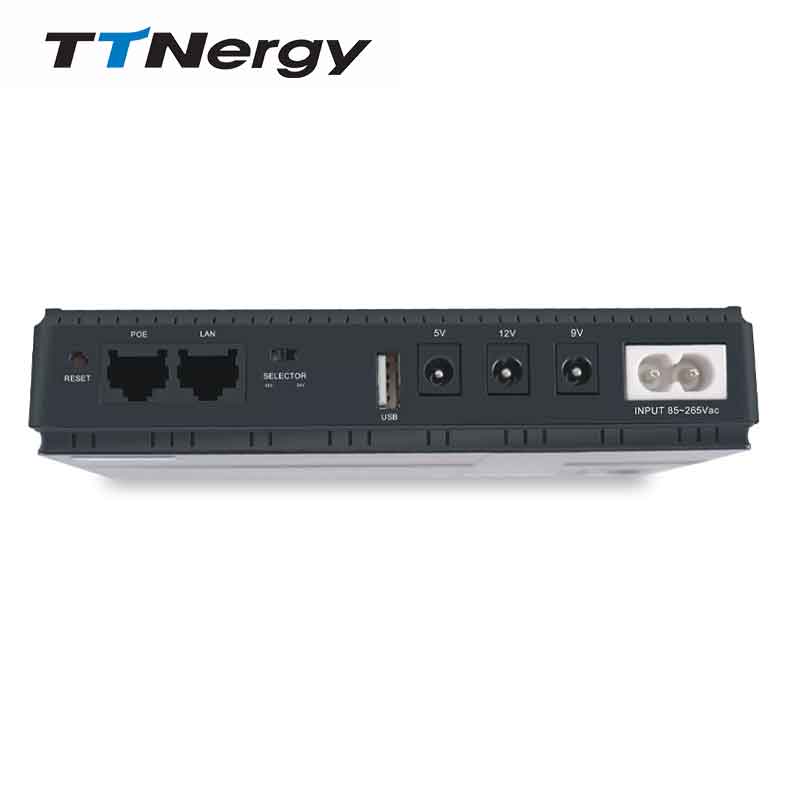

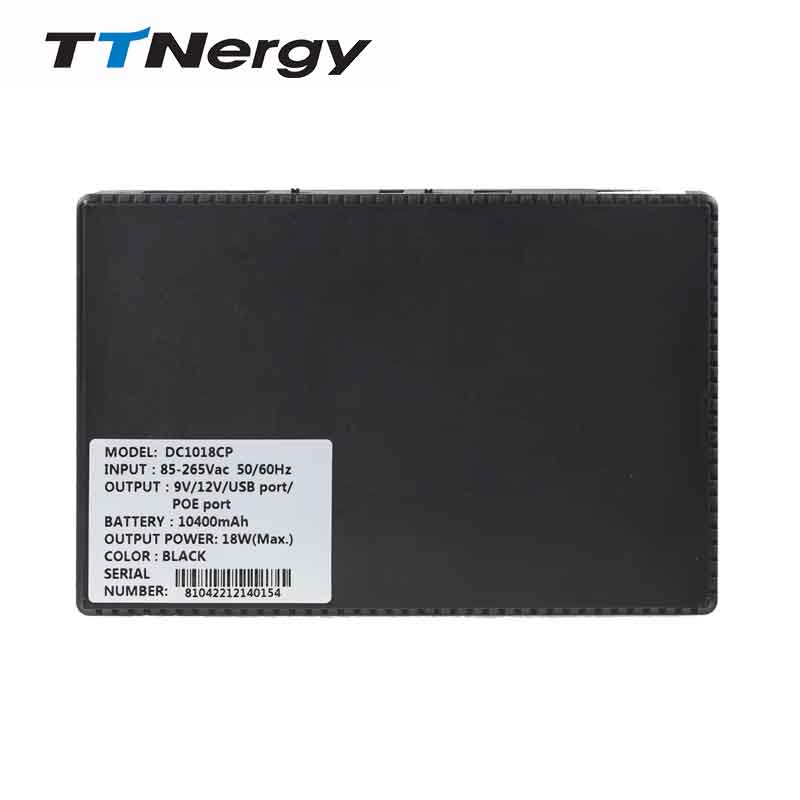

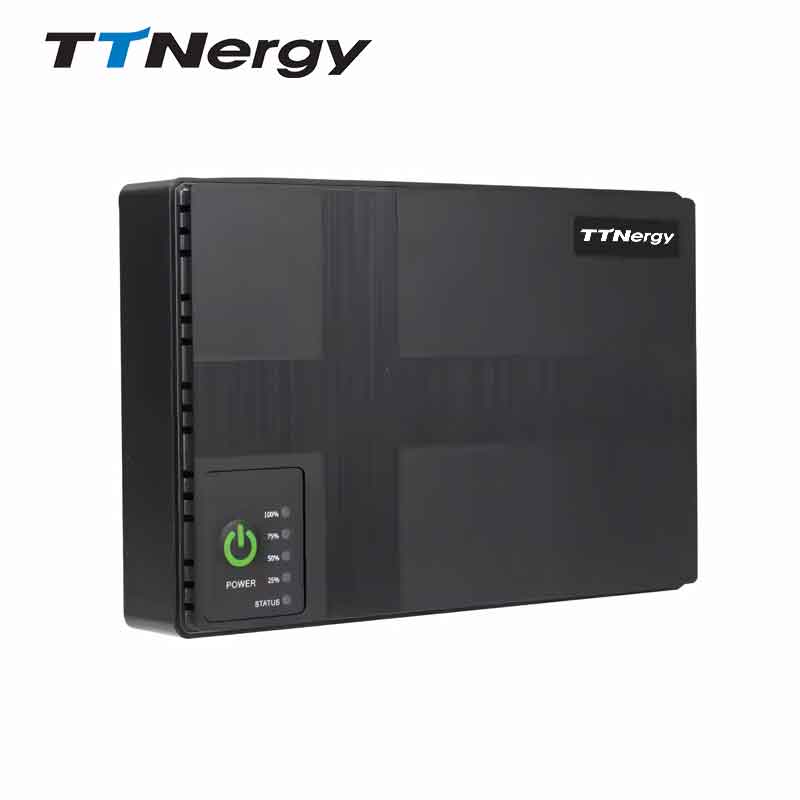

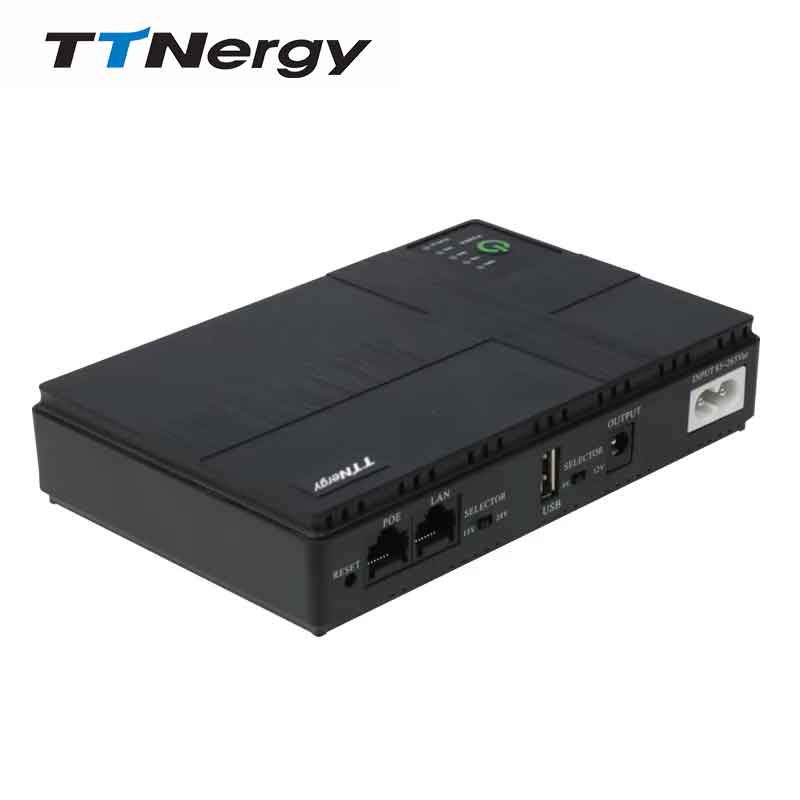

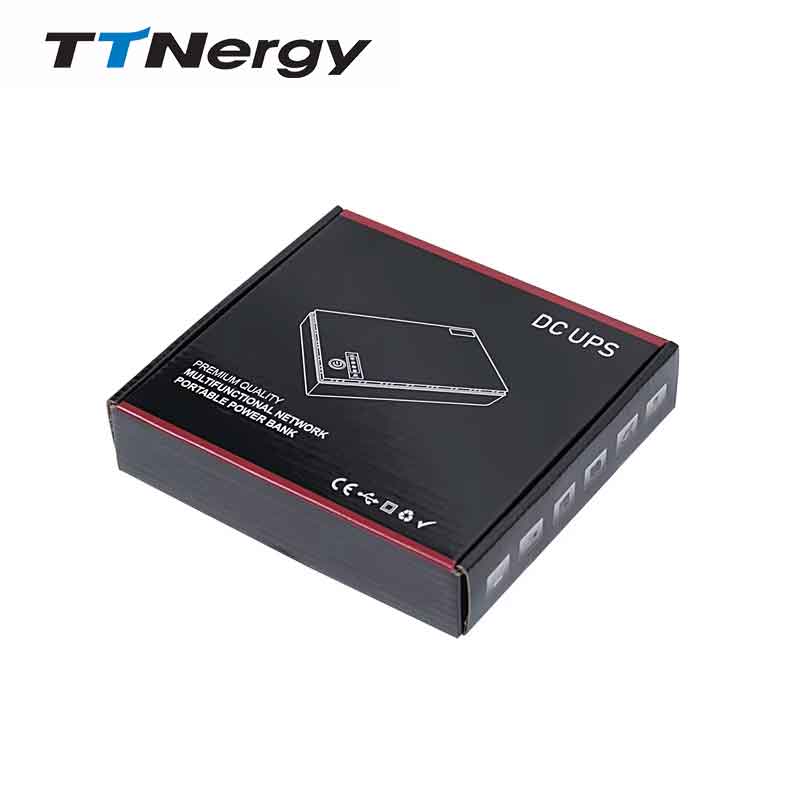

DC to DC UPS SERIES

Additional information

Battery type	Lithium Battery
Capacity of battery	2200mAh x 4
Protect	Over-charging, over-discharging and short circuit
Operation Temperature	O℃-40℃
Noise Level	Less than 40dB
Dimension(mm)	160x105x33
Net weight(kg)	0.41

Product Information

UPS is the short version of “uninterruptible power supply”. In many applications a continuous power supply is important because power fluctuations and outages can cause damage to control equipment as well as unexpected down time.during power failures, a UPS module can maintain the power supply for up to several hours. This means critical system components can be supplied continuously. Furthermore PLCs are able to end important processes without any damage and application data can be saved before losing.

Functions

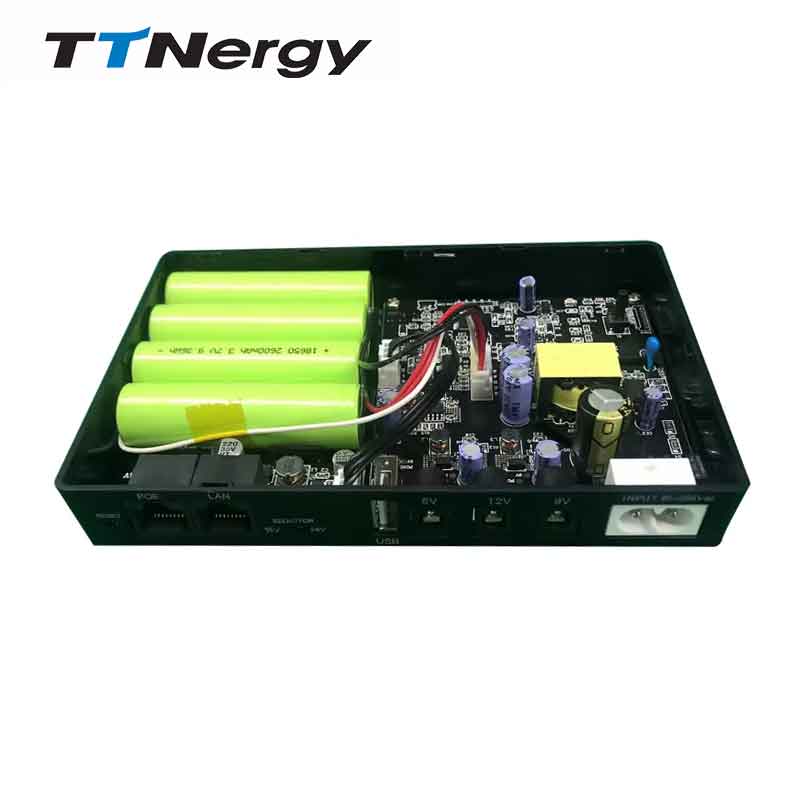

1.Built-in lithium battery
2.Intelligent circuit design with over-charging, over-dischargingand short circuit protection.
3.DC 5V/9V/12V output voltage selectable
4.Customized products of various capacities

Application
Router/OlP Phone SystemsSurveillance Systems/ Modem/Security Systems

Model	DC1018P		DC1036P
Input
Input	Voltage 85-265Vac
Output
DC Output Voltage	5V	1A	5V	2A
	USB	2A	USB	2A
	9V	1A	9V	2A
	12V	1A	12V	2A
	15V/24V(POE)	0.6A	15V/24V(POE)	0.6A
Output Power	18W		36W

Product specifications are subject to change without further notice.

What are the different types of UPS modules?

Each application area may require a different type of uninterruptible power supply module depending on its operation and sensitivity. PULS therefore offers UPS modules with capacitor storage and built-in battery that can be used in a broad range of applications:
