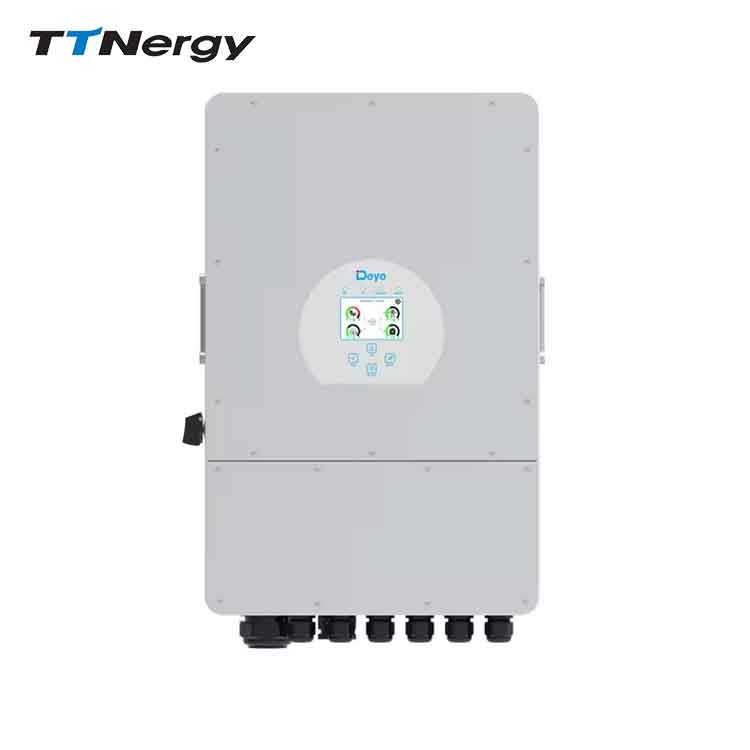

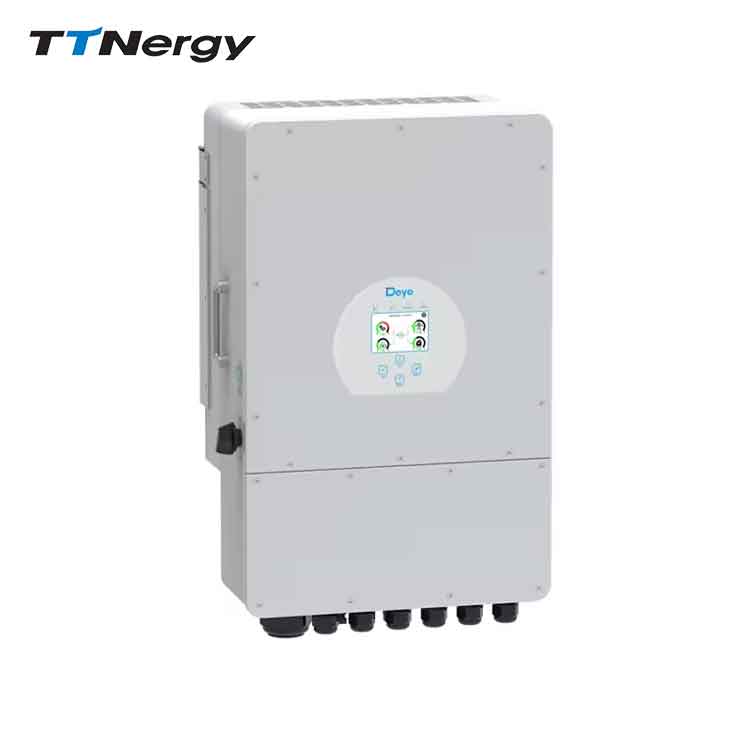

Deye Three Phase Hybrid Inverter SUN-8K-SG04LP3
Deye Three Phase Hybrid Inverter SUN-8K-SG04LP3
Additional information
| Output Type | Single, Triple |
|---|---|
| Type | DC/AC Inverters |
| Inverter Efficiency | 99.9% |
Product Information

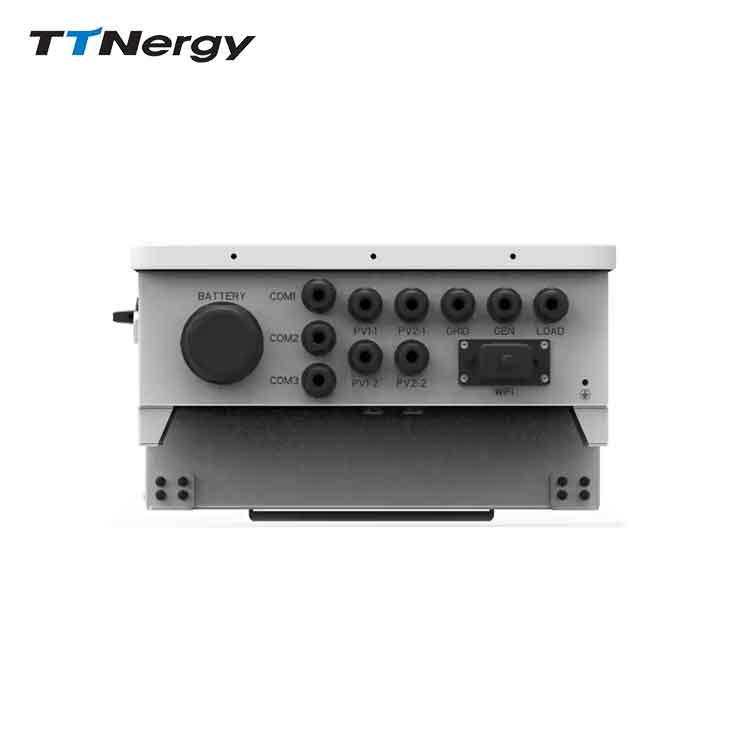

SUN-8K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
| Place of Origin | China |
| Brand Name | Deye |
| Model Number | SUN-8K-SG04LP3 |
| Input Voltage | 100~500V |
| Output Voltage | 220V/230V/240V |
| Output Current | 20.8-35A |
| Output Frequency | 50/60Hz |
| Size | 422W/658H/281D |
| Certificate | CE/INMETRO/TUV/VDE |
| Warranty | 5years |
| Weight | 36.8Kgs |
| Product name | SUN-8K-SG04LP3 8KW 10KW 12KW SolarInverte |
| Current Harmonic Distortion |
THD<3%(Linear load<1.5%) |
| Surge protection | Dc Type l / Ac Type ll |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Charging Curve | 3 Stages /Equalization |
| Operating Temperature Range (℃) | -25~60°C,>45°C Derating |
Why Choose Deye Solar inverters?
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy, Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2. Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard Wi-Fi communication
6.Deye Solar inverters are equipped with 25-year data storage capability (Internal SD Card)

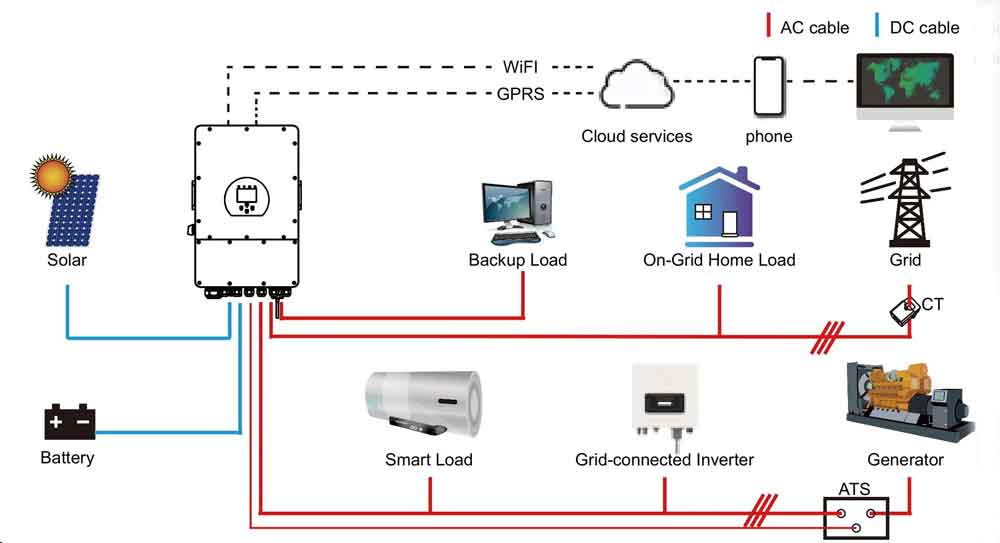

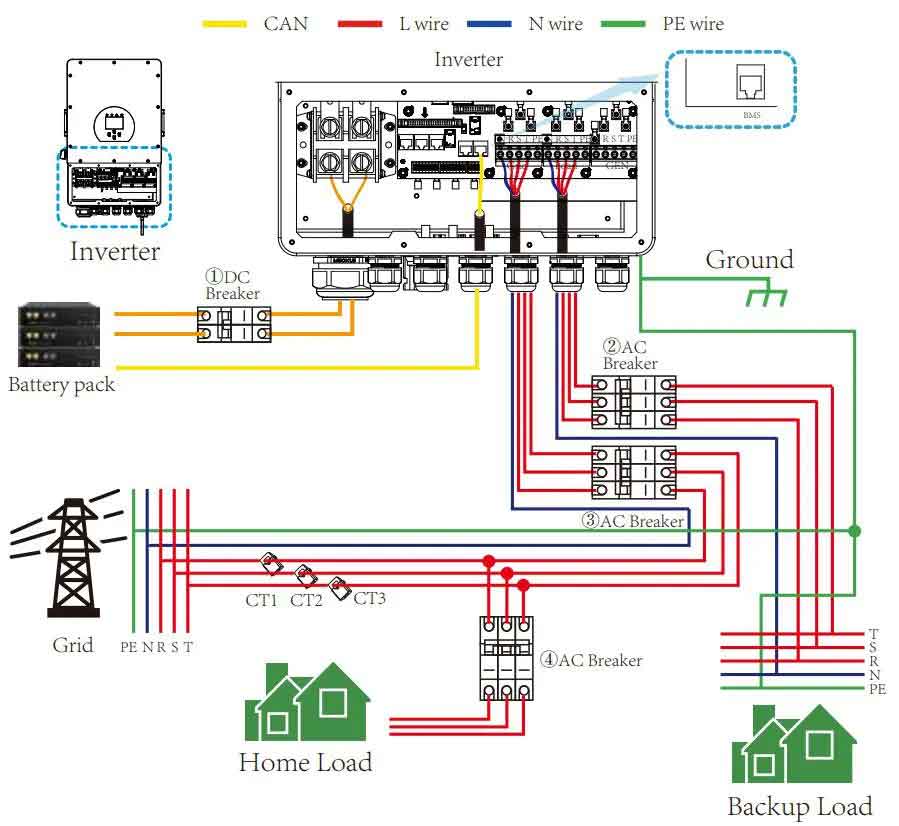

The following illustration shows basic application of this inverter. It also includes following devices to have a complete running system.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
