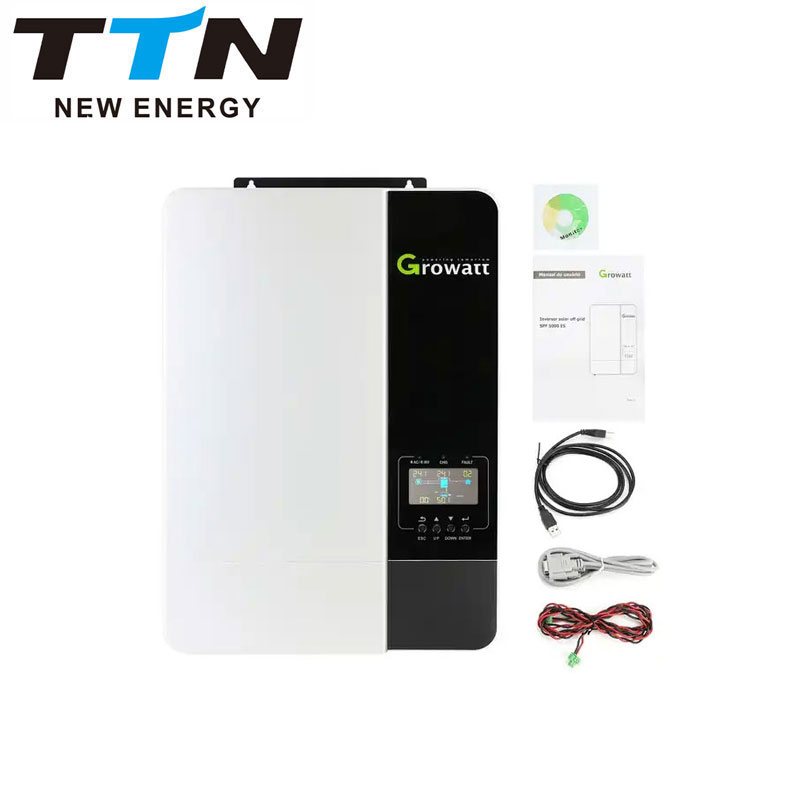

Growatt 48V DC SPF 5000 ES Off Grid Solar Hybrid Inverter
Growatt 48V DC SPF 5000 ES Off Grid Solar Hybrid Inverter
Additional information
| Output Current | 60A/80A |
|---|---|
| Output Frequency | 50Hz/60Hz Auto |
| Size | 330/485/135mm |
| Warranty | 5 years |
| MPPT Voltage | 120-430V |
| Rated Grid Voltage | 230V |
| Battery Voltage Range | 48V |
| Parallel Capability | 6 units maximum |
| Transfer Time | 10ms typical, 20ms Max |
Product Information
Growatt SPF ES is one-phase hybrid inverter designed for residential and small industrial applications. A properly designed hybrid system including SPF inverters and a battery pack and other accessories can maximize the self-sufficiency of a solar system and reduce electricity bills.
SPF 2000W-12000W
Off-Grid Storage Inverter
2-12kW Single Phase 450Vdc
Integrated MPPT charge controller.
Equalization charging function.
Work with or without battery.
PV input voltage up to 450VDC.
Configurable grid or solar input priority.
Configurable grid or solar input priority.
Optional WIFI/GPRS remote monitoring.
Support parallel operation for capcity expansion up to 30W.
PV and grid power the load jointly if PV energy is unsufficient.
Flexibly schedule the Inverter charging and discharging time.
|
Datasheet
|
SPF3500ES
|
SPF5000ES
|
||
|
Battery Voltage
|
48VDC
|
|||
|
Battery Type
|
Lithium/Lead-acid
|
|||
|
INVERTER OUTPUT
|
||||
|
Rated Power
|
3500VA/ 3500W
|
5000VA/ 5000W
|
||
|
Parallel Capability
|
Yes, 6 units maximum
|
|||
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|||
|
Surge Power
|
7000VA
|
10000VA
|
||
|
Efficiency (Peak)
|
93%
|
|||
|
Waveform
|
Pure sine wave
|
|||
|
Transfer Time
|
10ms typical, 20ms Max
|
|||
|
SOLAR CHARGER
|
||||
|
Maximum PV Array Power
|
4500W
|
6000W
|
||
|
MPPT Range @ Operating Voltage
|
||||
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
1/1
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Solar Charge Current
|
80A
|
100A
|
||
|
AC CHARGER
|
||||
|
Charge Current
|
60A
|
80A
|
||
|
AC Input Voltage
|
230VDC
|
|||
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||
|
PHYSICAL
|
||||
|
Protection Degree
|
IP20
|
|||
|
Dimension (W/H/D)
|
330/485/135mm
|
330/485/135mm
|
||
|
Net Weight
|
11.5kgs
|
12kgs
|
||
|
OPERATING ENVIRONMENT
|
||||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|||
|
Altitude
|
＜2000m
|
|||
|
Operating Temperature
|
0℃~55℃
|
|||
|
Storage Temperature
|
-15℃~60℃
|
|||
