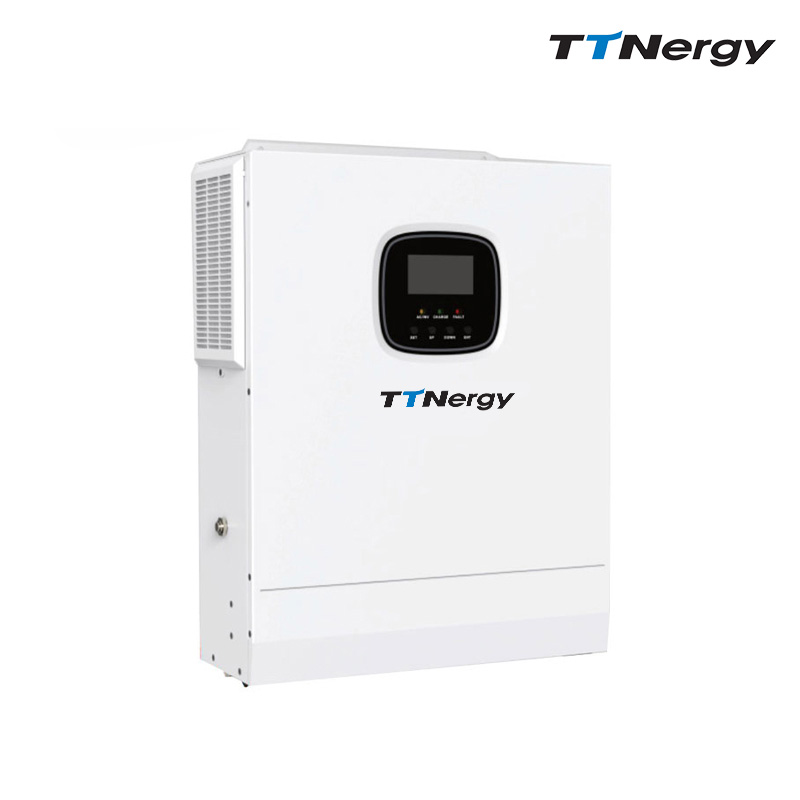

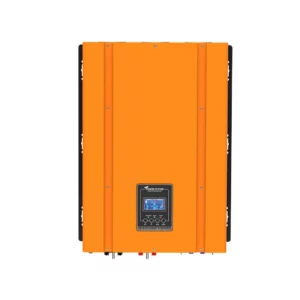

HAF EU 3K-5K / HAF US 3.5K-5K
HAF EU 3K-5K / HAF US 3.5K-5K
Additional information
| Specification authentication | CE(IEC62109)、RoHS |
|---|---|
| EMC authentication grade | EN61000 |
| Operation temperature range | -15°C to 55°C |
| Storage temperature range | -25°C~60°C |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Thermal dissipation | Forced cooling with adjustable air speed |

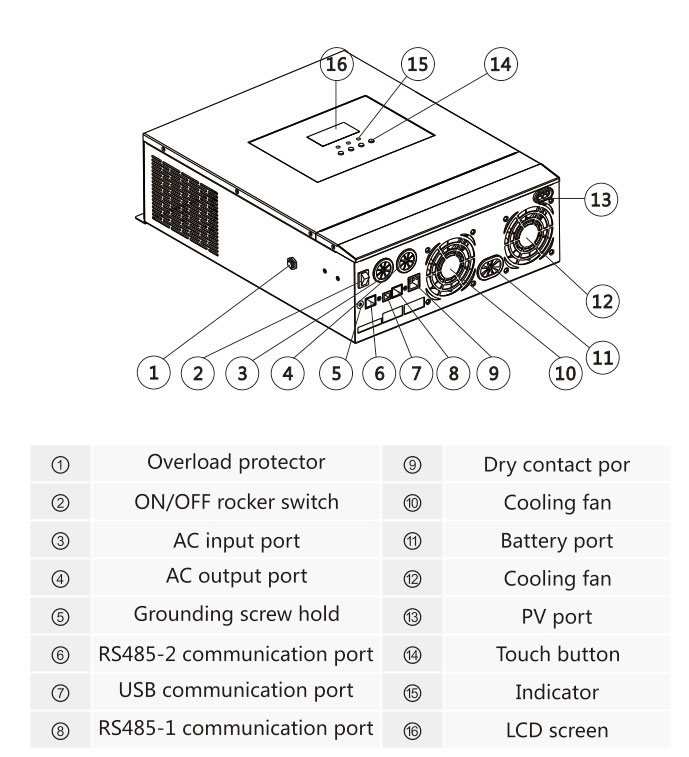

| Communication interface | USB/RS485 (WiFi/GPRS)/dry node control |
| Dimension (L*W*D) | 426*322*126mm |
Product Information
·Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

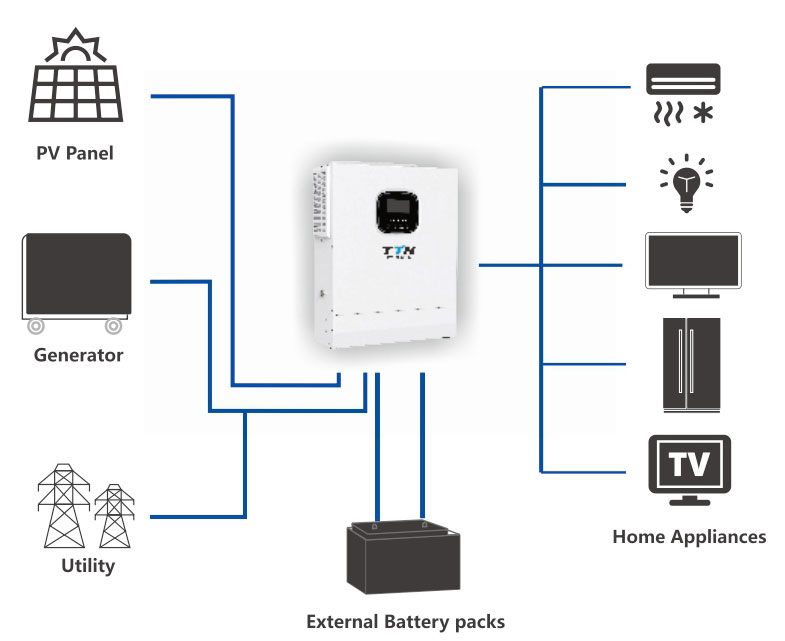

·Two output modes: mains bypass and inverter output; uninterrupted powersupply.
·Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains& Solar hybrid charging.
·Advanced MPPT technology with an efficiency of 99.9%.
·With the charging requirement (voltage, current, mode) settings, and suitable forvarious types of energystorage batteries.
·ON/OFF rocker switch for AC output control.
·Power saving mode available to reduce no-load loss.
·Intelligent variable speed fan to efficiently dissipate heat and extend system life.
·Lithium battery activation design, allowing access of lead-acid battery and lithium battery.
·360 °all-round protection with a number of protection functions. Such asoverload,short circuit and overcurrent.
·Supply of a variety of user-friendly communication modules, such as Rs485(GPRS,WiFi), CAN, USB etc., and suitable for computer, mobile phones,Internetmonitoring as well as remote operations.
| Model | HAF 3K EU | HAF 3.5K US | HAF 3.5K US | HAF 5K US |
| AC MODE | ||||
| Rated input voltage | 220/230Vac | 110/120Vac | ||
| Input voltage range | (170Vac~280Vac)+2%; (90Vac-280Vac)+2% |
(90Vac~140Vac)±2% | ||
| Frequency | 50Hz/60Hz(auto-sensing) | |||
| Frequency Range | 47+0.3Hz~55+0.3Hz(50Hz)/57+0.3Hz~65+0.3Hz(60Hz); | |||
| Overload/short circuit protection | Breaker | |||
| Efficiency | >95% | |||
| Conversion time (bypass and inverter) | 10ms (Typical value) | |||
| AC reverse protection | Available | |||
| Maximum bypass overload current | 40A | 63A | ||
| Inverting mode | ||||
| Output voltage waveform | Pure sine wave | |||
| Rated output power(VA) | 3000(2600/2700/3000) | 5000(4350/4500/4800/5000) | 3500(2900/3000/3200) | 5000(4100/4300/4500) |
| Rated output power(W) | 3000(2600/2700/3000) | 5000(4350/4500/4800/5000) | 3500(2900/3000/3200) | 5000(4100/4300/4500) |
| Power factor | 1 | |||
| Rated output voltage (Vac) | 230Vac(200/208/220/240Vac settable) | 120Vac (100/105/110Vac settable) | ||
| Output voltage error | ±5% | |||
| Output frequency range (Hz) | 50Hz+0.3HZ/60Hz±0.3HZ | |||
| Efficiency | >90% | |||
| Overload protection | (102%<load<125%) +10%: reporting error and turn off theoutput after 5 minutes;(125%<load<150%) +10%: reporting error andturn off theoutput after 10 seconds;Load>150% +10%: reporting error and turn offthe outputafter 5 seconds; | (102%<load<110%) +10%: reporting error and turn off theoutput after 5 minutes;(110%<load<125%) +10%: reporting error andturn off theoutput after 10 seconds;Load>125% ±10%: reporting error and turn offthe outputafter 5 seconds; | ||
| Peak Power | 6000VA | 10000VA | 5000VA | 7000VA |
| Loaded motor capacity | 2HP | 4HP | 2HP | 3HP |
| Output short-circuit protection | Breaker | |||
| Specification of bypass breaker | 40A | 63A | ||
| Rated battery input voltage | 48V (minimum start voltage 44V) | |||
| Battery voltage range | 40.0vdc~60Vdc + 0.6Vdc (undervoltage alam/tumoff voltage/overvoltage alarm/overvoltage restoration..settable lCD screen) | |||
| Power saving mode | Load≤50W | |||
| AC charge | ||||
| Battery type | Lead acid or lithium battery | |||
| Maximum charge current | 60A | 40A | ||
| Charge current error | ±5 Adc | |||
| Charge voltage range | 40Vdc~60Vdc | |||
| Short-circuit protection | Breaker and blown fuse | |||
| Breaker specification | 40A | 63A | ||
| Overcharge protection | Turn off charge after 1min alarm | |||
| Solar charge | ||||
| Maximum PV opencircuit voltage | 500Vdc | 450Vdc | 500Vdc | |
| PV operation voltage range | 120-500Vdc | 120-450Vdc | 120-500Vdc | |
| MPPT voltage range | 120-500Vdc | 120-450Vdc | 120-500Vdc | |
| Battery voltage range | 40-60Vdc | |||
| Maximum output power | 4200W | 5000W | 4200W | 5000W |
| Charge curent range of solar energy (settable) | 0-60A | 0-80A | 0-60A | 0-80A |
| Charge short-circuit protection | Blown fuse | |||
| Wiring protection | Inverse wiring protection | |||
| Weight | 10.9 | 11.6 | ||
