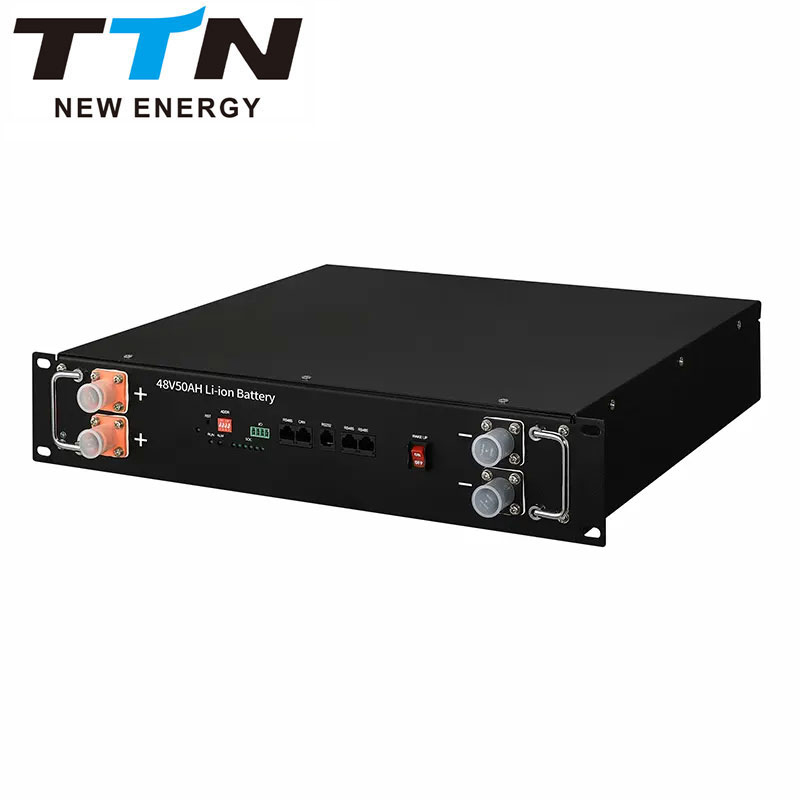

Rack Model Lithium Energy Storage Battery 48V/51.2V 50Ah
Rack Model Lithium Energy Storage Battery 48V/51.2V 50Ah
Additional information
| Size(mm) | 484*410*135 |
|---|---|
| Weight | 24.5kg |
| Humidity | 20%-60% |
| IP Rating | IP20 |
| Max Number Of Parrallel | 15 |
| Warranty | 5 Years |
Product Information
The battery has compatible BMS with MPP Solar, Voltronic and Voltacon Inverters, it also works with Solis hybrid and all Growatt inverters.
Voltacon Lithium Battery Console 2.4kwh
16 in 1 Compatible BMS that works with 16 brands of solar inverters
The cost and performance of lithium batteries continuously improve, the power density makes the consoles significantly smaller and compact. The round trip process, DC-to-storage-to-DC energy efficiency of the storage bank, or the fraction of energy put into the storage that can be retrieved, is one of the most important characteristics. That means less than 5% of your stored energy is lost in the conversion process.
Main Advantages Of Lithium-Ion Batteries
Extremely high efficiency, round trip efficiency 95%
Very low standby consumption less than 0.5Watt
Higher discharge and starting current compared to lead-acid
Energy density 100-200Wh/kg
Power density 1500-2000W/kg
Recharge time 1hour to 100%
Operating temperature from 0°C to 45°C
Key Features
We offer 48V50Ah (CATL) batteries with sophisticated & reliable BMS.
You can connect them in parallel to make 2.4kwh to 120kWh system.
Easy to install and free of maintenance
Long-lasting (up to 6000cycles)
Can be used on-grid and off-grid
IEC62619 & UN38.3 certificates.
Compatible inverters: Voltacon, Growatt, Kelong, Goodwe, Sermatec(SMT), Studer, Victron, Deye, TBB Power, Schneider, Voltronic, LuxPower, Afore, Megarevo, Solis.
Battery Identification
Model: 48V 50Ah LFP battery
Size: 19inches*2U*410mm. 442 x 410 x 89mm
Life expectancy: over 6000 cycles, equivalent to 10-12 years
Certificate: UN38.3, IEC62619Connections: Parallel
| Model | Rack 48V 50Ah / 51.2V 50Ah |
| Capacity | 2.4kWh / 2.56kwh |
| Normal Discharging Current | 25A |
| Max Discharging Current | 50A |
| Voltage | 40.5-54VDC or 43.2-56.5V |
| Standard Voltage | 48VDC or 51.2VDC |
| Max Charging Current | 50A |
| Max Charging Voltage | 54V for 48V or 57.6V for 51.2V |
| Suggested DOD Model | 80%-90% |
| Size(mm) | 484*410*135 |
| Weight | 24.5kg |
| Humidity | 20%-60% |
| Installation | Rack mounted or cabinet |
| IP Rating | IP20 |
| Max Number Of Parrallel | 15 |
| Warranty | 5 Years |
| Communication | CAN/RS485/RS232(4G WiFi/bluetooth/4G optional) |
| Monitor | Bluetooth (optional) |
| Battery Protection | Over Current/ Over Voltage/ Short Circuit/ Low Voltage/High Temperature |
