TTNergy On/Off Grid Smart Solar inverter Hybrid AX-72KW

Additional information

Communication Port	RS232/RS485/WIFI/GPRS/Lithium Battery
Humidity	5% to 95% Relative Humidity(Non ~ condensing)
Operating Temperature	-10°C-50°C
Compliance Safety	CE

Product Information

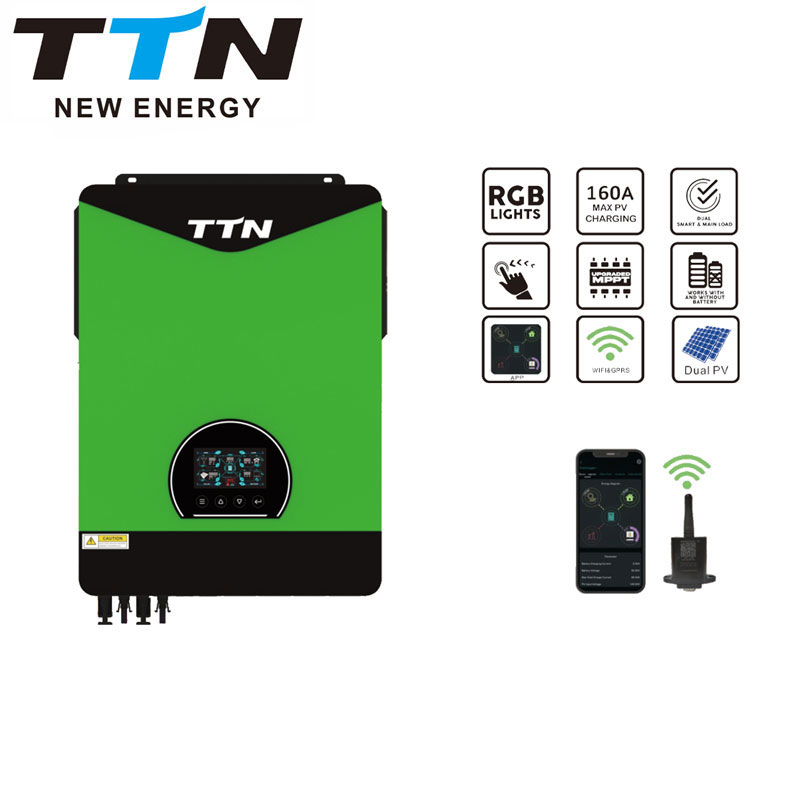

The AX On/Off Grid Smart Solar inverter all-in-one, multi-function inverter/charger; it combines the capabilities of an inverter, MPPT solar charger, and battery charger to offer uninterrupted power support in a single, portable-sized package. Its comprehensive LCD display offers user-configurable and easy-accessible button operation including battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

This compact powerhouse is perfect for small barn builds and small critical loads panels as it easily supports lights, an average fridge/freeze, or a 9K BTU Mini Split.

Features

● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0
● High PV input voltage range(90- 500VDC)
● Built-in antidust kit for harsh environment
● WIFI&GPRS available for lOS and Android
● Smart battery charge design to optimize battery life
● Dual output
● Inverter can run without battery
● Dual PV input
● One-key restoration to factory Settings
● Touch button
● Built-in Lithium battery automatic activation
● On Off Grid Work Mode
● Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)，140A(for 7.2kw)

Model	AX-7-2KW	AX-8-2KW		AX-10-2KW
General
Physica
Dimension, DxWxH(mm)	500390130	500390130	530420160	500390130	530420160
Carton Dimension, DXWXH(mm)	588463205		618463205	588463205	618463205
Net Weight (kgs)	13.6	14.5	14.6	14.8	15
Gross Weight(kgs)	14.9	16	16.1	16.2	16.5
Interace
Communication Port	RS232/RS485/WIFI GPRS/Lithium Battery
Environment
Humidity	5% to 95%Relative Humidity (Non~condensing)
Operating Temperature	10℃-50℃
Standard
Compliance Safety	CE

Model	AX-7-2KW	AX-8-2KW		AX-10-2KW
Phase	1-phase
Maximum PV Input Powe	8200W	10200W	5400W+5400w	10200W	5400W+5400W
Rated Output Power	7200W/7200VA	8200W/8200VA		10200W/10200VA
Maximum Solar Charging Current	140A	160A		160A
Grid-TIE OPERATION
PV Input (DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage /Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90~450VDC
Maximum Input Curren	1/23A	1/23A	2/18A	1/23A	2/18A
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190~253VDC
Nominal Output Curren	31.3A	35.6A		44.3A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Eficiency (DC/AC)	98%
Two Load Output Power
Full Load	7200W	8200W		10200W
Maxium Main Load	7200W	8200W		10200W
Maxium Second Load(battery mode	2400W	2733W		3400W
Maxium Load Cut Off Voltage	52VDC	52VDC		52VDC
Maxium Load Return Voltage	54VDC	54VDC		54VDC
Off-Grid Operation
AC INPUT
AC Start-up Voltage/Auto Restart Volta	120-140VAC/180VAC
Acceptable Input Voltage Rang	90-280VAC or 170-280VAC
Frequency Range	49-51±1Hz or 59-61±1Hz
Maximum AC Input Curren	40A	40A		50A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltag	360/500VDC
wpPT Moltage Range	90~450VDC
Maximum Input Current	1/23A	1/23A	2/18A	1/23A	2/18A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	94%
BATTERY&CHARGER
Nominal DC Voltage	48VDC
Maximum Solar Charging Curren	140A	160A		160A
MaximumAC Charging Curren	120A	140A		140A
Maximum Charging Current	140A	160A		160A
Hybrid Operation
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage	360/500VDC
Start-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90~450VDC
Maximum Input Curren	1/23A	1/23A	2/18A	1/23A	2/18A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	190~253VDC
Nominal Output Current	31.3A	35.6A		44.3A
AC Input
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	90-280VAC or 170-180VAC
Maximum AC Input Current	40A	40A		50A
Maximum AC Charging Current	120A	140A		140A

TTNergy On/Off Grid Smart Solar inverter Hybrid AX-72KW
