High energy density battery, Enabled Sunpal Powerbox Ultra-Compact, Light Weight. Compact Size Makes Sunpal Powerbox Easy To Handle. Lifepo4 Battery

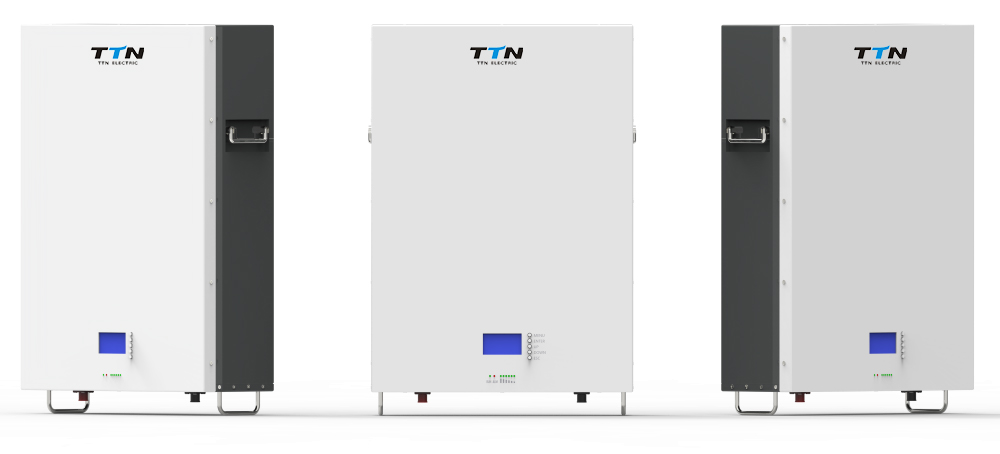

Home Lifepo4 Li Ion energy storage battery power wall 10Kwh 50-400ah For Solar Power
Home Lifepo4 Li Ion energy storage battery power wall 10Kwh 50-400ah For Solar Power
Additional information
| Battery protection | PCM/PCB/BMS |
|---|---|
| Cycle life | ≥6000 time |
| Color | Grey, Black , Red ,Green,White etc |
| Warranty | 10 years |
Product Information
|
Model No
|
TN5000U- 5KWH
|
TN7000U- 7KWH
|
TN10000U- 10KWH
|
|
Voltage
|
48 V
|
48 V
|
48 V
|
|
Capacity
|
100 Ah
|
150 Ah
|
200 Ah
|
|
Energy
|
4.8 kWh
|
7.2 kWh
|
9.6 kWh
|
|
Operation voltage
|
42-54 Vdc
|
42-54 Vdc
|
42-54 Vdc
|
|
Max.charging voltage
|
54 Vdc
|
54 Vdc
|
54 Vdc
|
|
Max.charging and discharging current
|
100A
|
100A
|
100A
|
|
Max Power
|
4800 W
|
7200 W
|
9600 W
|
|
Life time(25°C)
|
10 years
|
||
|
Life cycles(80% DOD, 25°C)
|
6000 Cycles
|
||
|
Storage time / temperature
|
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
|
||
|
Operation temperature
|
-20°C to 60°C @60+/-25% Relative Humidity
|
||
|
Storage temperature
|
0°C to 45°C @60+/-25% Relative Humidity
|
||
|
Lithium Battery Standard
|
UL1642, IEC62619, UN38.3, ROHS,CE-EMC
|
||
|
Enclosure protection rating
|
IP21
|
||
|

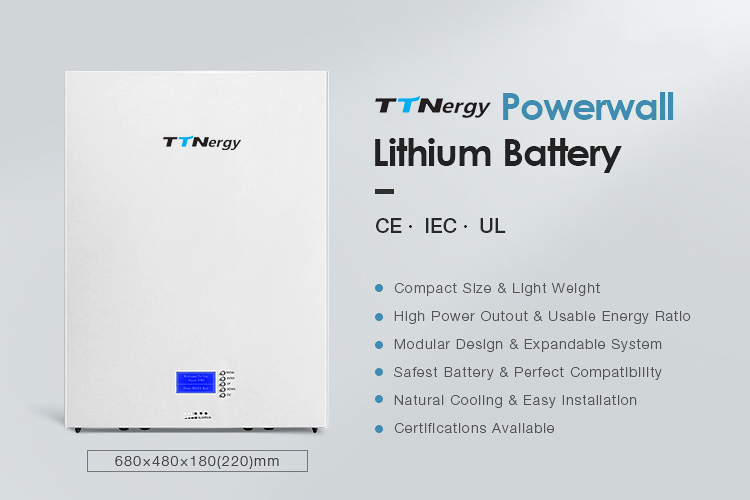

Dimensions(L×W×H)
|
680×480×180(220)mm
|
||
|
Weight
|
58.5 kg
|
75 kg
|
96.5 kg
|

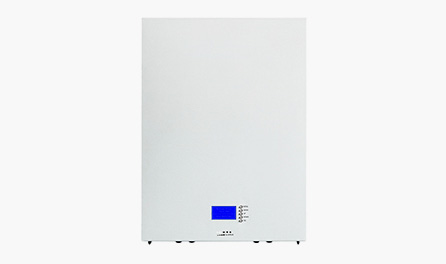

Compact Size
Modular Design
Modular Design Gives The End Customers The Power Of Choice Of Capacity Deliver Up To 140KW With Single Max Module (10.24KWh) At 14pcs Parallel Connection. Lifepo4 Battery
Long Life and Safety
Vertical Industry Integration Ensures More Than 6000 Cycles With 80% DoD Safe Lithium Iron Phosphate Battery Cell.
Wide Compatibility
TTNergy is Proud To Announce That Our Modules Can Cooperate With Most Inverters On The Market. More Brands Are Coming Soon…

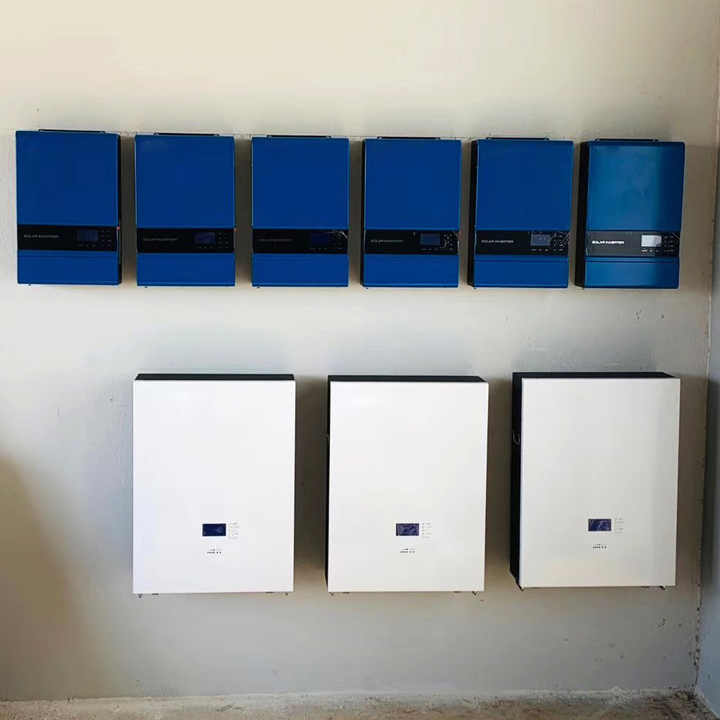

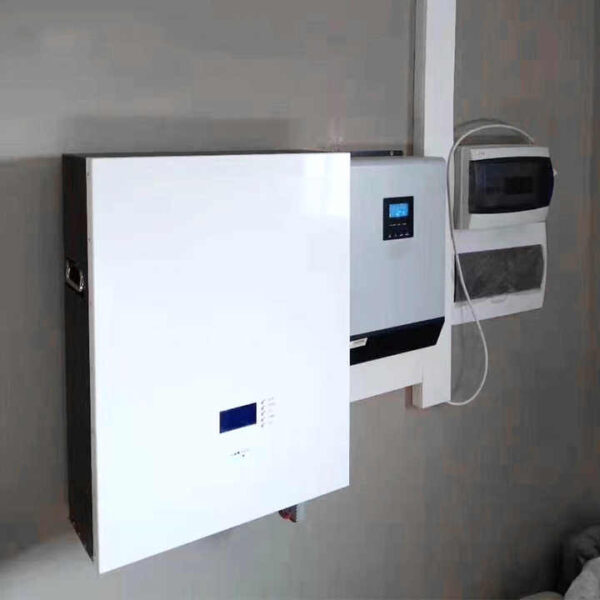

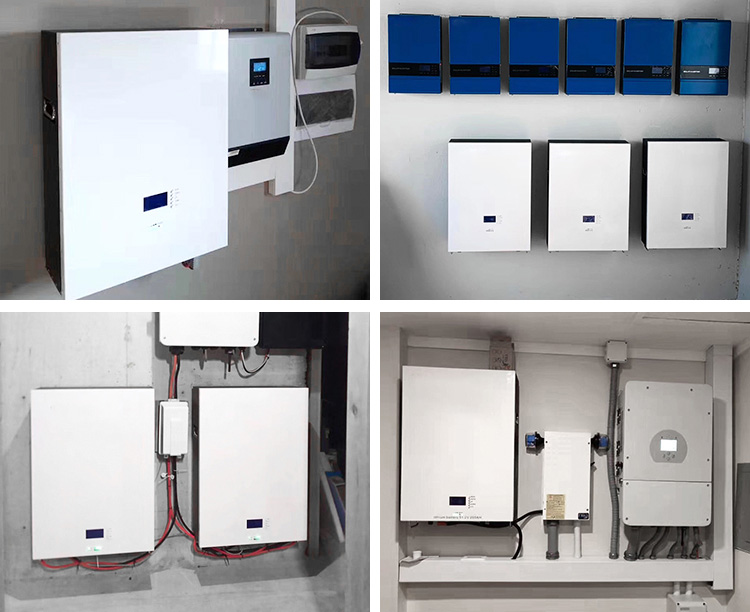

Projects

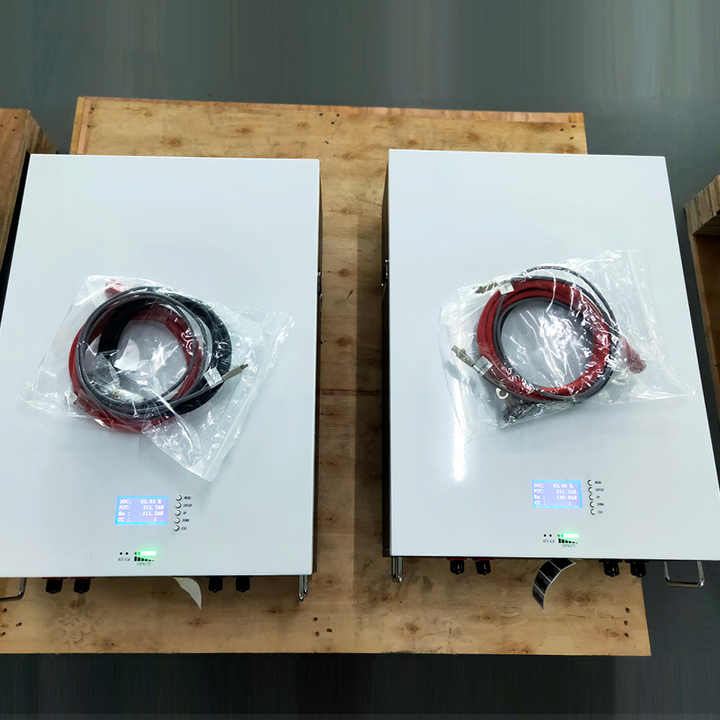

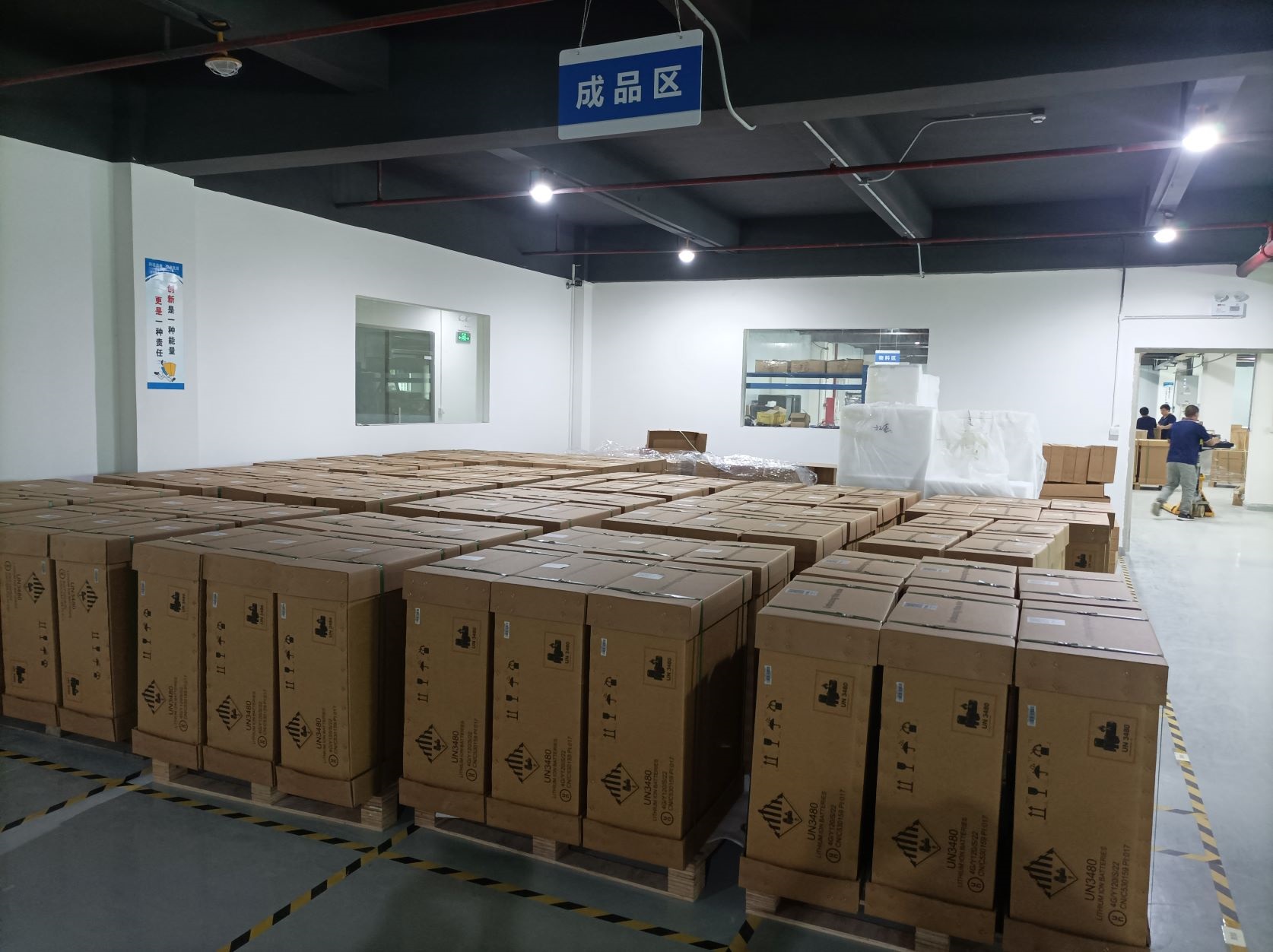

Product packaging
