LiFePO4 12v 100AH to 400AH lithium ion Energy Storage Battery
LiFePO4 12v 100AH to 400AH lithium ion Energy Storage Battery
Additional information
| Cycle | >3000 times |
|---|---|
| Product Size(cm) | 52.1*23.8*21.8cm |
| Type | Li-Ion/lithium/lifepo4 |
| The discharge rate | 0.5C |
| IP Rating | IP67 |
Product Information
TTN Li-FePo4 Lithium-ion Battery
TTN lithium energy storage battery uses a long working life LiFePO4 battery, and high-performance BMS to protect and manage the battery system, it has wider usage and longer life than a traditional battery.
TTN-SBT 12V/24V/48V-12Ah/30Ah/50Ah/100Ah/130Ah/200Ah
features:
※ High power, friendly interface, free combination
※ High-quality battery cell, the precise combination
※ BMS customization supported
※ IP67
Application area:
※Energy storage system, control system, alarm system, power system, database
※Emergency lighting system, emergency power supply, UPS
※ Telecommunication, communication, firefighting system
BMS Protection:
※Over Current
※Short Circuit
※Over Voltage
※High Temperature
※Low Voltage
|
Capacity
|
12V12AH
|
12V30AH
|
12V50AH
|

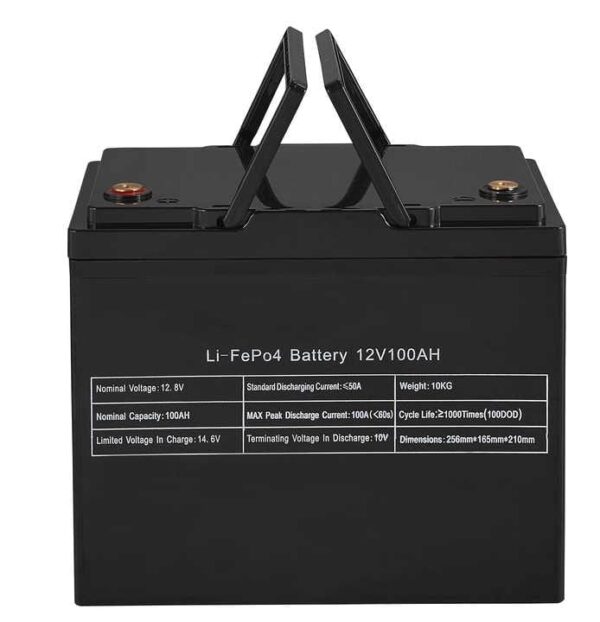

12V100AH
|
|
Continuous Discharge Current
|
8A
|
15A
|
25A
|
50A
|
|
Peak Protection Current
|
16A
|
30A
|
50A
|
100A
|
|
Working Voltage
|
10-14.6V
|
10-14.6V
|
10-14.6V
|
10-14.6V
|
|
Standard Voltage
|
12.8V
|
12.8 V
|
12.8V
|
12.8V
|
|
Continuous Work Current
|
8A
|
15A
|
25A
|
50A
|
|
Max Charging Voltage
|
14.6V
|
14.6V
|
14.6V
|
14.6V
|
|
Suggested DOD Model
|
80%
|
80%
|
80%
|
80%
|
|
Size(mm)
|
151*99*94
|
195*133*171
|
229*138*208
|
256*165*210
|
|
Weight
|
1.5kg
|
3.2kg
|
4.5kg
|
10kg
|
|
Capacity
|

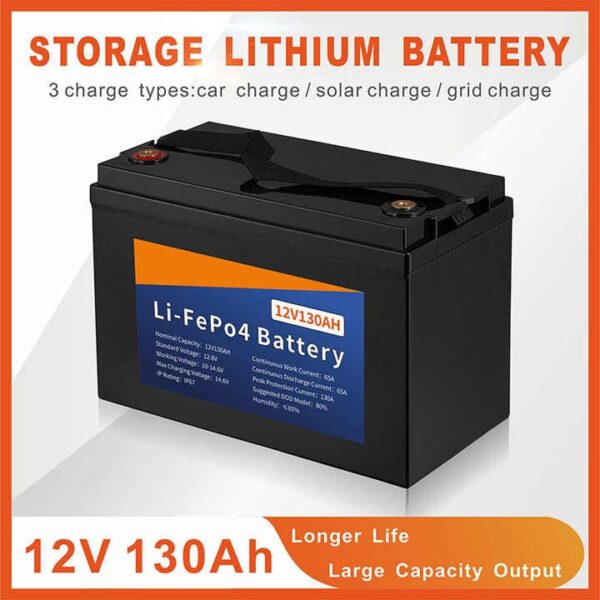

12V130AH
|

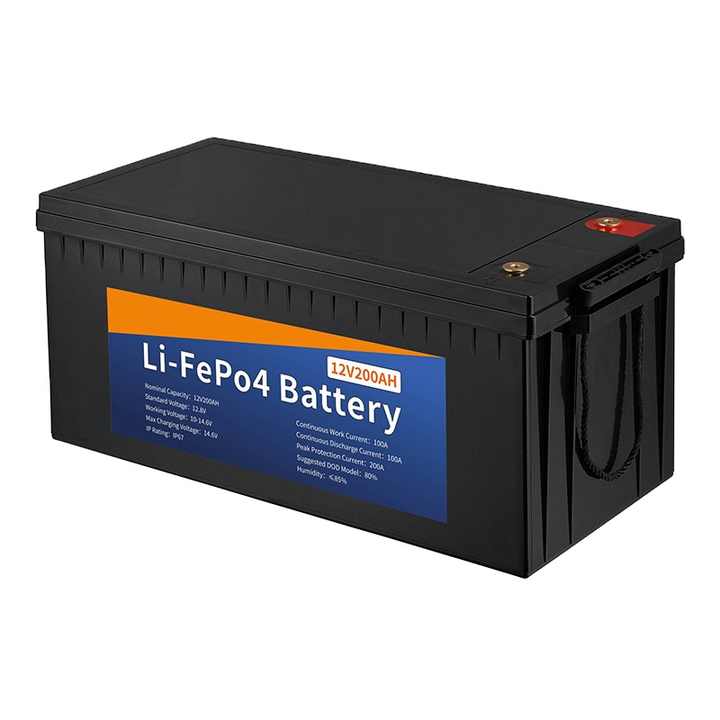

12V200AH
|
24V100AH
|
48V100AH
|
|
Continuous Discharge Current
|
65A
|
100A
|
50A
|
50A
|
|
Peak Protection Current
|
130A
|
200A
|
100A
|
100A
|
|
Working Voltage
|
10-14.6V
|
10-14.6V
|
20-29.2V
|
37.5-54.75V
|
|
Standard Voltage
|
12.8V
|
12.8V
|
25.6V
|
48V
|
|
Continuous Work Current
|
65A
|
100A
|
50A
|
50A
|
|
Max Charging Voltage
|
14.6V
|
14.6V
|
29.2V
|
54.75V
|
|
Suggested DOD Model
|
80%
|
80%
|
80%
|
80%
|
|
Size(mm)
|
330*172*215
|
521*238*218
|
345*190*245
|
520*267*220
|
|
Weight
|
13kg
|
19kg
|
22kg
|
33kg
|
|
Circle Times
|
≥3000 times
|
|||
|
Humidity
|
≤85%
|
|||
|
Cooling Type
|
Natural Cooling
|
|||
|
IP Rating
|
IP67
|
|||
|
Warranty
|
5 years
|
|||
|
Material Of The Shell
|
ABS
|
|||
|
Work Temperature
|
-20°C~60°C
|
|||
|
Material Of The Cell
|
New A+ LiFePO4 Prismatic cell / Cylinder cell / Pouch cell
|
|||
|
Battery Protection
|
Over-current/over voltage/short circuit/low voltage/high temperature
|
|||
|
Battery management system
|
BMS
|
|||

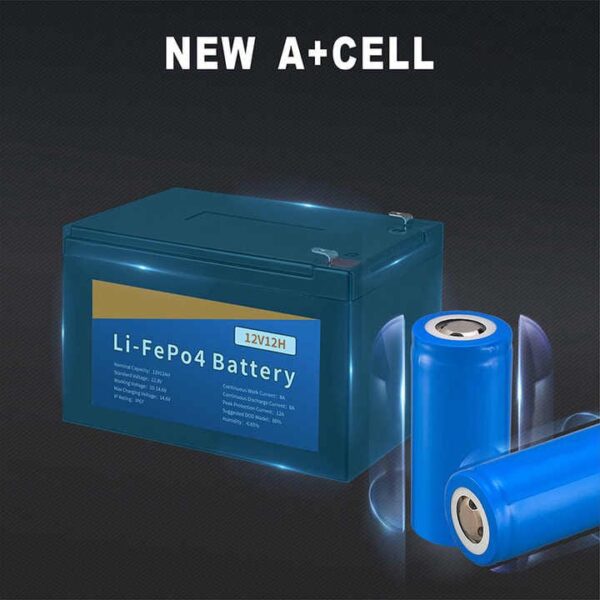

Cylinder cell
12V12Ah / 12V30Ah / 12V50Ah

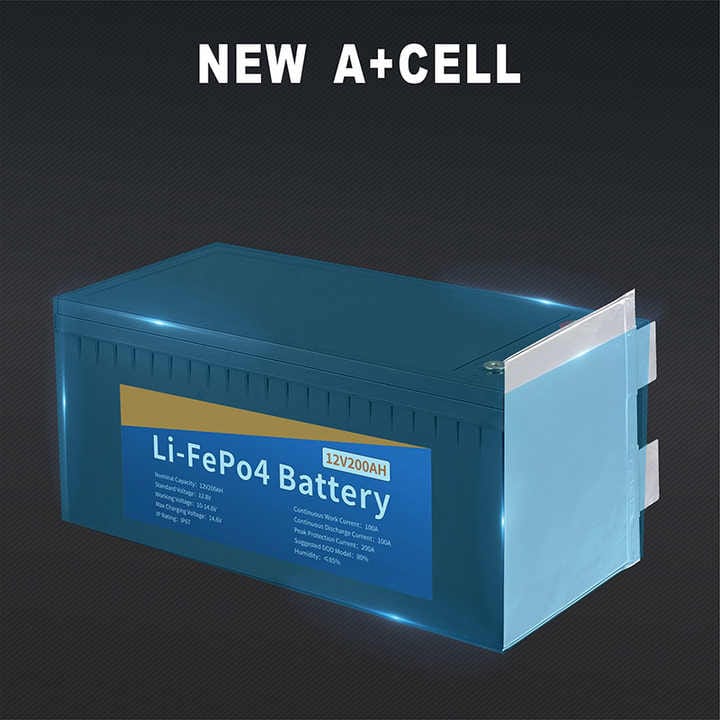

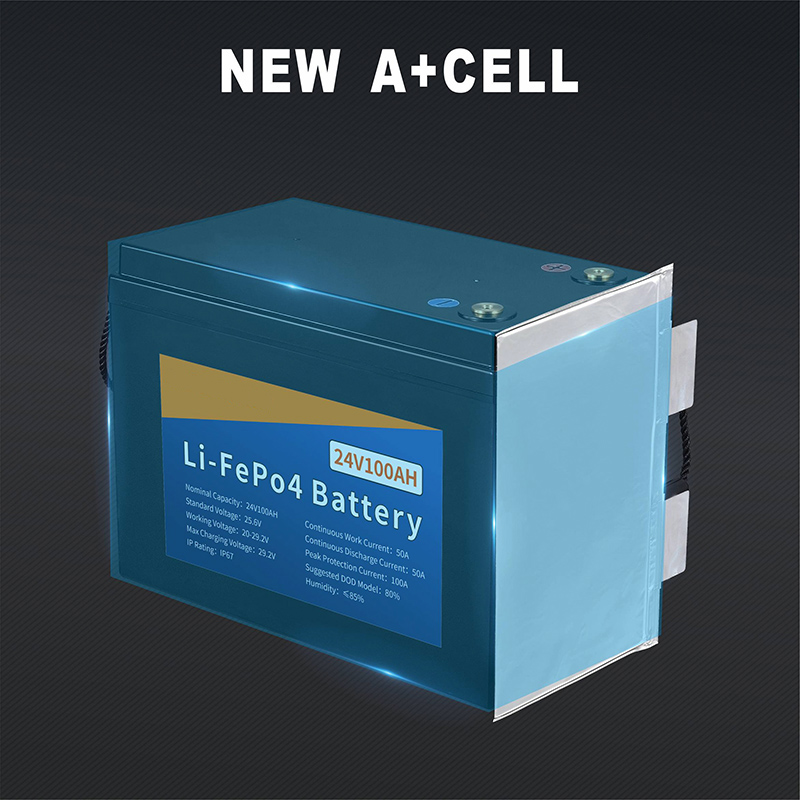

Pouch cell
12V100Ah / 12V130Ah /12V200Ah / 24V100Ah / 48V100Ah
