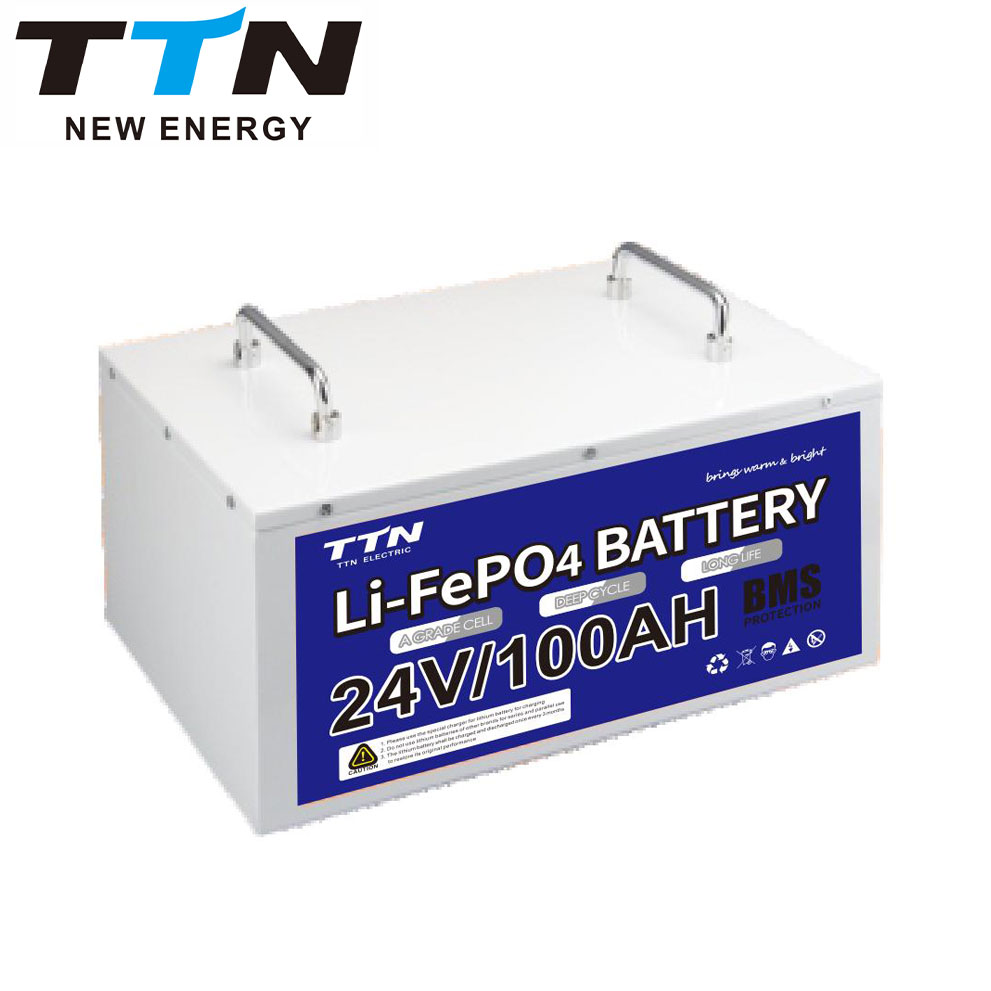

TTNergy Lithium Energy storage battery in metal boxes 12V/24V/48V

TTNergy Lithium Energy storage battery in metal boxes 12V/24V/48V

Additional information

Cooling Type

Natural Cooling
Warranty

5 years
Humidity

<85%
Inquiry

Product Information

Lithium energy storage battery use long working life LiFeP04 battery,and high performance BMS to protect and manage the battery system, it has wider usage and longer life than traditional battery.

Model METBOX10012 METBOX20012 METBOX10024 METBOX20024 METBOX10048 METBOX20048
Single module capacity 12V100AH 12V200AH 24V100AH 24V200AH 48V100AH 48V200AH
Continuous Discharge Current 50A 100A 50A 100A 50A 100A
Peak Protection Current 100A 200A 100A 200A 100A 200A
Working Voltage 10-14.6V 10-14.6V 20-29.2V 20-29.2V 37.5-54.75V 37.5-54.75V
Standard Voltage 12.8V 12.8V 25.6V 25.6V 48V 48V
Continuous Work Current 50A 100A 50A 100A 50A 100A
Max Charging Voltage 14.6V 14.6V 29.2V 29.2V 37.5V 37.5V
Suggested DOD Model 80% 80% 80% 80% 80% 80%
Size(mm) 345*310*275 475*350*275 475*350*275 525*490*275 525*490*275 560*520*320
Weight 12.5kg 22kg 22kg 40kg 40kg 75kg
Humidity <85%
Cooling Type Natural Cooling
Warranty 5 years

Enquiry more about: TTNergy Lithium Energy storage battery in metal boxes 12V/24V/48V
