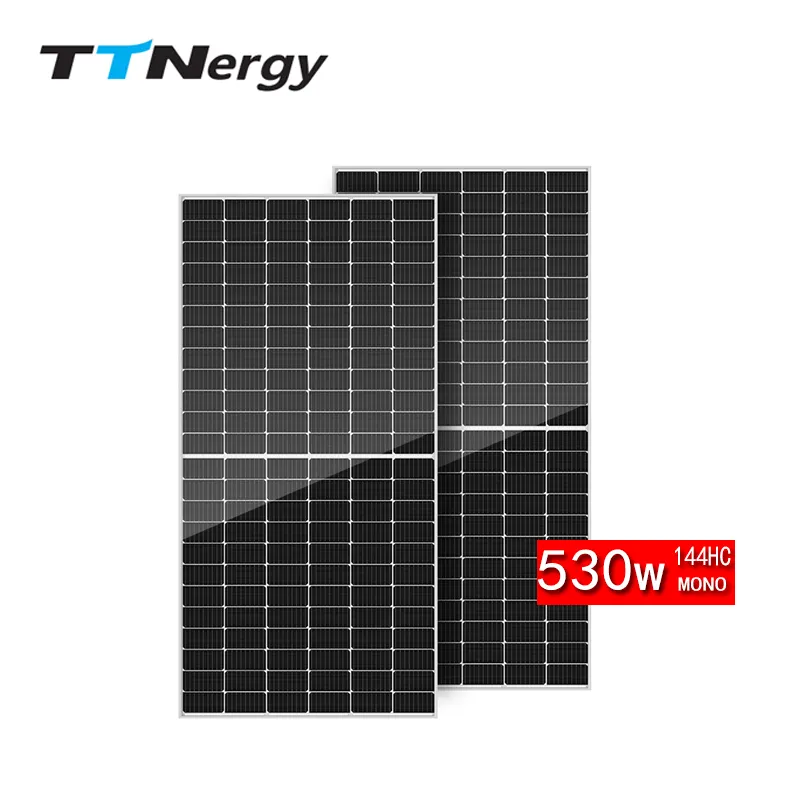

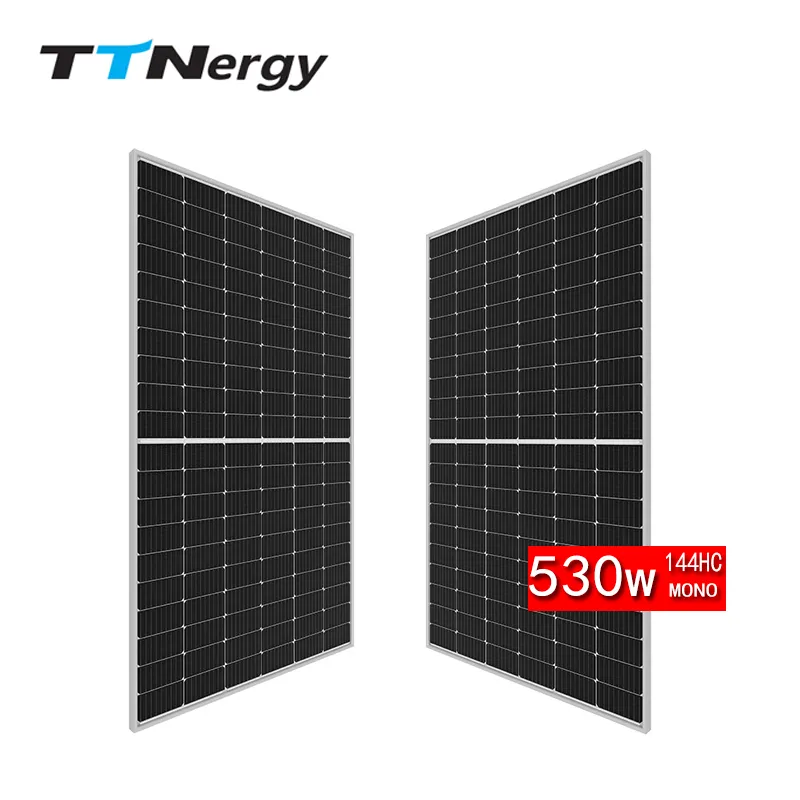

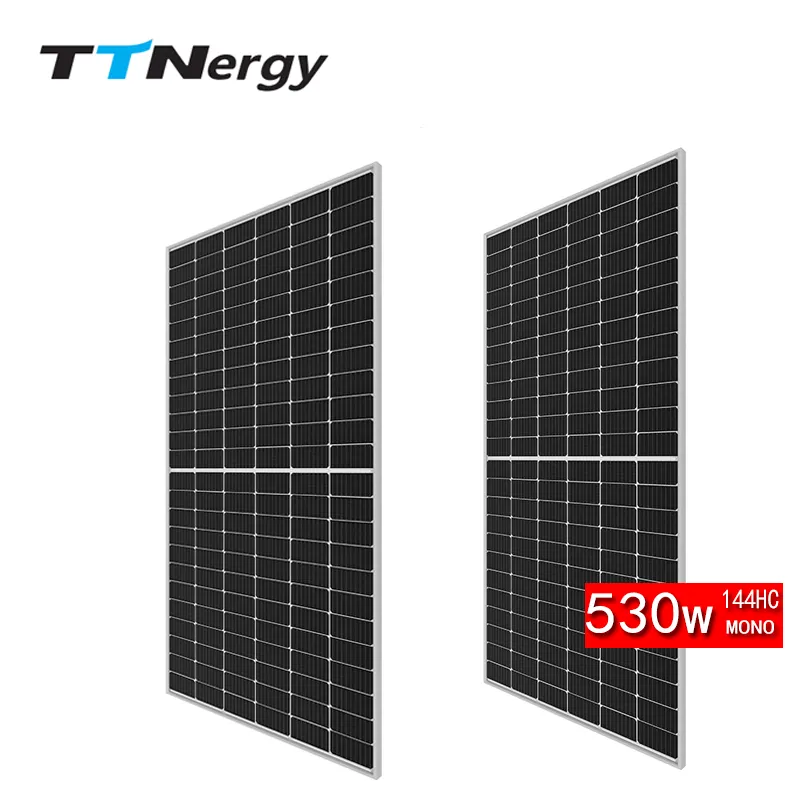

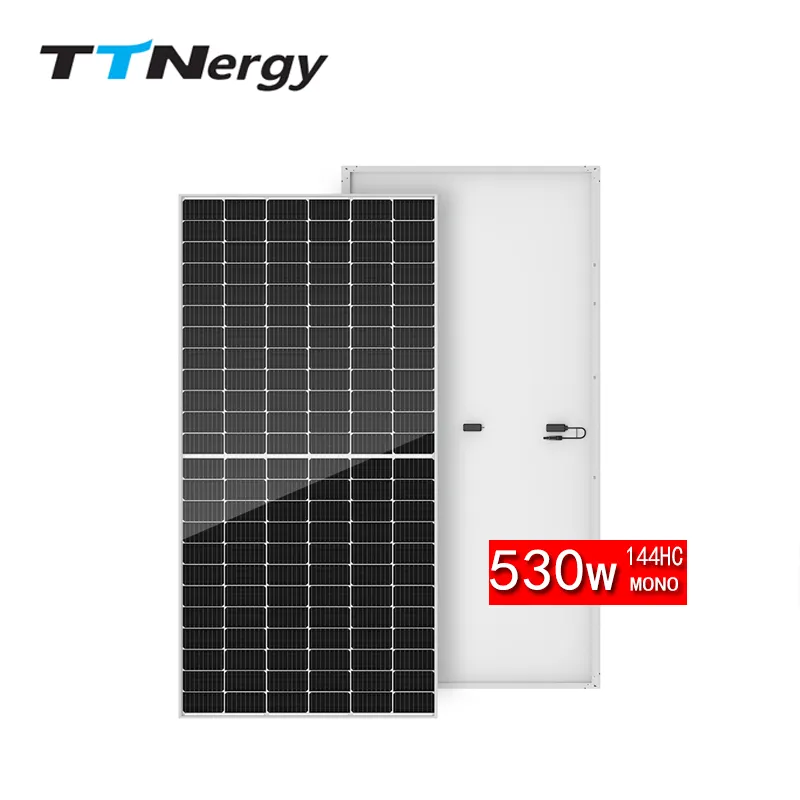

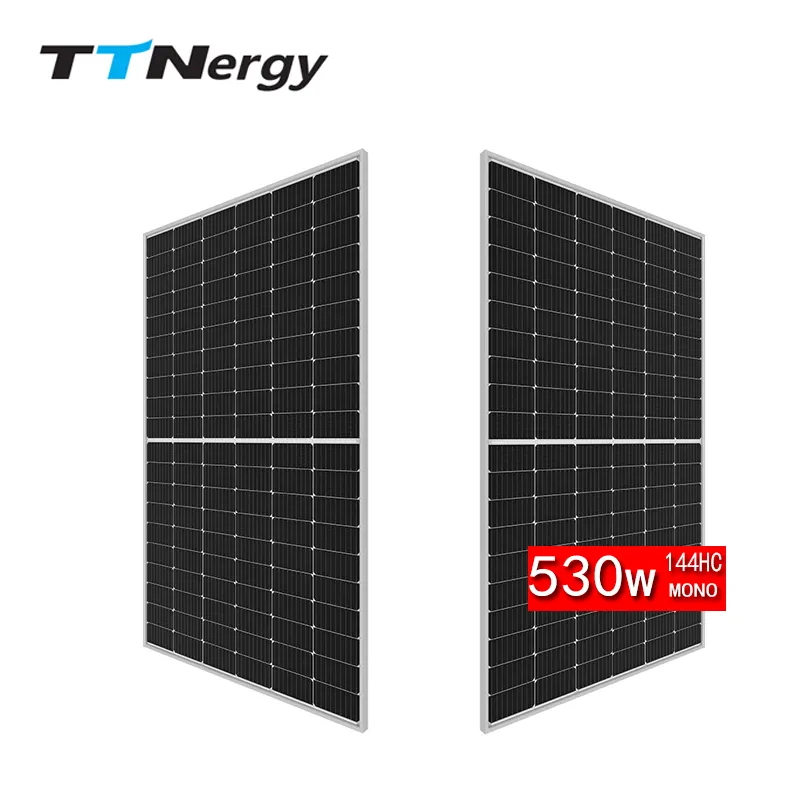

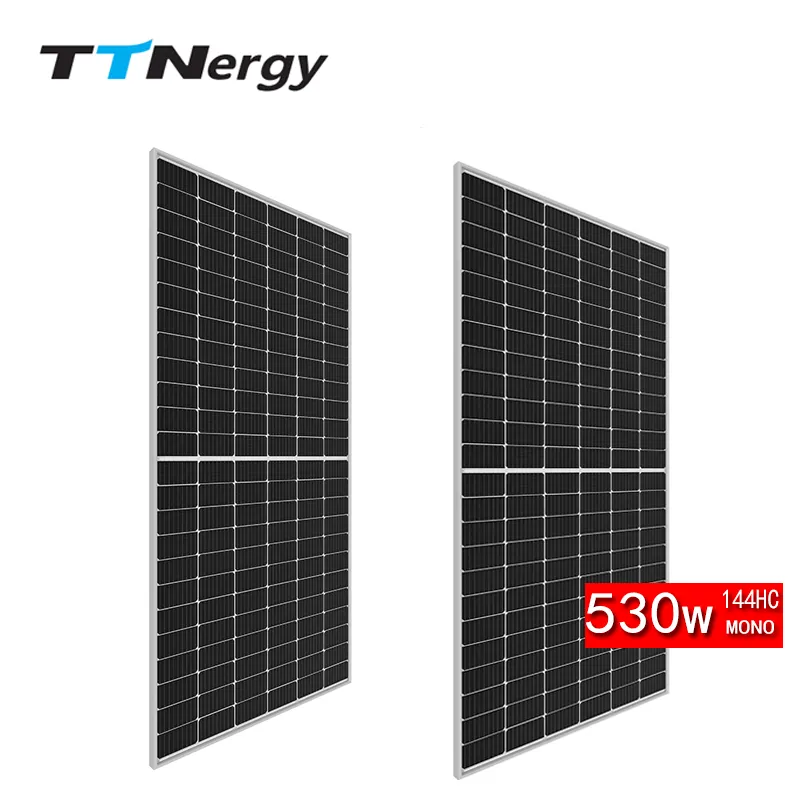

High Efficiency Monocrystalline Solar Panels 48v 540w 550w 560w

Additional information

Type	PERC, Half Cell
Cell size	182mmx182mm
Panel Efficiency	21.67%
Warranty	25 years
Output Cables	4.0mm2, 300/400mm in length

Leave your information to get the lowest quotation on the Internet

Product Information

Solar Panel Glass

* High-transmittance and low reflection * Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength * High flatness

Solar Panel Cell

* High output-power: conversation efficiency is 18%-22% * High shunt-resistance: adapt the several environmental conditions. * Bypass diode minimizes the power drop by shade * Excellent low light effect * Low breakage rate

Frame

* Aluminium extrusion profile with prompt delivery * Available in customized surface finish * Excellent material for smooth and subtle edges * Extrusion for construction and other industrial purposes * Thickness variable according special request

Junction Box

* High current and voltage carrying capacity * Simple, quick and safe effective field assembly * IP 68 it can be used in the outdoor iron environment * Expansion connector are available for future requirement * Double permanent connection are adapted for all of the connecting.

Module	TTN 530W	TTN 535W	TTN 540W	TTN 545W	TTN 550W
Peak Power Watts(Pmax/W)	530	535	540	545	550
Power Output Tolerance(W)	0~+5
Maximum Power Voltage(Vmp/V)	49.20	49.35	49.50	49.65	49.80
Maximum Power Current(Imp/A)	13.71	13.78	13.85	13.92	13.98
Open Circuit Voltage(Voc/V)	41.35	41.50	41.65	41.80	41.95
Short Circuit Current(Isc/A)	12.82	12.90	12.97	13.04	13.12
Module Efficiency(%)	20.7	20.9	21.1	21.3	21.5
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5. *Measuring Tolerance: ±3%.

Monocrystalline Solar Panels for sale panels have a higher efficiency rate than other types of solar panels, making them more cost-effective in the long run. They are also more space-efficient, allowing for maximum energy production in a limited area. However, their higher cost may make them less accessible to some consumers. The panels are produced by cutting a single, pure silicon crystal into thin wafers, which are then assembled into the final panel. This manufacturing process results in a highly uniform and pure material, which allows for greater efficiency and durability. While monocrystalline panels are more expensive than other types of solar panels, their longevity and efficiency make them a popular choice for those looking to invest in long-term solar energy solutions.

Monocrystalline Solar Panels for sale, visit our website
