Hybrid Inverter Pure Sine Wave MPPT Off /On Grid solar Inverter For Solar Energy System

Additional information

Application	Home
Solar Panel Type	Monocrystalline Silicon, Polycrystalline Silicon
Battery Type	Lead-Acid, Lithium Ion
Controller Type	MPPT
Mounting Type	Ground Mounting
Certificate	CE/ROHS

Product Information

TTN Hybrid Inverter

An On/Off-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

TTN-MPS-H/TTN-MPS-HP

Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

•High efficiency pure sine wave inverter(PF=1);
• Wide PV input range(120Vdc–500Vdc)110A MPPT SCC;
•Surges to 2X continuous power for 5 seconds for motor loads.
• Intelligent functionality enables utility and solar input prioritication
•Wide utility input range(90Vac–280Vac)for unreliable grid even
• In the most challenging environments.
• Field serviceable with replacement boards and spare parts.
• Monitor,troubleshoot,or communication with USB/RS232.
•System configures quickly into compact,wall-mounted system.
• Working without batteries in sun day

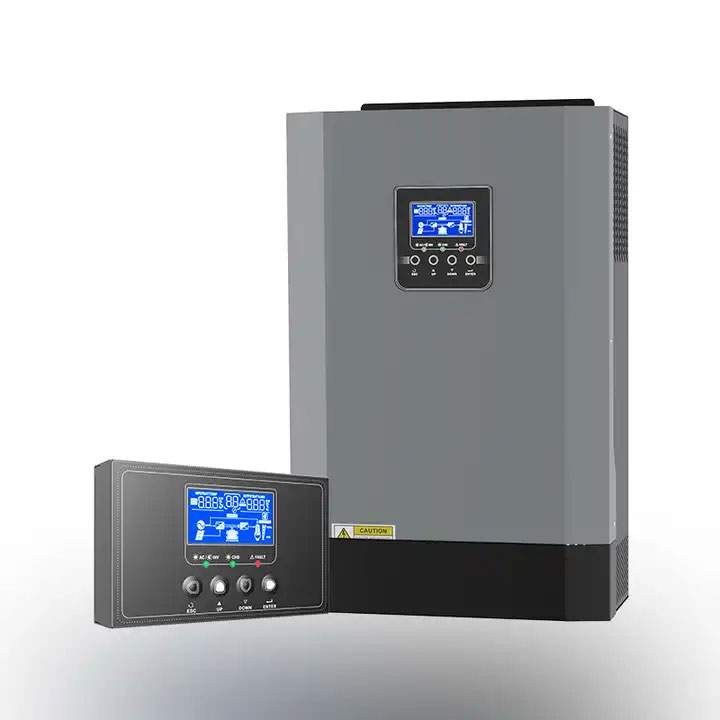

• Remote LCD panel(Optional)
