48v Off Grid Solar Hybrid Inverter 5kW to 9kW Single Phase Solar Panel Inverter Price
48v Off Grid Solar Hybrid Inverter 5kW to 9kW Single Phase Solar Panel Inverter Price
Additional information
| Size | 100mm*300mm*440mm |
|---|---|
| Type | DC/AC Inverters |
| Weight | 12KG |
| Open Circuit Voltage | 120V-450VDC |
| Operating temperature range | -15°C to 55°C |
| Humidity range | 5% to 95% (Conformal coating protection) |
Product Information
TTN Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity altogether.
The Grid-interactive Hybrid inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

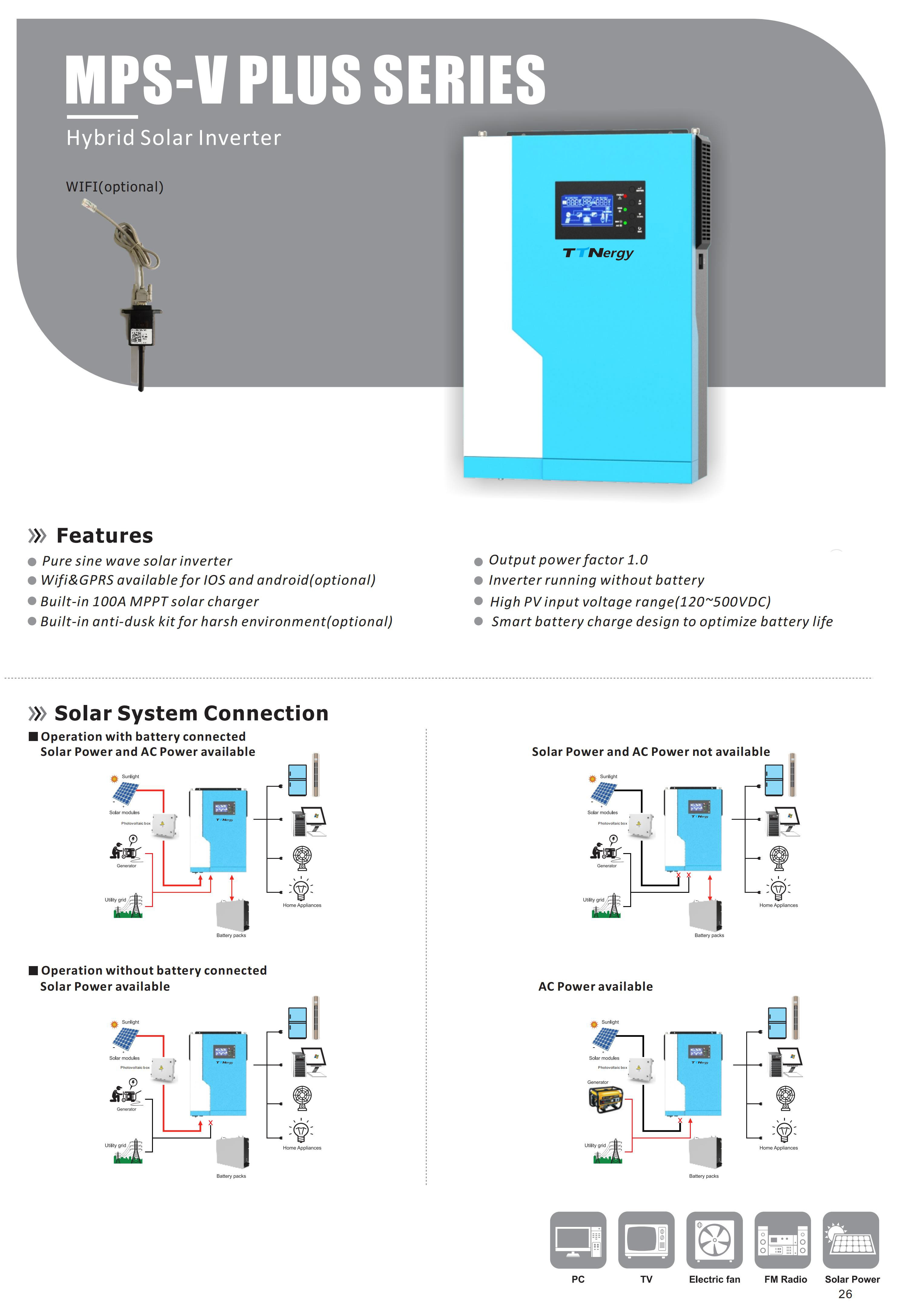

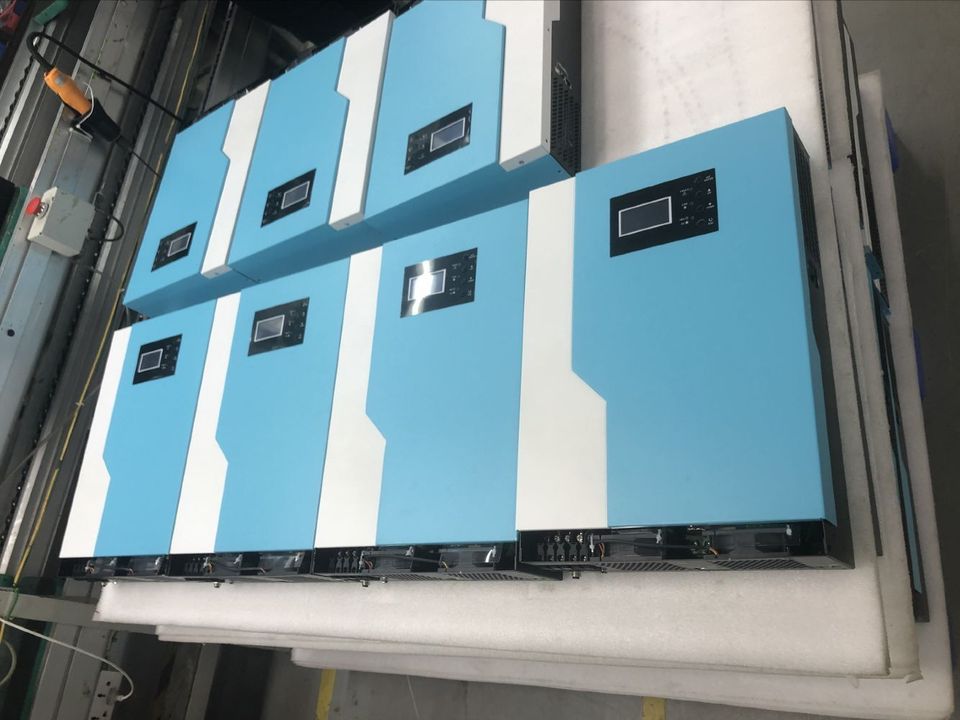

TTN-MPS-V PLUS 3.5/5KW
Higher yields / Safe & Reliable / Smart / User-friendly

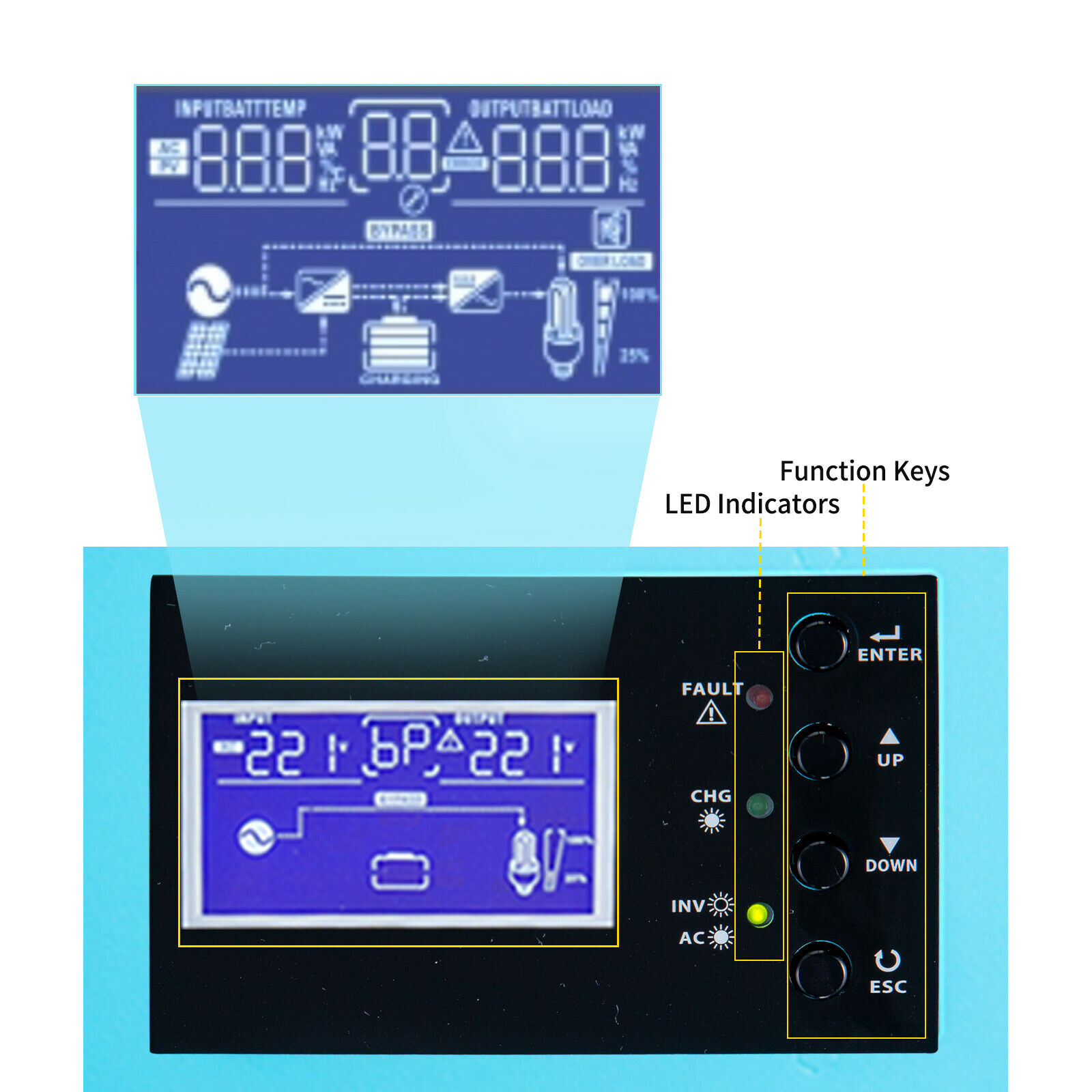

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
High-efficiency pure sine wave inverter (PF=1)

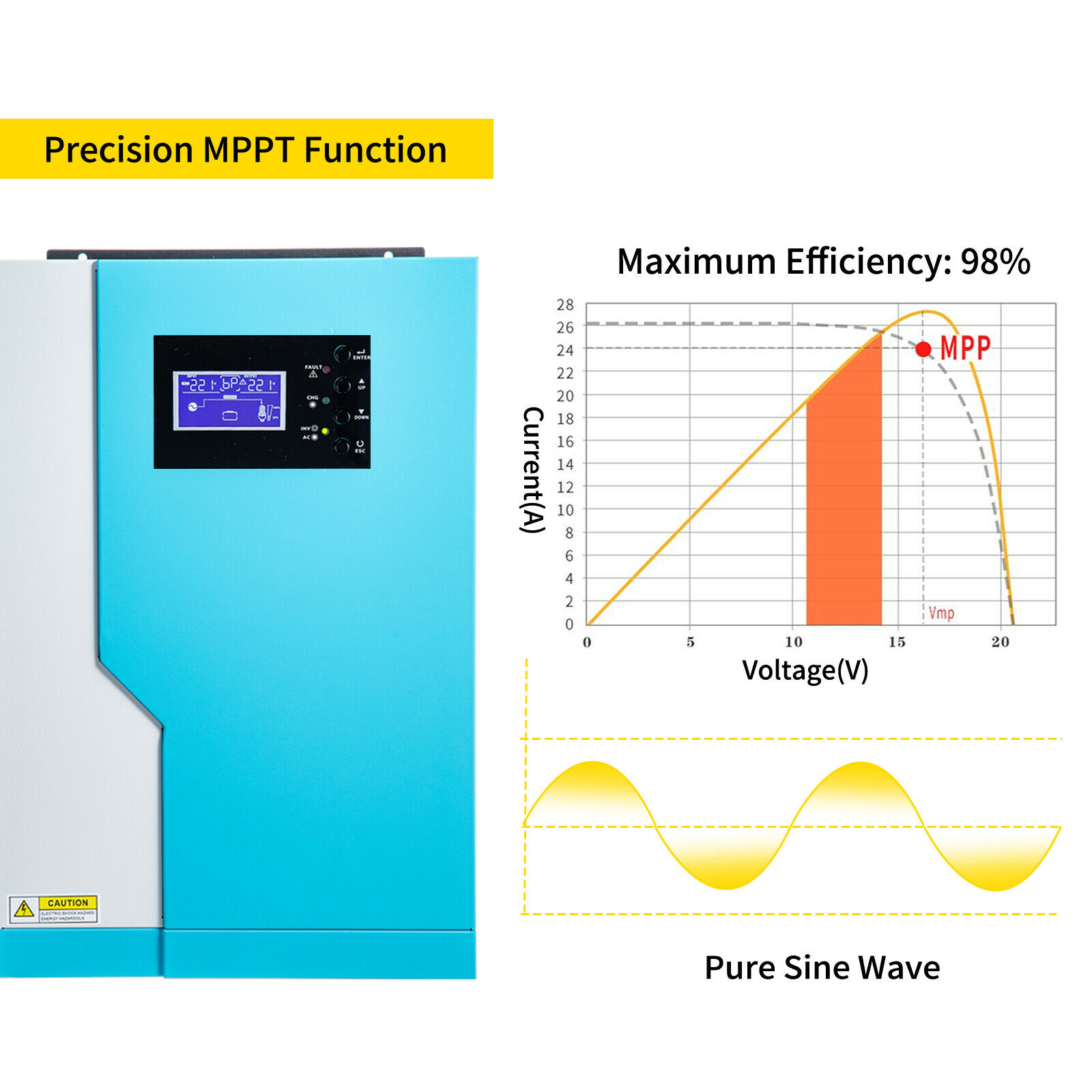

Wide PV input range (120VDC-500VDC) 100A MPPT SCC Intelligent functionality enables utility and solar input periodization Wide utility input range (90Vac-280Vac) for unreliable gird even In the most challenging environments Field serviceable with replacement boards and spare parts Monitor, troubleshoot or communication with RS232/RS485. Working with batteries Anti-dusk kit for harsh environment(optional) PV and electricity complementary WiFi Monitoring Function (optional) Use with lithium batteries
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
For details, please refer to the manual recommendation or consult online customer service.
|
Model
|
TTN-MPS-V PLUS 3.5kW
|

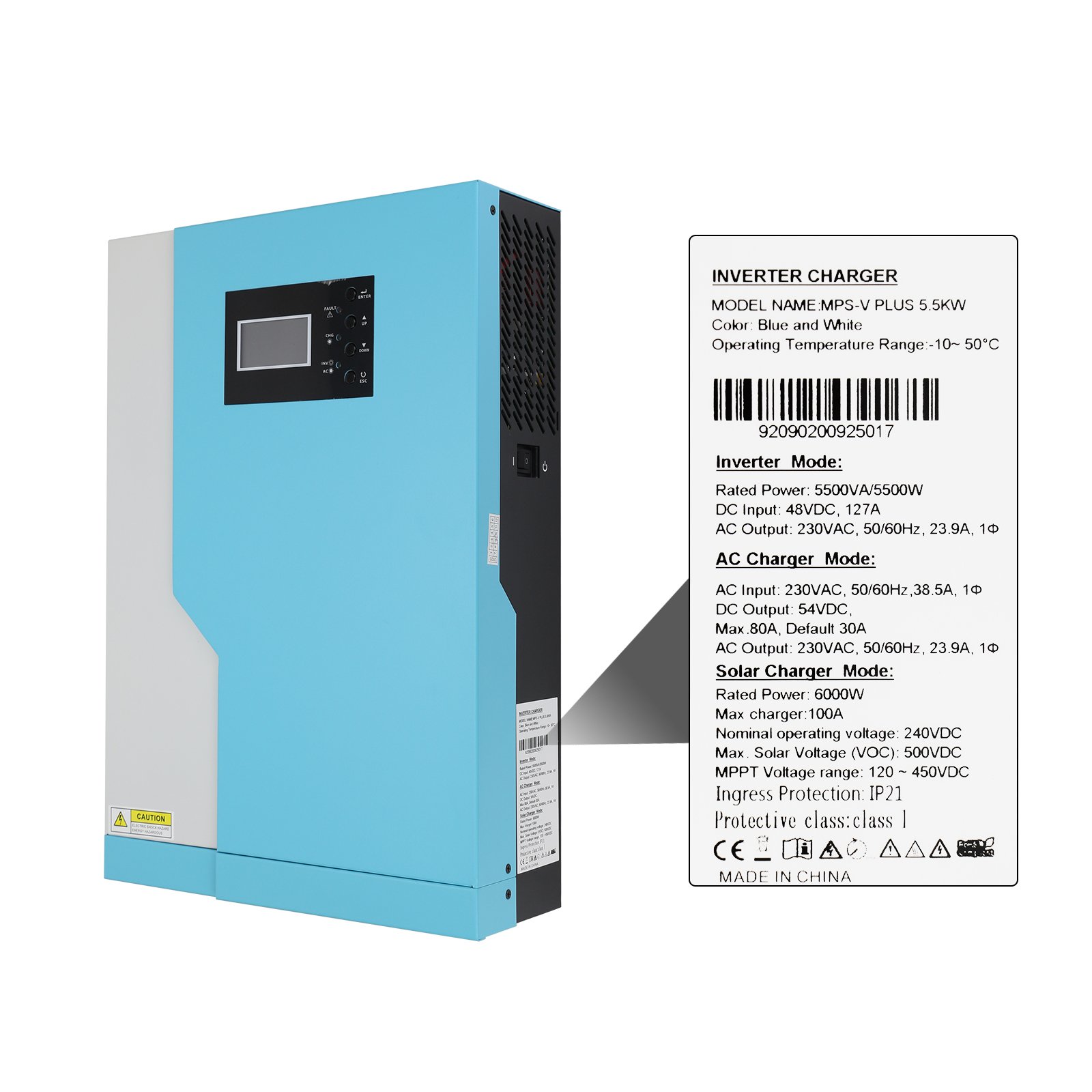

TTN-MPS-V PLUS 5.5KW
|
|
Rated Power
|
3500VA/3500W
|
5500VA/5500W
|
|
Input
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170～280VAC(For Personal Computers)
|
|
|
90～280VAC(For Home Appliances)
|
||
|
Frequency Range
|
50Hz/60Hz(Auto sensing)
|
|
|
Output
|
||
|
AC Voltage Regulation(Batt.Mode)
|
230VAC±5%
|
|
|
Surge Power
|
7000VA
|
11000VA
|
|
Efficienc(Peak)PV to INV
|
97%
|
|
|
Efficienc(Peak)Battery to INV
|
94%
|
|
|
Transfer Time
|
10ms(For Pensonal Computers);20ms(For Home Appliances
|
|
|
Battery & AC Charger
|
||
|
Battery Voltage
|
24VDC
|
48VDC
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
33VDC
|
63VDC
|
|
Maximum Charge Current
|
80A
|
80A
|
|
Solar Charger
|
||
|
Maximum PV Array Power
|
5000W
|
6000W
|
|
MPPT Range @ Operating Voltage
|
120～450VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|
|
Maximum Charging Current
|
100A
|
100A
|
|
Maximum Efficiency
|
98%
|
|
|
Physical
|
||
|

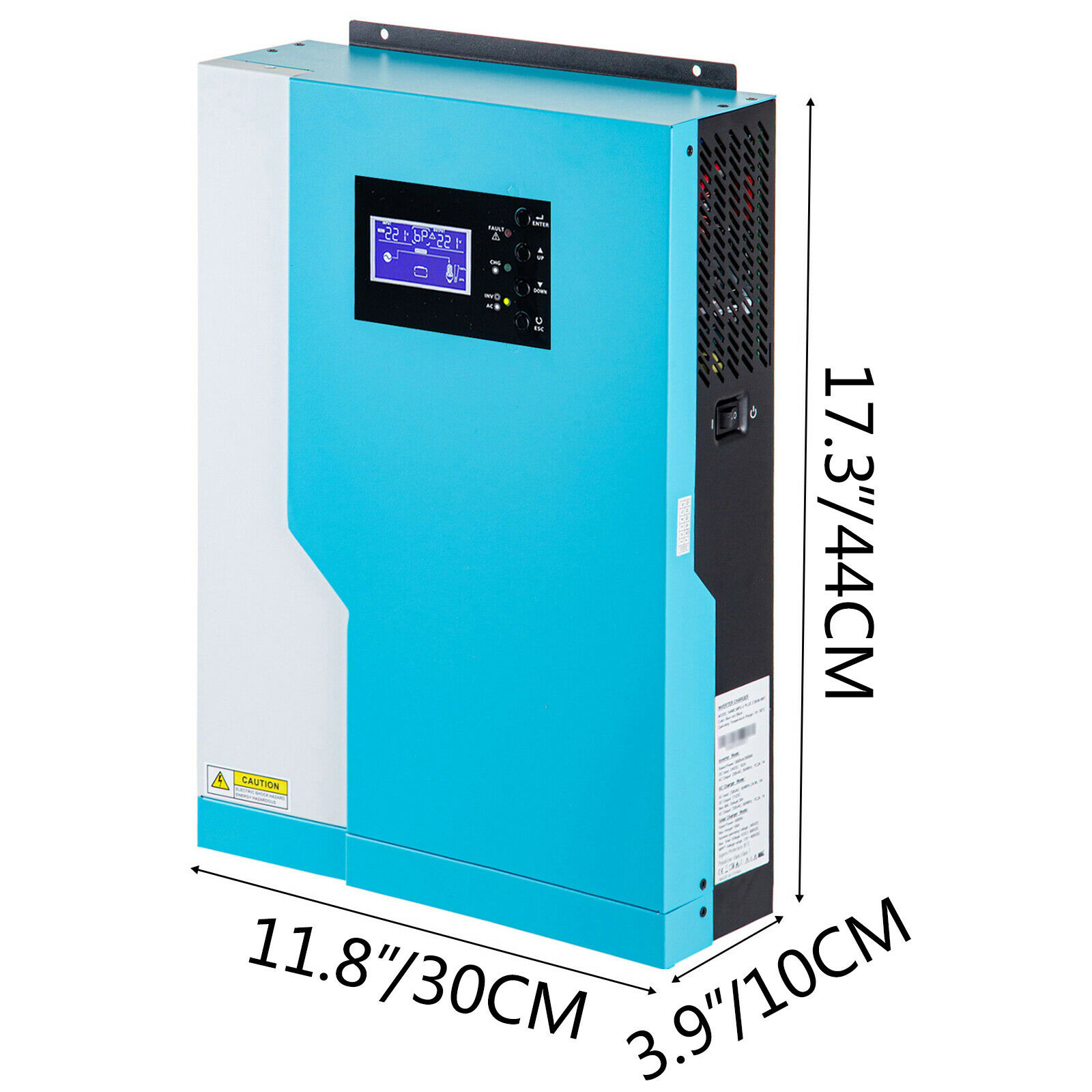

Dimension,D*W*H(mm)
|
100*300*440
|
|
|
Net Weight(kgs)
|
11
|
12
|
|
Communication Interface
|
USB/RS232/GPRS/WIFI
|
|
|
Operating Environment
|
||
|
Mumidity
|
5% to 95% Relative Humidity(Non～condensing)
|
|
|
Operating Temperature
|
0℃～55℃
|
|
|
Storage Temperature
|
-15℃～60℃
|
|
NOTE 1: This is a wide voltage Hybrid inverter. The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.

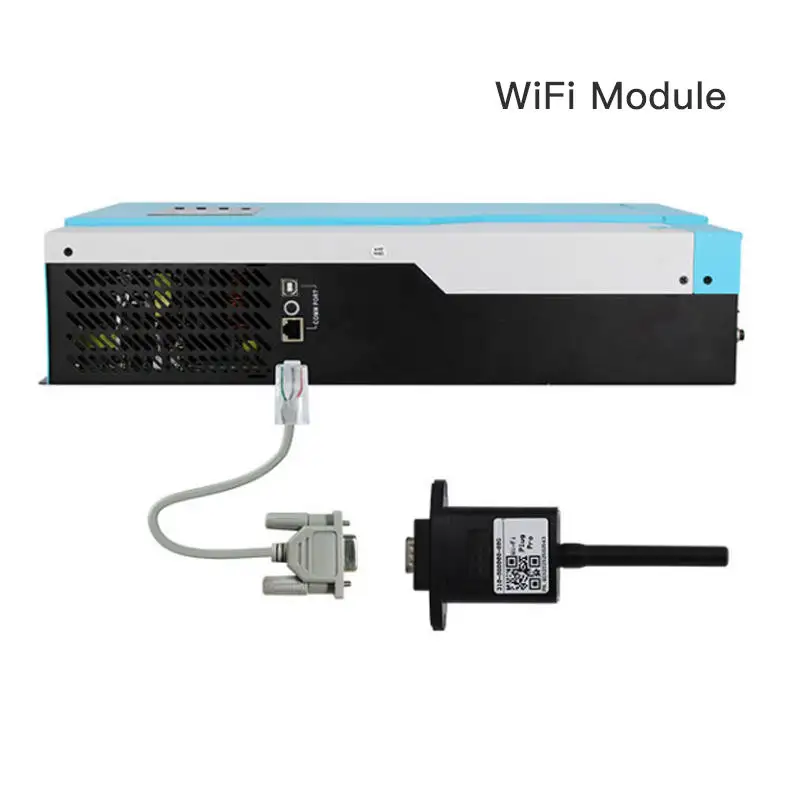

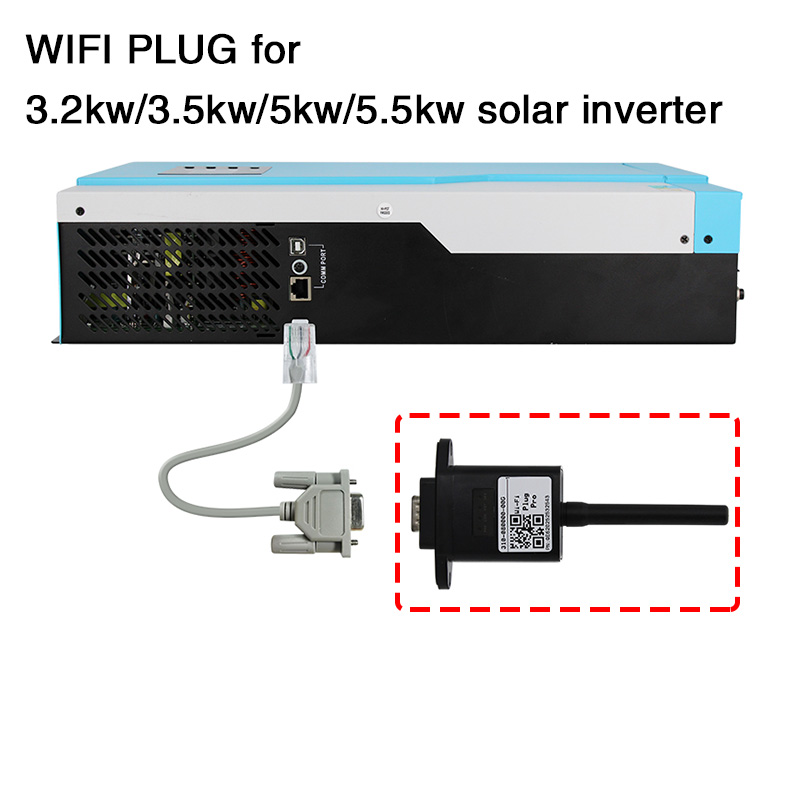

NOTE 2: This Hybrid Inverter supports the WIFI function but without the WIFI Monitor.
