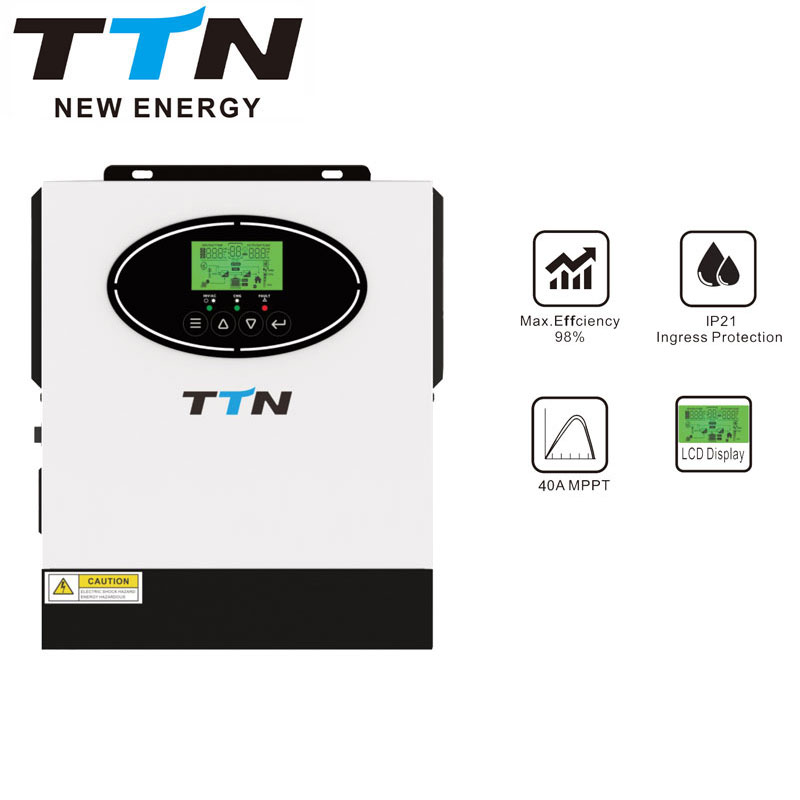

TTNergy Gas Series Off Grid Solar Inverter 1000W/1500W
TTNergy Gas Series Off Grid Solar Inverter 1000W/1500W
Additional information
| Dimension, D*W*H(mm) | 290*240*91 |
|---|---|
| Carton Dimension,D X W XH(mm) | 340*295*145 |
| Humidity | 5% to 95% Relative Humidity(Non ~ condensing) |
| Operating Temperature | -10°C~50°C |
| Compliance Safety | CE |
Product Information
Features:
● Pure sine wave solar inverter
● Built-in40A MPPT solar charger
● PV input voltage range 20-150VDC (for 1000W), 30-150VDC(for 1500W)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● meet rich customized demands
● Solar energy is provided directly to the load first
| Model | GAS-1000-12 | GAS-1500-24 |
| Battery Voltage | 1000W/1000VA | 1500W/1500VA |
| AC INTPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
| 90~280VAC(For Home Appliances) | ||
| Frequency Range | 50 Hz/60Hz(Auto sensing) | |
| AC OUTPUT | ||
| AC Voltage Regulation | 230VAC±5% | |
| Surge Power | 2000VA | 3000VA |
| Efficiency(Peak)PV to INV | 98% | |
| Efficiency(Peak)Battery to INV | 94% | |
| Transfer Time | 10 ms | |
| BATTERY | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 32VDC |
| SOLAR CHARGER&AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 600W | 1200W |
| MPPT Range @Operating Voltage | 20~150VDC | 30~150VDC |
| Maximum PV Array Open Circuit Voltage solar |
150VDC | |
| Maximum Solar Charge Curren | 40A | |
| Maximum AC Charge Current | 40A | |
| Maximum Charging Current (Solar+AC) |
80A | |
| PHYSICAL | ||
| Dimension,D*W*H(mm) | 290*240*91 | |
| Carton Dimension,DXWXH(mm) | 340*295*145 | |
| Net Weight(kgs) | 3 | 3.5 |
| Gross Weight(kgs) | 3.5 | 4 |
| ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non ~condensing) | |
| Operating Temperature | -10℃~50℃ | |
| Standard | ||
| Compliance Safety | CE | |
Enquiry more about: TTNergy Gas Series Off Grid Solar Inverter 1000W/1500W
