On-Grid Solar Inverter
On-Grid Solar Inverter
Additional information
| Humidity | 5% to 95% Relative Humidity(Non ~ condensing) |
|---|---|
| IP degree | IP21 |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -15℃~60℃ |
Leave your information to get the lowest quotation on the Internet
Product Information
● Working without battery
● High PV input power
● Pure sine wave inverter
● Compatible to mains voltage
● Auto restart while AC is recovering
● Overload/Over temperature/ short circuit protection
● Cold start function
● Dual mppt at 6KW,three mppt at 10KW and 15KW
● Can Run 1.5P motor with 4KW, 3P motor with 6KW, 1.5P+3P motor with 10KW, 3P+3P motor with 15KW
● Full load work with solar only
● Working without battery
● High PV input power
| Model | EVA-4KW | EVA-6KW | EVA-10KW | EVA-15KW |
| Rated Power | 4KVA/4KW | 6KVA/6KW | 10KVA/10KW | 15KVA/15KW |
| Maximum PV Input Power | 4500W | 4500W*2 | 4500W*3 | 4500W*3 |
| Maximum DC Voltage | 500Vdc | |||
| Start-up Voltage /initial Feeding Voltage | 90Vdc/120Vdc | |||
| MPPT Voltage Range | 60-450Vdc | |||
| Number of MPp Trackers /aximum Input Current | 1/18A | 2/18A | 3/18A | 3/18A |
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Voltage Range | 184-2645 VAC or 195 5-253 VAC or 184-264.4 VAC(Selectable) | |||
| Nominal Output Curent | 17A | 26A | 43A | 65A |
| Power Factor | >0.09 | |||
| Maximum Conversion Efficiency(DC/AC) | 97% | |||
| AC Start-up Voltage /Auto Restart Voltage | 120-140VAC/180VAC | |||
| Acceptable input Voltage Range | 90-280 VAC or 170-280 VAC | |||
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | |||
| Maximum AC input Cument | 30A | 40A | 50A | 70A |
| Dimension, D x W x H(mm) | 300x278x106 | 316.83×310.6×107.3 | ||
| Net Weight (kgs) | 4.5 | 4.92 | 5.69 | 6.5 |
| Parallel Function | Yes, 9 units | |||
| Communication Port | RS232(WIFI)CAN(Parallel) | |||
| Humidity | 5% to 95% Relative Humidity(Non~condensing) | |||
| IP degree | IP21 | |||
| Operating Temperature | -10℃~50℃ | |||
| Storage Temperature | -15℃~60℃ | |||
Enquiry more about: On-Grid Solar Inverter
Related Products
Related products
-
Sale!

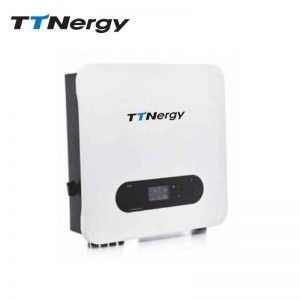

TTNergy Max 11kW Parallel solar inverter
-

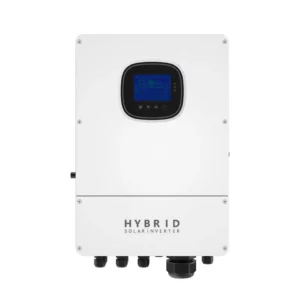

TTNergy On/Off Grid Smart Solar inverter Hybrid AX-72KW
-
