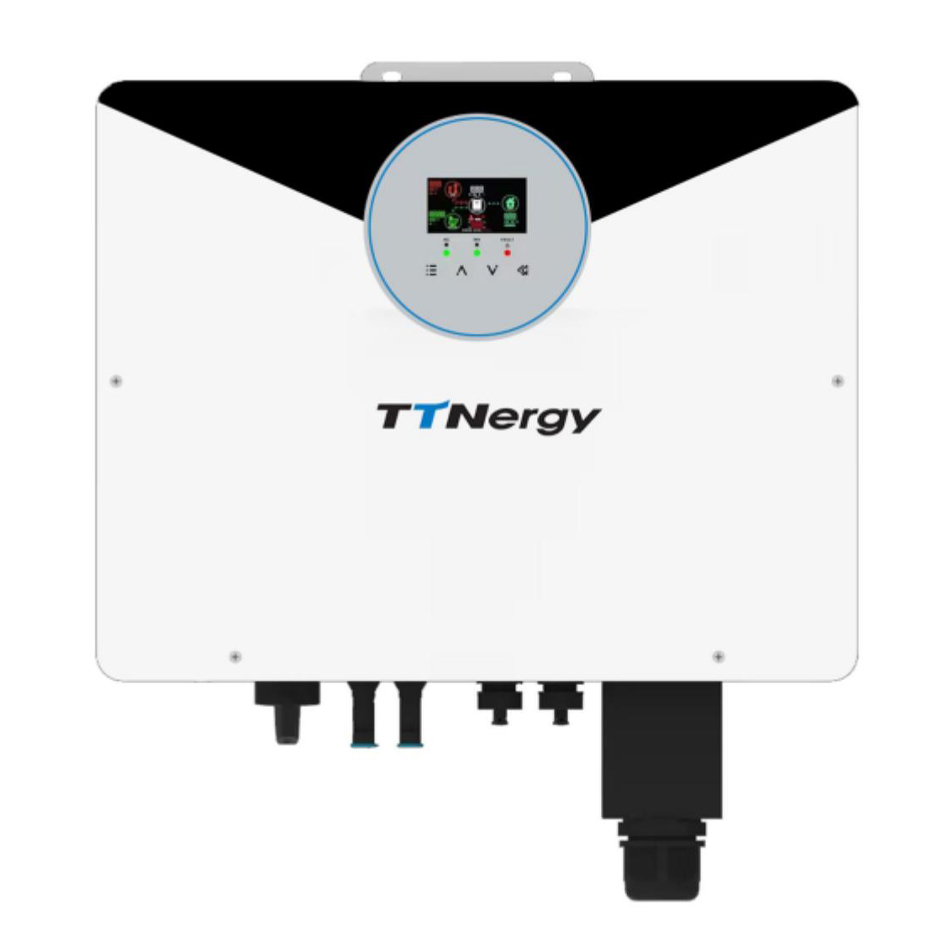

On-Grid Solar Inverter
On-Grid Solar Inverter
Additional information
| Max. input voltages | 500Vdc |
|---|---|
| Start Voltage | 900Vdc |
| Rated input Voltage | 360Vdc |
| MPPT Voltage Range | 60vdc-450vdc |
Leave your information to get the lowest quotation on the Internet
Product Information
● 110% output power oversizing,200% peak output power
● IP65 protection:support outdoor installation
● Wide voltage range compatible with various power grids
● Color LCD+LED design
● Off-grid function, solar power with only
● Built-in PV switch
● WiFi&GPRS available for lOS and Android
● Photovoltaic Anti-Reverse Flow (CT optional)
| Model | PATE-3KW | PATE-6KW | PATE-10KW | PATE-15KW |
| Max input Power | 4.5KW | 9KW | 13.5KW | 18KW |
| Max input voltages | 500Vdc | |||
| Start Voltage | 90Vdc | |||
| Rated input Voltage | 360Vdc | |||
| MPPT Voltage Range | 60-450Vdc | |||
| Number of MPP Trackers | 1 | 2 | 3 | 4 |
| Number of String per MPPT | 1/1 | 1/2 | 1/3 | 1/4 |
| Max. Cument per MPPT | 18A | 18A*2 | 18A*3 | 18A*4 |
| Max short CiruitCument per MPPT | 23A | |||
| Max Output Current | 13A | 26A | 43A | 65A |
| Rated Output Power | 3KW | 6KW | 10KW | 15KW |
| Max Output Power | 8KW | 12KW | 20KW | 30KW |
| Rated Grid Frequency | 50HZ/60HZ | |||
| Rated Grid Voltage | >0.99 | |||
| Max Efficiency | 98% | 98.3% | ||
| European Eficiency | 97% | 97.3% | ||
| MPPT Efficiency | 99% | |||
| DC switch | Yes | |||
| DC Reverse Polarity Protection | Yes | |||
| Anti-islanding Protection | Yes | |||
| AC short Circuit Protection | Yes | |||
| Residual Current Monitoring Unit | Yes | |||
| Insulation Resistance Monitoring | Yes | |||
| Ground Fault Monitoring | Yes | |||
| Grid Monitoring | Yes | |||
| PV String Monitoring | Yes | |||
| Surge Protection | Yes | |||
Enquiry more about: On-Grid Solar Inverter
Related Products
Related products
-

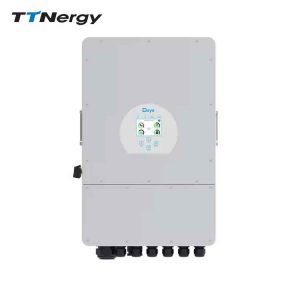

TTNergy Plus On/Off Grid Inverter 4000w-6000w (24V-48V)
-
24/48v 1.5-6kw Low Frequency MPPT Off Grid Hybrid milwaukee power inverter
-

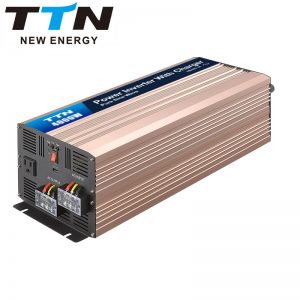

RP Series Toroidal Inverter 6kw 48v Pure Sin Dry Contact Communication Port 6000w Pure Sine Wave Inverter Charger
-

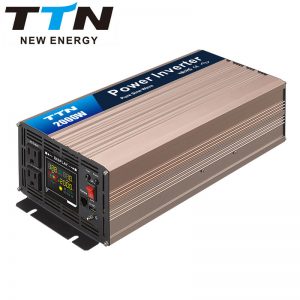

TTN SGPC Solar Power Inverter with AC Charger 500W~6000W
