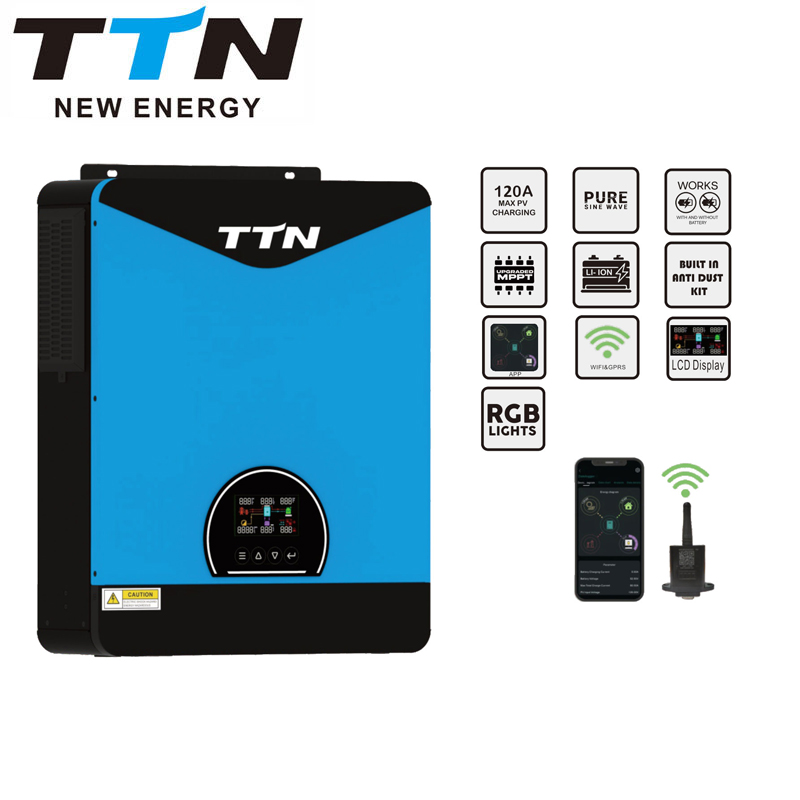

TTNergy TECO Smart On/Off Grid Hybrid Solar Inverter 3.6/4.2/6.2KW
TTNergy TECO Smart On/Off Grid Hybrid Solar Inverter 3.6/4.2/6.2KW
Additional information
| Dimension, D x W x H (mm) | 420*350*110 |
|---|---|
| Carton Dimension,D X W XH(mm) | 500*415*180 |
| Communication Port | RS232/RS485/WIFI/GPRS/Lithium Battery |
| Humidity | 5% to 95% Relative Humidity(Non condensing) |
| Operating Temperature | -10°C-50°C |
| Compliance Safety | CE |
Product Information
We have mature logistics solutions to ensure the successful delivery of goods
TTNergy hybrid solar inverter, this enables battery storage to be connected without the need to invest in separate charging systems and components.this inverter can replace many older style inverters allowing the use of a battery storage facility. If you are replacing an old inverter, remember to check the compatibility. It may also need a DC slow burn fuse system to connect in between the incoming PV strings prior to connection of this new hybrid solar inverter.
Features:
● Pure sine wave solar inverter(on/off Grid)
● Output power factor 1.0
● WIFI&GPRS available for lOS and Android
● Inverter can run without battery
● One-key restoration to factory Settings
● Built-in Lithium battery automatic activation
● Built-in 120AMPPT Solar charge:max 6200W(for 3.6KW/4.2KW),max 6500W (for 6.2KW)
● High PV input voltage range(60-500VDC)
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
● Dualoutput
| Model | TTN-TECO-3.6KW | TTN-TECO-4.2KW | TTN-TEC0-6.2KW | |||||
| Physical | ||||||||
| Dimension, DxWxH(mm) | 420*350*110 | |||||||
| Carton Dimension, DxWxH(mm) | 500~415*180 | |||||||
| Net Weight (kgs) | 8.5 | |||||||
| Gross Weight(kgs) | 9.5 | |||||||
| Interace | ||||||||
| Communication Port | RS232/RS485/WIFI/GPRS/Lithium Battery | |||||||
| Environment | ||||||||
| Humidity | 5%to 95%Relative Humidity (Non ~condensing) | |||||||
| Operating Temperature | -10℃ ~ G1750℃ | |||||||
| STANDARD | ||||||||
| Compliance Safety | CE | |||||||
| Model | TTN-TECO-3.6KW | TTN-TECO-4.2KW | TTN-TECO-6.2KW | ||||
| Phase | 1-phase | ||||||
| Maximum PV Input Power | 6200W | 6200W | 6500W | ||||
| Rated Output Power | 3600W | 4200W | 6200W | ||||
| Maximum Solar Charging Current | 120A | ||||||
| Grid.Tie Operation | |||||||
| PV Input(DC) | |||||||
| Nominal DC Voltage/Maximum DC Voltag | 360/500VDC | ||||||
| Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC | ||||||
| MPPT Voltage Range | 60~450VDC | ||||||
| Maximum Input Current | 1/18A | 1/22A | |||||
| Nominal Output Voltage | 220/230/240VAC | ||||||
| Output Voltage Range | 195.5~253VAC | ||||||
| Nominal Output Current | 15.7A | 18.2A | 27.0A | ||||
| Power Factor | >0.99 | ||||||
| Efficiency | |||||||
| Maximum Conversion Efficiency | 98% | ||||||
| Two Load Output Power | |||||||
| Full Load | 3600W | 4200W | 6200W | ||||
| Maxium Main Load | 3600W | 4200W | 6200W | ||||
| Maxium Second Load(batte ode | 1200W | 1400W | 2067W | ||||
| Maxium Load Cut Off Voltage | 26Vdc | 26Vdc | 52Vdc | ||||
| Maxium Load Return Voltage | 27Vdc | 27Vdc | 54Vdc | ||||
| Off-Grid Operation | |||||||
| AC Input | |||||||
| AC Start-up Vollage /Auto Resta | 120-140VAC/180VAC | ||||||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||||
| Frequency Range | 49-51±1Hz or 59-61士1Hz | ||||||
| MaximumAC Input Current | 30A | 30A | 40A | ||||
| PV Input(DC) | |||||||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||||||
| MPPT Voltage Range | 60~450VDC | ||||||
| Maximum Input Current | 1/18A | 1/22A | |||||
| Battery Mode Output(AC) | |||||||
| Nominal Output Voltage | 220/230/240VAC | ||||||
| Output Wavefom | Pure sine wave | ||||||
| Eciency (DC to AC) | 94% | ||||||
| Battery & Charger | |||||||
| Nominal DC Voltage | 24Vdc | 48Vdc | |||||
| Maximum Solar Charging Curren | 120A | 140A | 120A | ||||
| Maximum AC Charging Current | 100A | 100A | 100A | ||||
| Maximum Charging Current | 120A | 140A | 120A | ||||
| Hybrid Operation | |||||||
| PV Input(DC) | |||||||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | ||||||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||||
| MPPT Voltage Range | 60~450VDC | ||||||
| Maximum Input Curren | 1/18A | 1/22A | |||||
| Grid Output(AC) | |||||||
| Nominal Output Voltage | 220/230/240VAC | ||||||
| Output Voltage Range | 195.5~253VAC | ||||||
| Nominal Output Current | 15.7A | 18.2A | 27.0A | ||||
| AC Input | |||||||
| AC Start-up Vottage/Auto Restart Voltage | 20-140VAC/180VAC | ||||||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||||
| Maximum AC Input Current | 30A | 30A | 40A | ||||
| Maximum AC Charging Curren | 100A | ||||||
