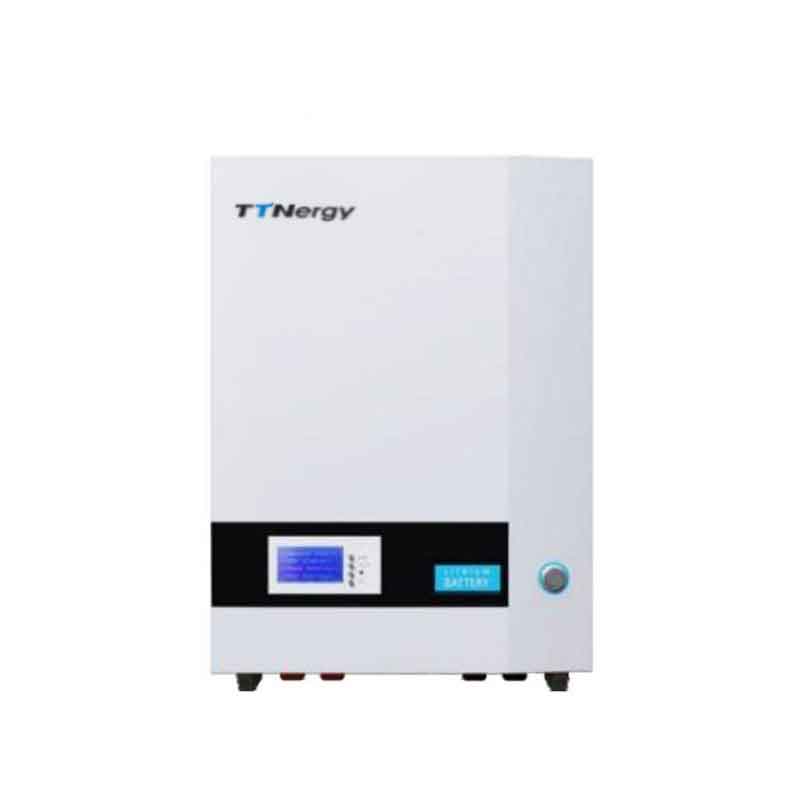

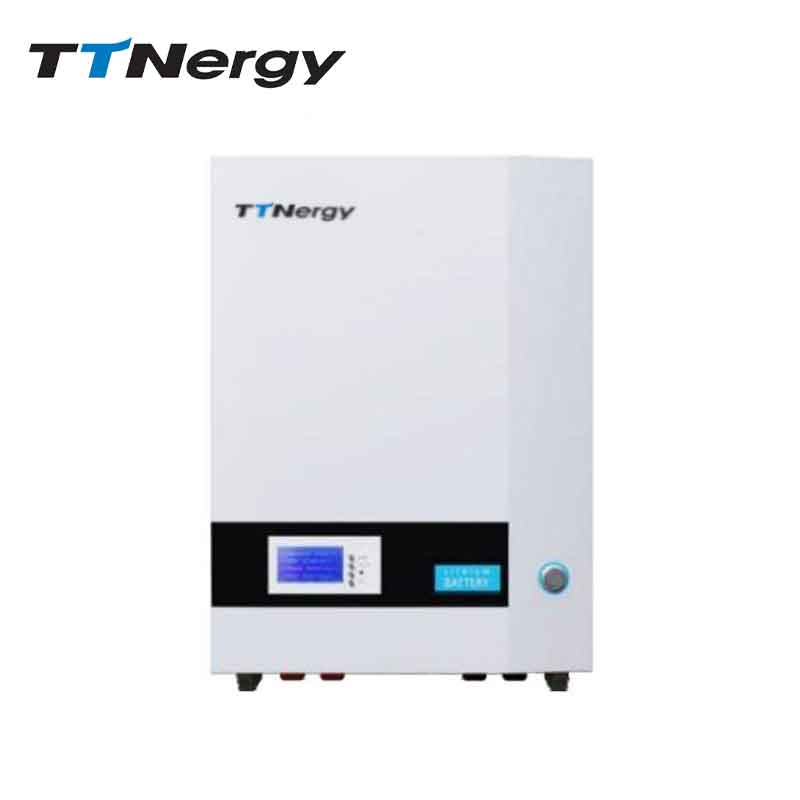

TTNergy Power Wall Lithium energy Storage Battery 48V / 51.2V 100Ah

The 2024 TTNergy new release of our wall mounted battery features a classic black and white color scheme that seamlessly blends into various scenarios, making it suitable for use in industrial, residential, and commercial solar battery applications. Not only does it save maximum floor space, but it also provides cost-effective energy support for homes. With the use of CATL/REPT Lifepo4 battery cells, it offers an impressive lifespan of over 8000 cycles, ensuring reliable performance for more than 20 years.

Additionally, this wall mount solar battery is compatible with over 20 inverters, making it adaptable to different markets around the world. Each unit comes equipped with a smart display screen and push-button/touch screen for easy selection. Furthermore, our wall battery storage system allows for free expansion, with the possibility of connecting up to 16 packs in parallel, offering a range of energy capacities for home energy storage options.

Battery Managment system

Power wall come with built in BMS. Different from any other mos BMS. TTNergy apply This BMS design for solar energy storage systems only. Up to now, our BMS has already interated communication portocol with most popular brand invertors in the market. This make sure the battery system much more stable and long life.

• Over temperature cutoff
• Over Voltage cutoff
• Short circuit protection
• Over charge/ discharge cutoff
• Over current cutoff
• Communication port: CAN, RS232, RS485.



Smartest Battery Management System

The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection. This high-performance TTNergy Lithium Battery has a large power capacity, with a fast charging and continuous discharge power, providing 98% efficiency. The advanced Lithium Ferro Phosphate (LFP) technology operates a wider temperature range to deliver the most dependable performance. LFP has been proven to be one of the safest Lithium technologies in the industry and is manufactured to the highest standards.

The TTNergy battery system is the ideal energy storage solution for grid-tied or off-grid solar installations. Lower your utility bill by avoiding the need to buy electricity at peak times with the TTNergy Lithium Battery.

Strong & Durable Structure

TTNergy Wall-mounted home lithium battery adopts the patented rhombus prismatic LFP LiFePO4 cells. The whole internal assembly from cells, modules, BMS to components are screw fastening that presenting utmost safety and reliability.

Model	Wall 48V 100Ah 51.2V 100Ah
Capacity	4.8kWh/5.12kWh
Normal Discharging Current	50A
Max Discharging Current	100A
Voltage	40.5-54VDC or 43.2-56.5V
Standard Voltage	48VDC or 51.2VDC
Max Charging Current	100A
Max Charging Voltage	54V for 48V or 57.6V for 51.2V
Suggested DOD Model	80%-90%
Humidity	20%-60%
Installation	Wall mounted installation
Cycle	6000 cycles at 80% DoD,0.5C. 25C
IP Rating	IP20
Max Number Of Parrallel	15
Warranty	5 Years
Communication	CAN/RS485/RS232 (4G WiFi/blue tooth/4G optional)
Size(mm)	710*530*270mm
Weight	48KG
