Lifepo4 Home Power Wall Solar Energy Storage Battery
Lifepo4 Home Power Wall Solar Energy Storage Battery
Additional information
| Battery Type | LiFePO4, Lithium Ion |
|---|---|
| Gravimetric specific energy:Gravimetric specific energy | 140WH/KG |
Product Information

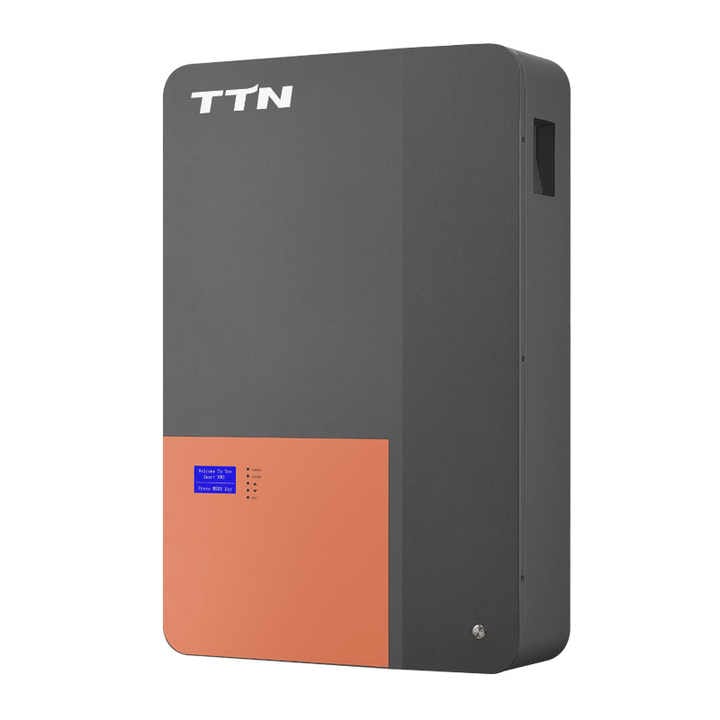

TTN Power Wall Solar Energy Storage Battery
TTN Power Wall Solar Energy Storage Battery uses long working life LiFePO4 battery, wall mounted installation is more convenient and beautiful, high performance BMS to protect and manage the battery system, it has wider usage and longer life than traditional battery. The Powerwall Solar Energy Storage Battery, developed by Tesla, is a rechargeable lithium-ion battery designed to store excess energy generated by solar panels for later use. With a sleek and compact design, it allows homeowners to have a reliable and sustainable backup power source, reducing their reliance on traditional grid systems.
TTN-PW48V100A / PW51.2V/100A
features:
※ High power, friendly interface, free combination
※ High quality battery cell, precise combination
※ CAN/RS485/WIFI/4G/Blue tooth communication
※ BMS customization supported
※ Thick shell, well protection for inside cells
Application area:
※Energy storage system, control system, alarm system, power system, database
※Emergency lighting system, emergency power supply, UPS
※ Telecommunication, communication, firefighting system
BMS Protection:
※Over Current
※Short Circuit
※Over Voltage
※High Temperature
※Low Voltage
|
Model
|
PW48V100AH
|
PW51.2V100AH
|
PW48V200AH
|
PW51.2V200AH
|
|
Capacity
|
4.8KWH
|
5.12KWH
|
9.6KWH
|
10.24KWH
|
|
Standard Discharging Current
|
50A
|
50A
|
50A
|
50A
|
|
Max Discharging Current
|
100A
|
100A
|
100A
|
100A
|
|
Working Voltage
|
40.5-54VDC
|
43.2-57.6VDC
|
40.5-54VDC
|
43.2-57.6VDC
|
|
Standard Voltage
|
48VDC
|
51.2VDC
|
48VDC
|
51.2VDC
|
|
Max Charging Current
|
50A
|
50A
|
100A
|
100A
|
|
Max Charging Voltage
|
54V
|
57.6V
|
54V
|
57.6V
|
|
Suggested DOD Model
|
90%
|
|||
|
Humidity
|
20-60%
|
|||
|
Installation
|

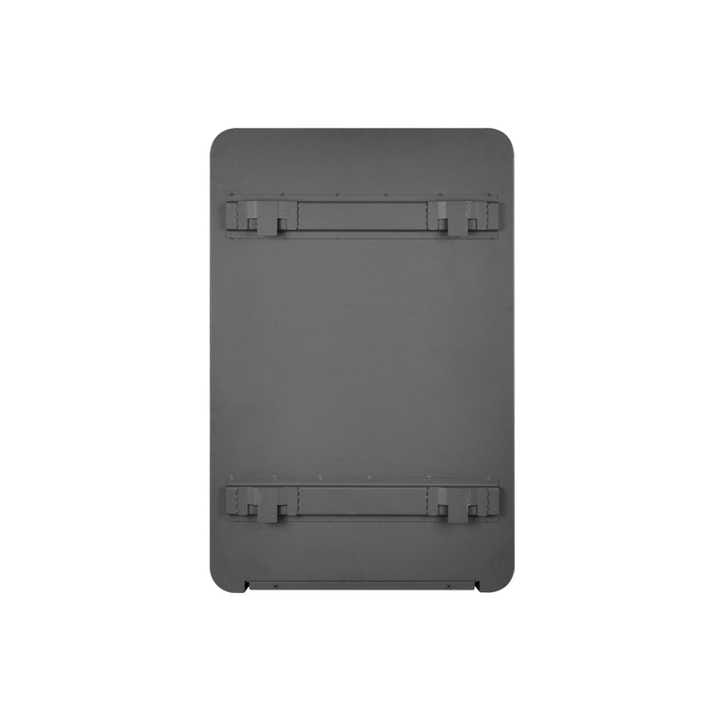

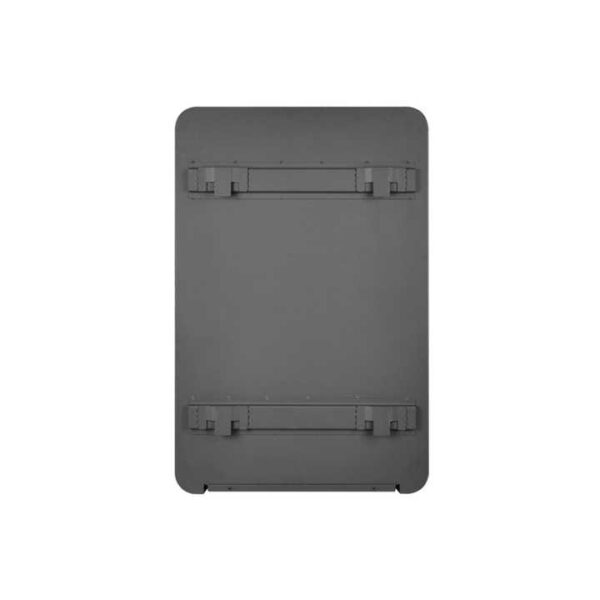

Wall mounted installation
|
|||
|
IP Rating
|
IP20
|
|||
|
Max Number Of Parrallel
|
16
|
|||
|
Warranty
|
5 Years
|
|||
|
Communication
|
CAN/RS485/RS232(WiFi/bluetooth/4G optional)
|
|||
|
Product Size
|
558*400*228mm
|
591*485*184mm
|
||
|
Packing Size
|
680*525*375mm
|
790*650*375mm
|
||
|
Net Weight
|
43Kg 45Kg
|
73Kg 76Kg
|
||
|
Gross Weight
|
51.5Kg
|
53.5Kg
|
84Kg
|
87Kg
|
