LiFePO4 48V 51.2V 100Ah 200Ah Power Wall Solar Energy Storage Battery
LiFePO4 48V 51.2V 100Ah 200Ah Power Wall Solar Energy Storage Battery
Additional information
| Model Number | SR-EOS48-5.0A-E0 |
|---|---|
| Nominal Capacity | 5/7.5/10KWH |
| Inverter Matched | Solax, Deye, Goodwe, Growatt, Victron, Sofar, GMDE |
| Battery Size | 680*495*185mm |
| Nominal Voltage | 48Vdc |
| Cycle life | ≥6000 times |
| Battery cell | 3.2V 50Ah Prismatic Cell |
| Weight | 108kg |
Product Information
The Power Wall Solar Energy Storage Battery is a high-capacity battery designed to store energy generated by solar panels. With a voltage range of 48V to 51.2V and storage options of 100Ah and 200Ah, it provides reliable backup power and can reduce dependence on the grid. Its compact size and long lifespan make it an efficient and sustainable solution for home or business use. Maximize your solar energy savings with our Power Wall Solar Energy Storage Battery. Available in 48V and 51.2V, and with options for 100Ah and 200Ah capacity, our batteries provide reliable and efficient storage for your renewable energy. Say goodbye to high energy bills and hello to sustainable living with our Battery.
|
Product model
|
SR-EOS48-5.0A-E0
|
SR-EOS48-10.0A-E0
|
|
Rated voltage
|
51.2V
|
51.2V
|
|
Rated capacity
|
100Ah
|
200Ah
|
|
Rated energy
|
5.12kWh
|
10.24kWh
|
|
Weight
|
46kg
|
80kg
|
|

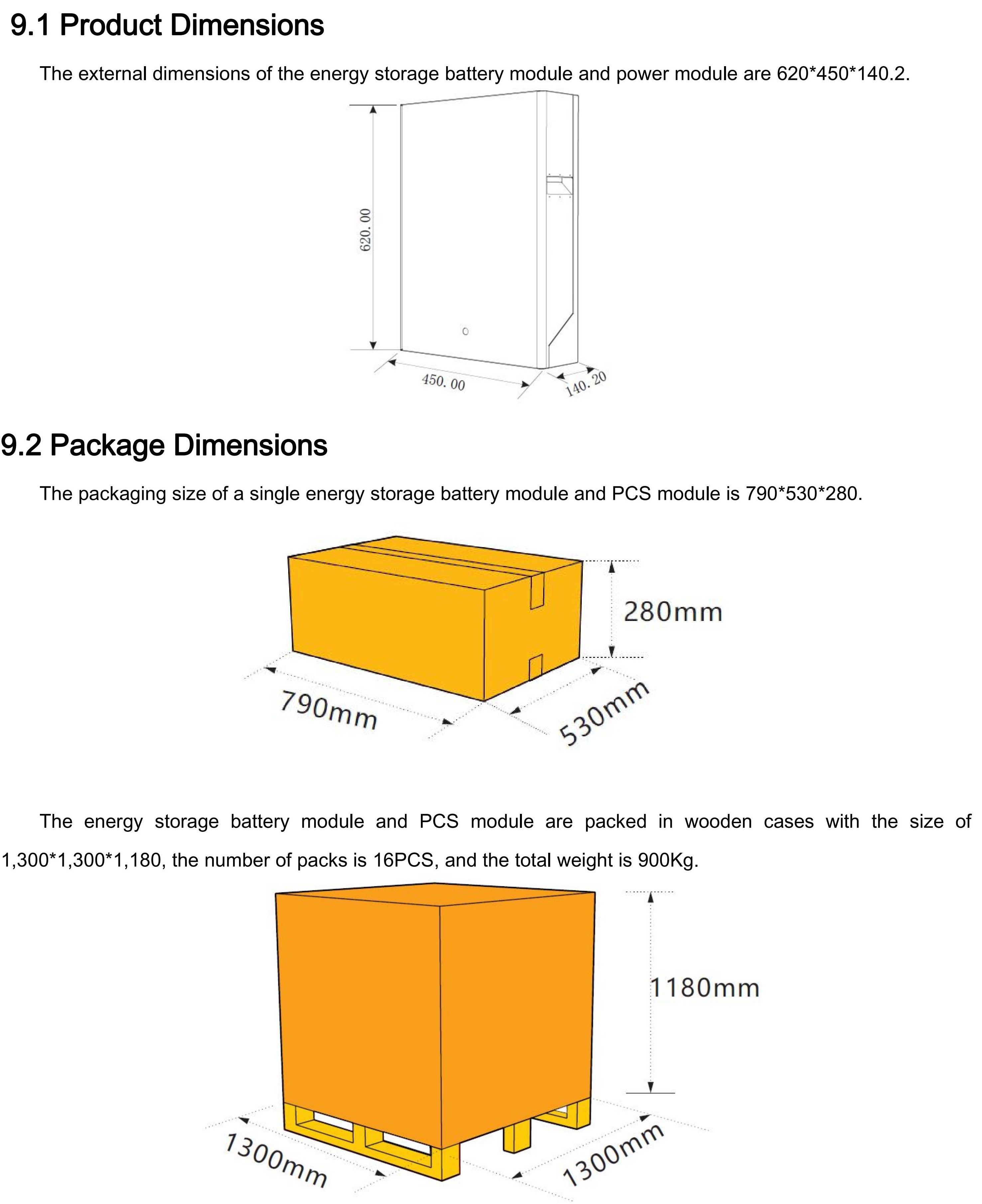

Dimentions（L*W*H）
|
620*450*140mm
|
830*515*140mm
|
|
Battery type
|
LFP
|
|
|
Life time(25℃)
|
20 Years
|
|
|
Life cycles（80% DOD,25℃）
|
6000 Cycles
|
|
|
Max.charging voltage
|
57.6V
|
|
|
Over discharge voltage
|
44.8V
|
|
|
Constant charging current
|
100A
|
|
|
Constant discharging current
|
100A
|
|
|
Peak charging current
|
110A（3S）
|
|
|
Peak discharging current
|
110A（3S）
|
|
|
Max.Number of parallel
|
4
|
|
|
Communication interfaces
|
CAN/RS232/RS485
|
|
|
Lithium Battery Standard
|
UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
|
|
|
Storage time / temperature
|
6 months @25℃;3 months @35℃;1 months @45℃;
|
|
|
Charging temperature range
|
0～45℃
|
|
|
Discharging temperature range
|
-10～45℃
|
|
|
Cooling method
|
Natural cooling
|
|
|
Enclosure protection rating
|
IP54
|
|
|
Operation Environment
|
Indoor
|
|
