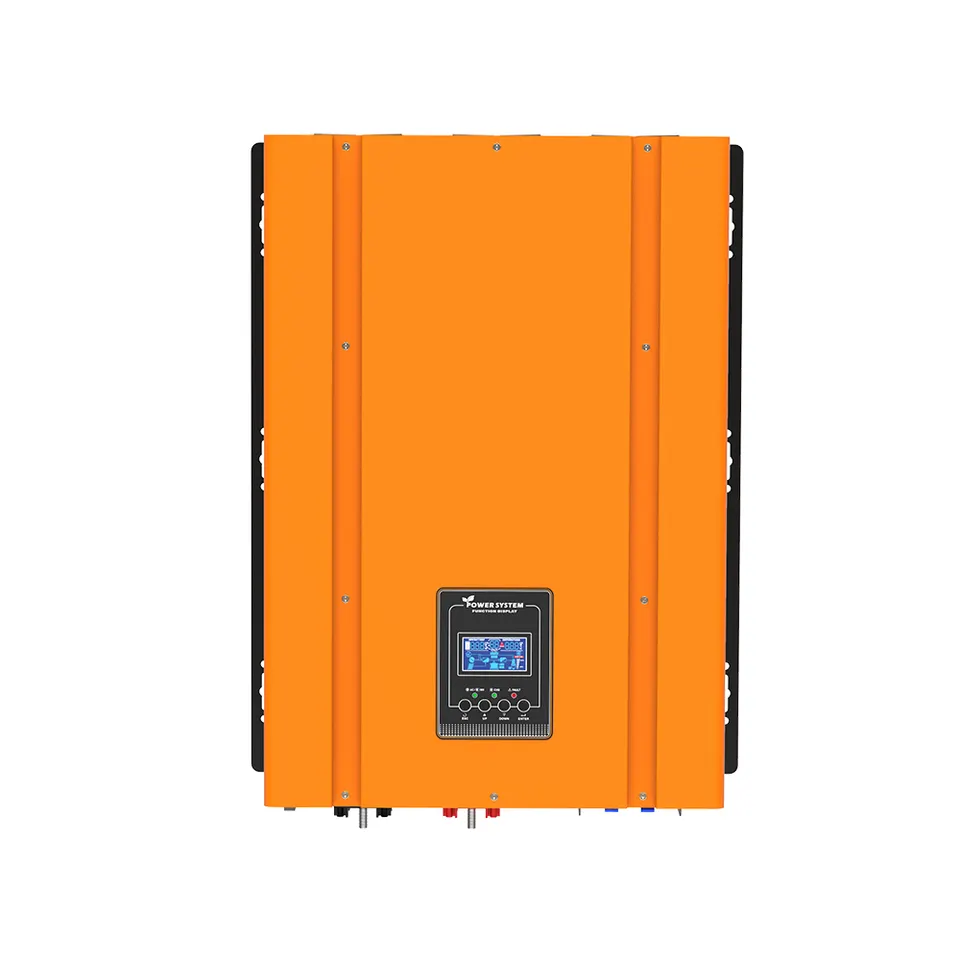

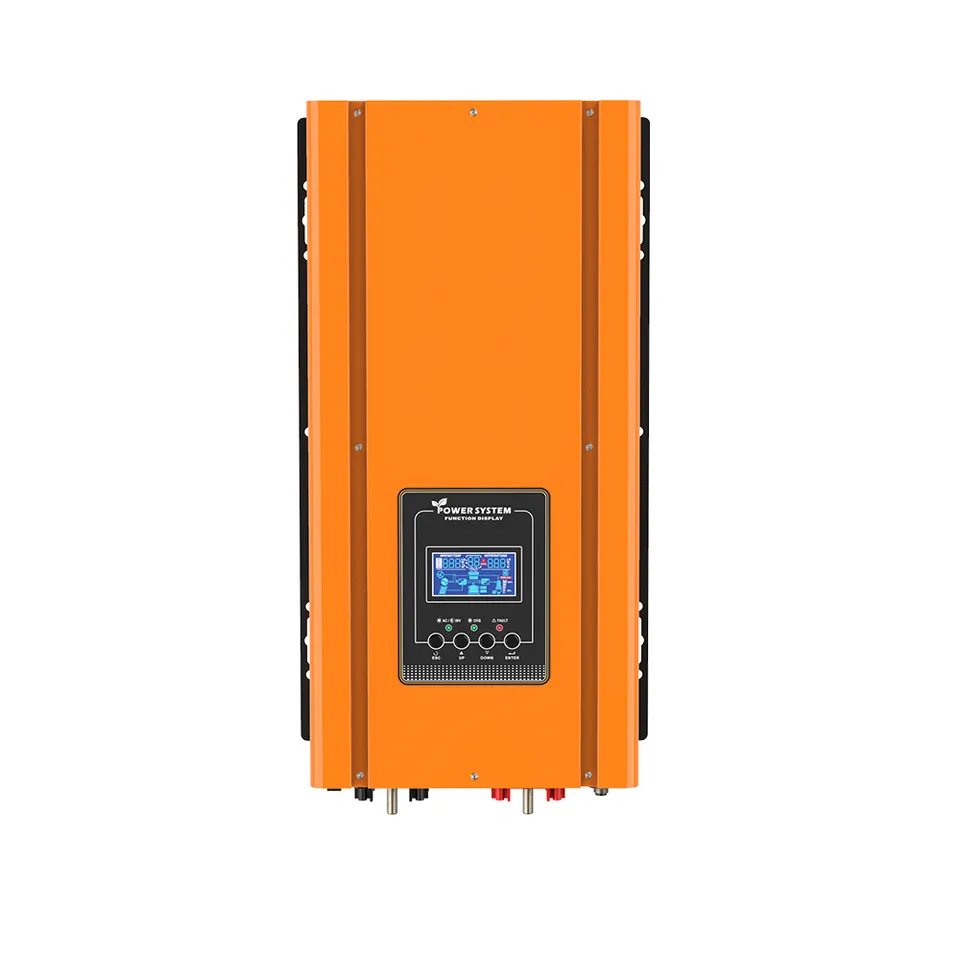

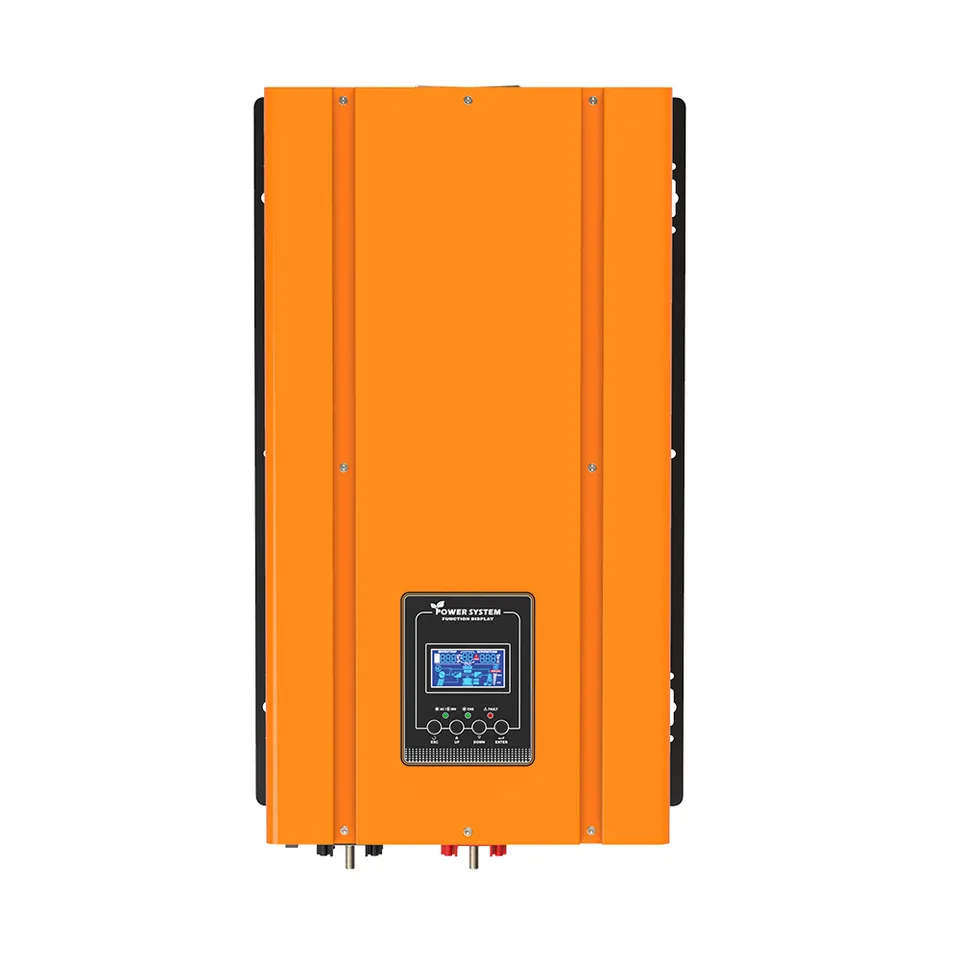

RP Series Toroidal Inverter 6kw 48v Pure Sin Dry Contact Communication Port 6000w Pure Sine Wave Inverter Charger

RP Series Toroidal Inverter 6kw 48v Pure Sin Dry Contact Communication Port 6000w Pure Sine Wave Inverter Charger

Additional information

Output Frequency

40Hz-70Hz (50Hz/60Hz)

Size

574*345*197mm

Inverter Efficiency

91%

dry contact communication port

Yes

Input Voltage

24V /48 V

Output Current

27.3A / 220V, 54.5A/110V

Product Information

TTN Solar Inverter



An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity altogether. Pure Sine Wave Inverter Charger


The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand. Pure Sine Wave Inverter Charger

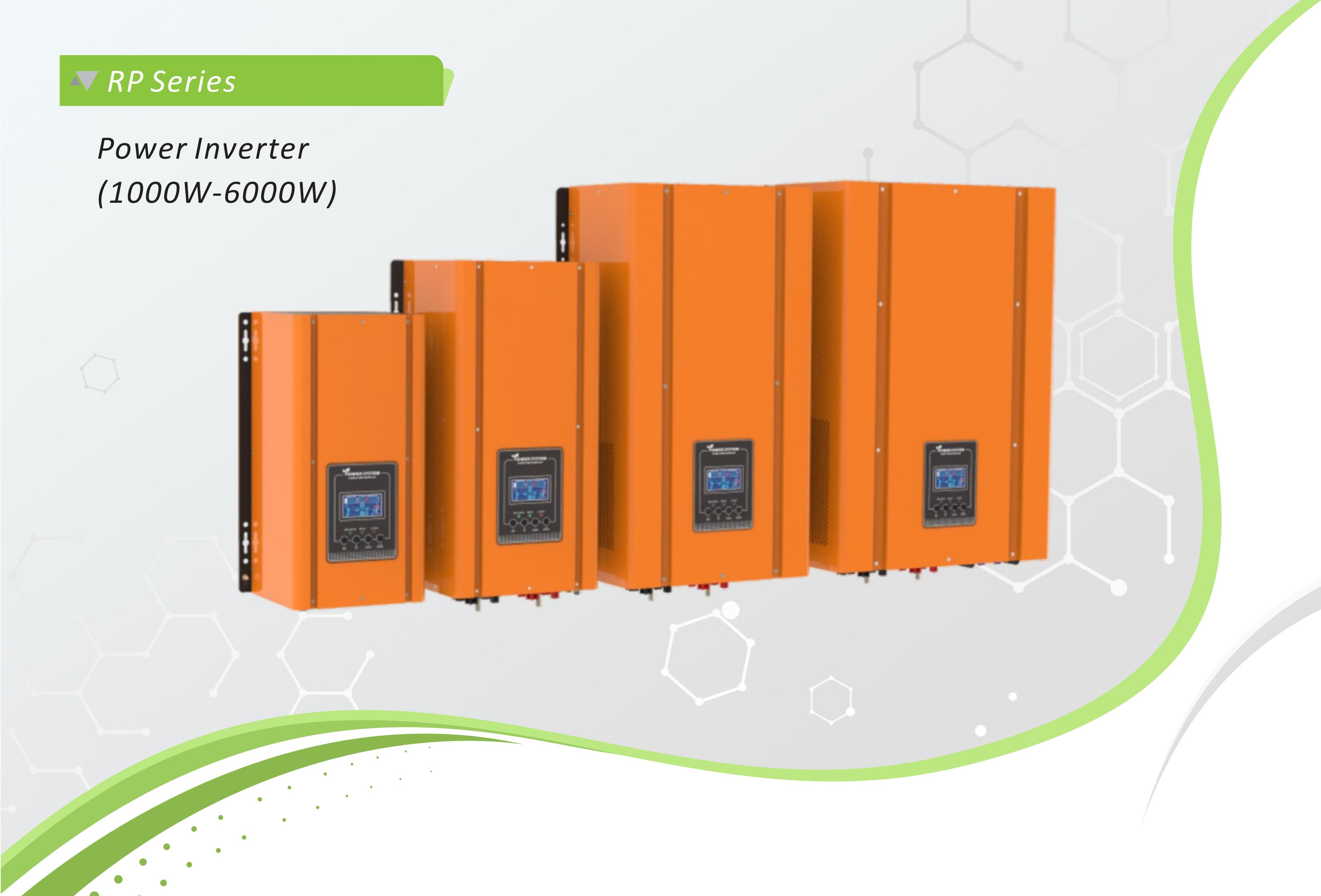

TTN-RP 1K / 2K / 3K / 4K / 5K / 6K / 8K / 10K / 12K

Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

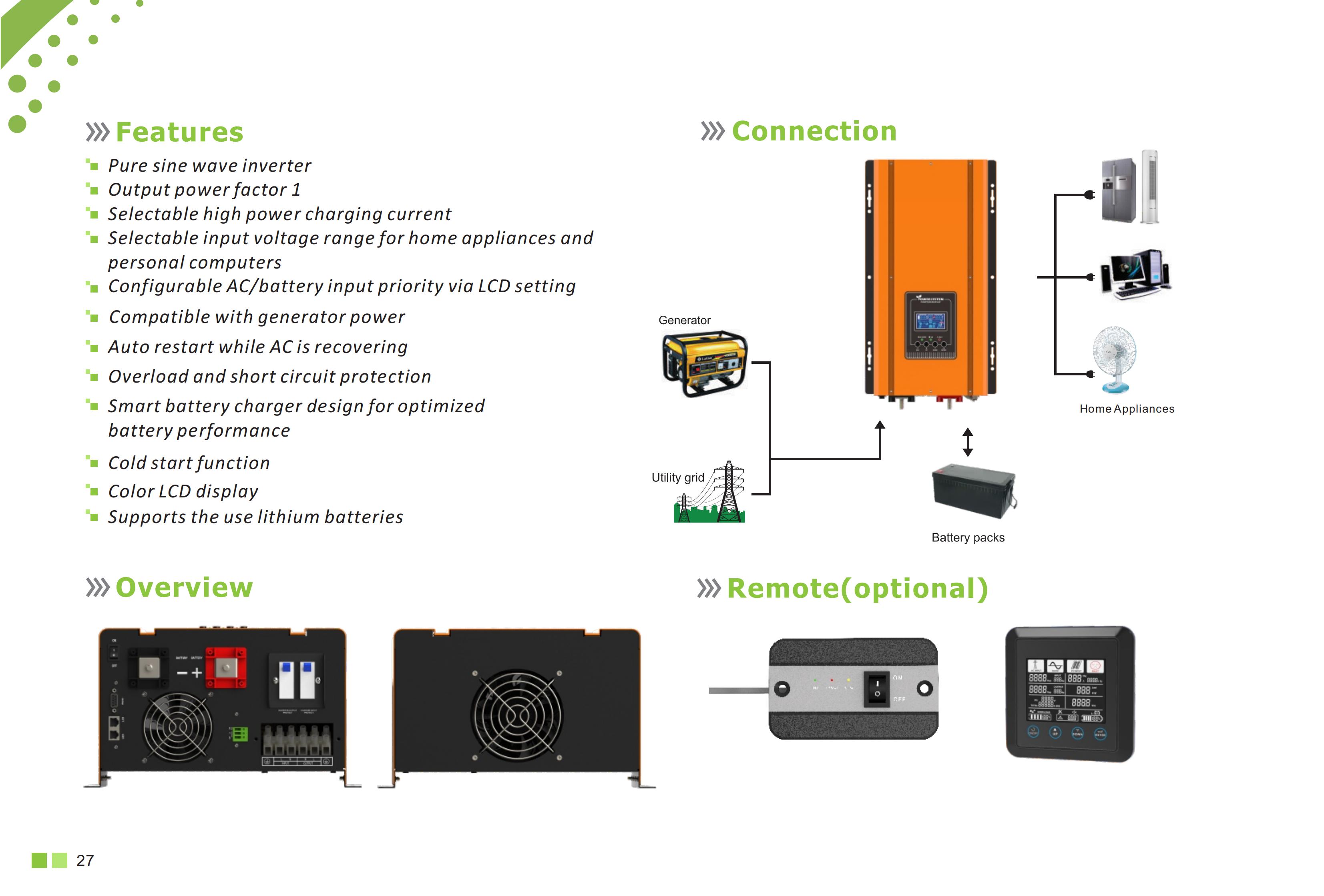

Pure sine wave inverter
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable ac/battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use lithium batteries
Wave by wave phase detection, more stable and reliable

Model
RP 1K
RP 2K
RP 3K
RP 4K
RP 5K
RP 6K
RP 8K
RP 10K
RP 12K
Rated Power
1000W
2000W
3000W
4000W
5000W
6000W
8000W
10000W
12000W
INPUT
Voltage
100/110/120Vac;220/230/240Vac
220/230/240Vac
Selectable Voltage Range
Wide Range : 75vac~138Vac; 155Vac~275Vac(for home appliances)
Narrow Range: 82Vac~138Vac; 165Vac~275Vac(for personal computer)
Frequency Range
40~70Hz (50Hz/60Hz)
OUTPUT
AC Voltage Regulation(Battery. Mode)
100/110/120Vac; 220/230/240Vac
220/230/240Vac
Surge Power
2000VA
4000VA
9000VA
12000VA
15000VA
18000VA
24KVA
30KVA
36VA
Efficiency (Peak)
88%
91%
90%
Transfer time
<20ms
<10ms
<20ms
Waveform
Pure sine wave
Protection
Over charging, over temp, over battery voltage, over load, short circuit
Operating environment Temp
55°C
Cooling
Intelligent Fan
Display
Color LCD
Parameter setting
By LCD or Position Machine:Charging current , battery type , input voltage , output frequency, Wide and Narrow range of ac input
voltage , Power saver mode, ac/battery priority
PHYSICAL
Dimension D*W*H(mm)
390*222*178
500*258*190
574*345*197
584*425*180
Net Weight(kg)
12.4/11.4
16/15
25.2/24.6
34.4/33.8
37.9/38.2
41.6/40.5
58.7/59
67/66.5
71.8/72
ENVIRONMENT
Humidity
5-95% Relative Humidity (Non-condensing)
Operating Temp
-10°C to 50°C
Storage Tem.
-15°C to 60°C
BATTERY
1000W
2000W
3000W
4000W
5000W
Battery Voltage
12V
24V
12V
24V
48V
24V
48V
24V
48V
Charge current
35A
35A
75A
50A
25A
70A
35A
75A
45A
Fast charge voltage
14.3V
28.6V
14.3V
28.6V
57.2V
28.7V
57.3V
28.8V
57.4V
Float charge voltage
13.7V
27.4V
13.7V
27.4V
54.8V
27.5V
54.9V
27.6V
54.10V
Over voltage protect
16.5V
33.0V
16.5V
33.0V
66.0V
33.1V
66.1V
33.2V
66.2V
Battery low voltage alarm
10.5V
21.0V
10.5V
21.0V
42.0V
21.1V
42.1V
21.2V
42.2V
Battery low voltage shutdown
10.0V
20.0V
10.0V
20.0V
40.0V
20.1V
40.1V
20.2V
40.2V
6000W
8000W
10000W
12000W
Battery Voltage
24V
48V
48V
96V
48V
96V
48V
96V
Charge current
75A
50A
70A
35A
75A
40A
75A
50A
Fast charge voltage
28.9V
57.5V
57.2V
114.4V
57.2V
114.4V
57.2V
114.4V
Float charge voltage
27.7V
54.11V
54.8V
109.6V
54.8V
109.6V
54.8V
109.6V
Over voltage protect
33.3V
66.3V
66.0V
132.0V
66.0V
132.0V
66.0V
132.0V
Battery low voltage alarm
21.3V
42.3V
42.0V
84.0V
42.0V
84.0V
42.0V
84.0V
Battery low voltage shutdown
20.3V
40.3V
40.0V
80.0V
40.0V
80.0V
40.0V
80.0V

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
