220VAC Off Grid 3.5/5.5KW Hybrid MPPT 100A Solar Charge Controller without Battery WIFI Monitor Solar Inverter

220VAC Off Grid 3.5/5.5KW Hybrid MPPT 100A Solar Charge Controller without Battery WIFI Monitor Solar Inverter

Additional information

Inverter Efficiency

>95%

Warranty

2 years

Normal input voltage

48VDC

Input Voltage

24VDC 48VDC

Weight

12kg

PV charge current

80A

Rated power

3200W 5.5KW

Max PV input

120V-450V

Surge Power

11000VA

Power Consumption

2W

Product Information

TTN Hybrid Inverter



An on-grid solar charge controller inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.


The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

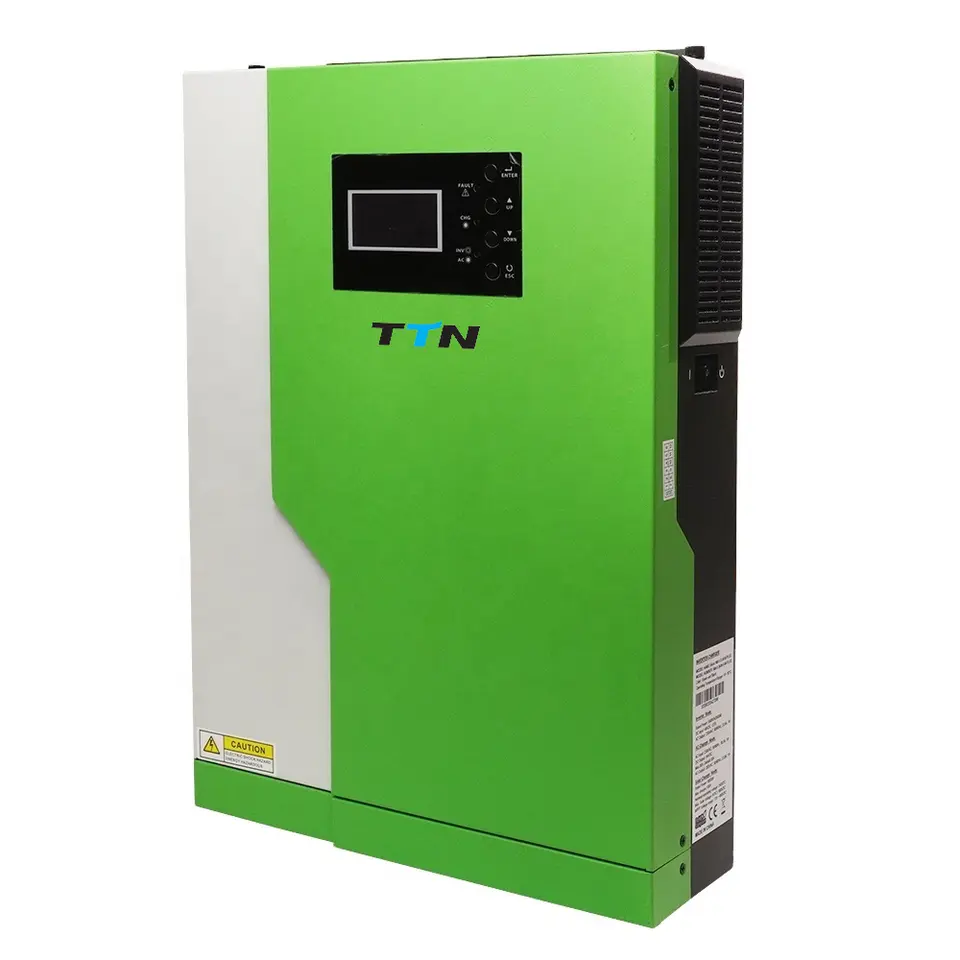

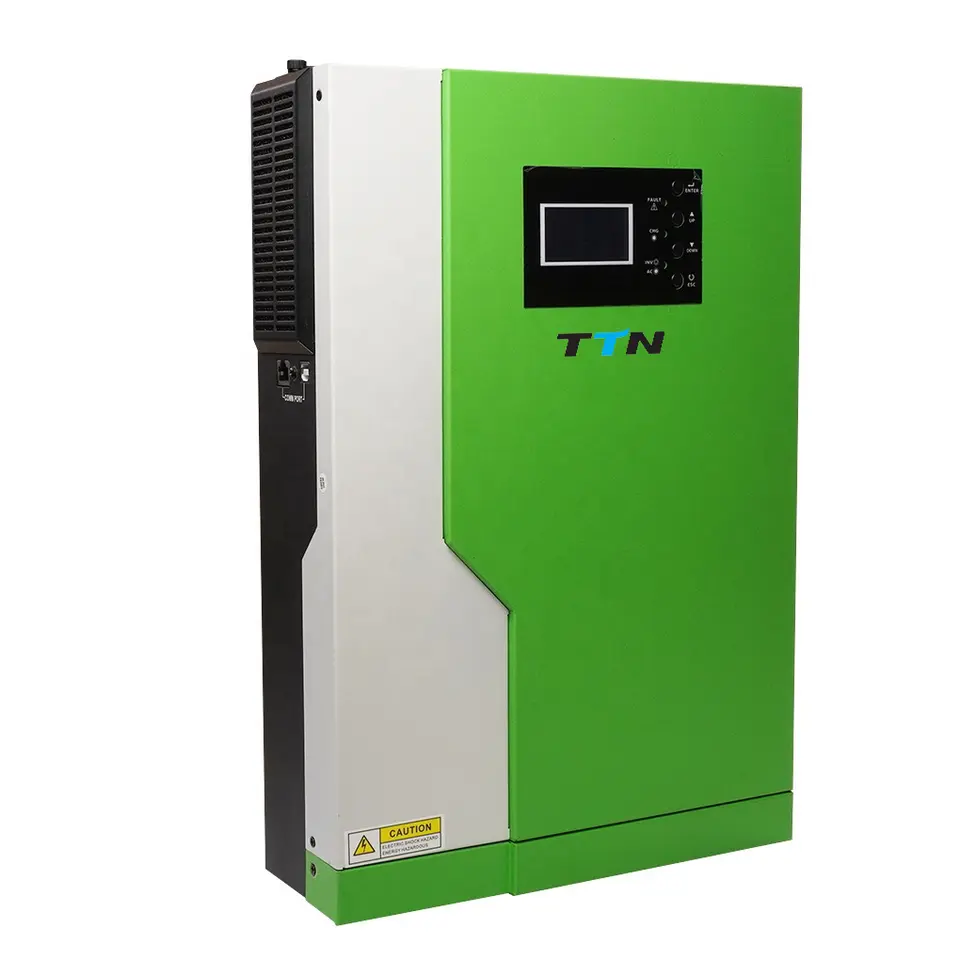

TTN-MPS-V PLUS 3.5/5KW

Higher yields / Safe & Reliable / Smart / User-friendly

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. solar charge controller


High-efficiency pure sine wave inverter (PF=1)

Wide PV input range (120VDC-500VDC) 100A MPPT SCC Intelligent functionality enables utility and solar input periodization Wide utility input range (90Vac-280Vac) for unreliable gird even In the most challenging environments Field serviceable with replacement boards and spare parts Monitor, troubleshoot or communication with RS232/RS485. Working with batteries Anti-dusk kit for harsh environment(optional) PV and electricity complementary WiFi Monitoring Function (optional) Use with lithium batteries

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
Model
TTN-MPS-V PLUS 3.5kW
TTN-MPS-V PLUS 5.5KW
Rated Power
3500VA/3500W
5500VA/5500W
Input
Voltage
230VAC
Selectable Voltage Range
170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range
50Hz/60Hz(Auto sensing)
Output
AC Voltage Regulation(Batt.Mode)
230VAC±5%
Surge Power
7000VA
11000VA
Efficienc(Peak)PV to INV
97%
Efficienc(Peak)Battery to INV
94%
Transfer Time
10ms(For Pensonal Computers);20ms(For Home Appliances
Battery & AC Charger
Battery Voltage
24VDC
48VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
33VDC
63VDC
Maximum Charge Current
80A
80A
Solar Charger
Maximum PV Array Power
5000W
6000W
MPPT Range @ Operating Voltage
120~450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Maximum Charging Current
100A
100A
Maximum Efficiency
98%
Physical
Dimension,D*W*H(mm)
100*300*440
Net Weight(kgs)
11
12
Communication Interface
USB/RS232/GPRS/WIFI
Operating Environment
Mumidity
5% to 95% Relative Humidity(Non~condensing)
Operating Temperature
0℃~55℃
Storage Temperature
-15℃~60℃
NOTE 1: This is a wide voltage Hybrid inverter. The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.
NOTE 2: This Hybrid Inverter supports the WIFI function but without the WIFI Monitor.
