Solar Panel Mounting Structure Roof Ground Mounted Rack System
Solar Panel Mounting Structure Roof Ground Mounted Rack System
Additional information
| Wind Load | Up to 216km/h |
|---|---|
| Installation Site | Solar Energy Station |
| Feature | Pre-assembled |
| MOQ | 1 Set |
Product Information
TTN SOLAR MOUNTING SYSTEM
The professional structural design ensures strength
Unique Mudsill & Matrix Design
Solar Module Layout Flexibility Adjustability
The solar mounting system is designed with great flexibility for commercial and residential solar systems. It is suitable for installing framed and frameless modules flushed to the roof and ground, Easy to install, high preassembly parts and a customized solution will save your installation time and money. Roof Mount Solar Panels

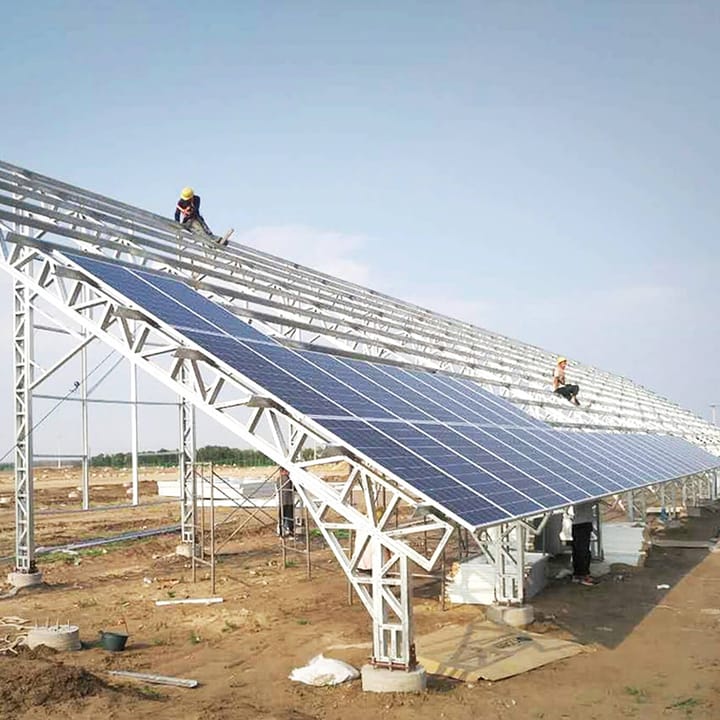

The ground mounting system is a universal adjustable angle column installation system. The patented track has good component compatibility and convenient installation, which saves users installation time and costs, and strict quality control to ensure product performance and lifespan, the system can be compatible with most photovoltaic brackets on the market. Roof Mount Solar Panels
Advantages

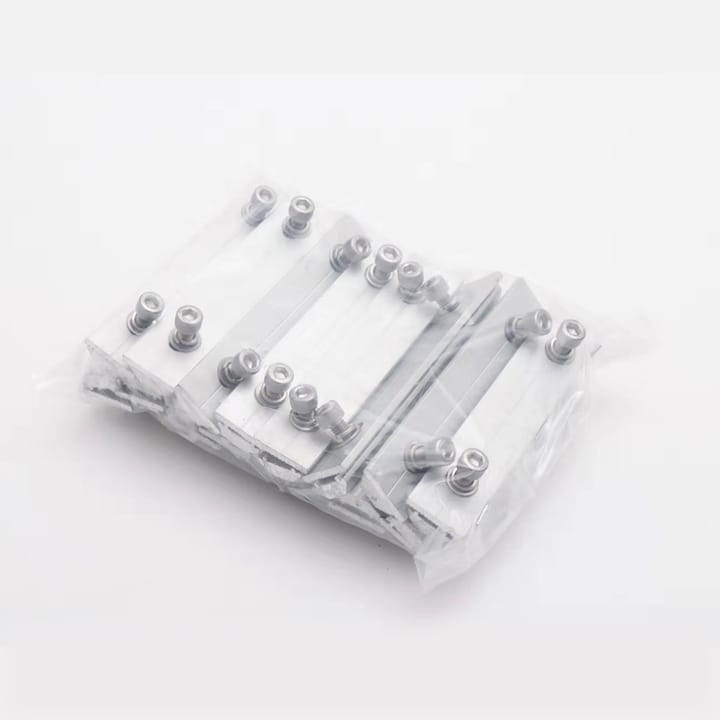

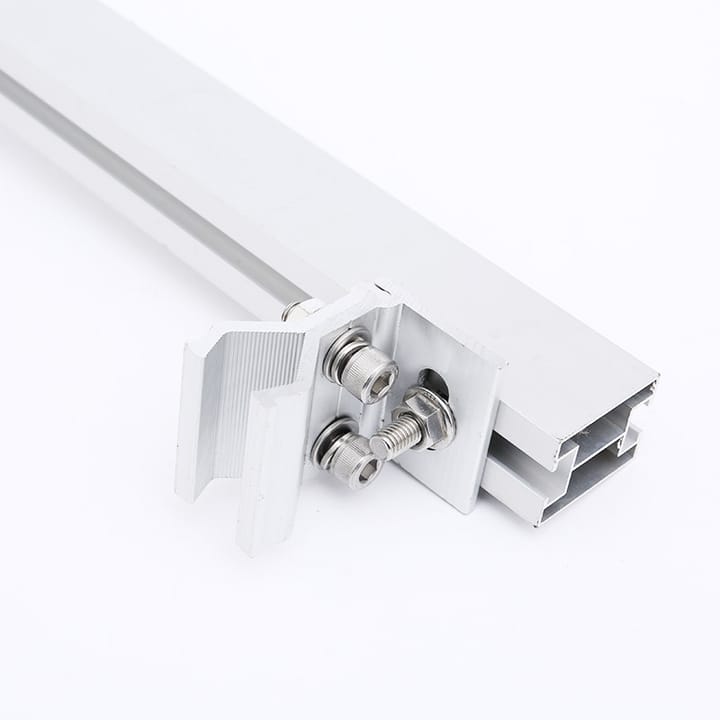

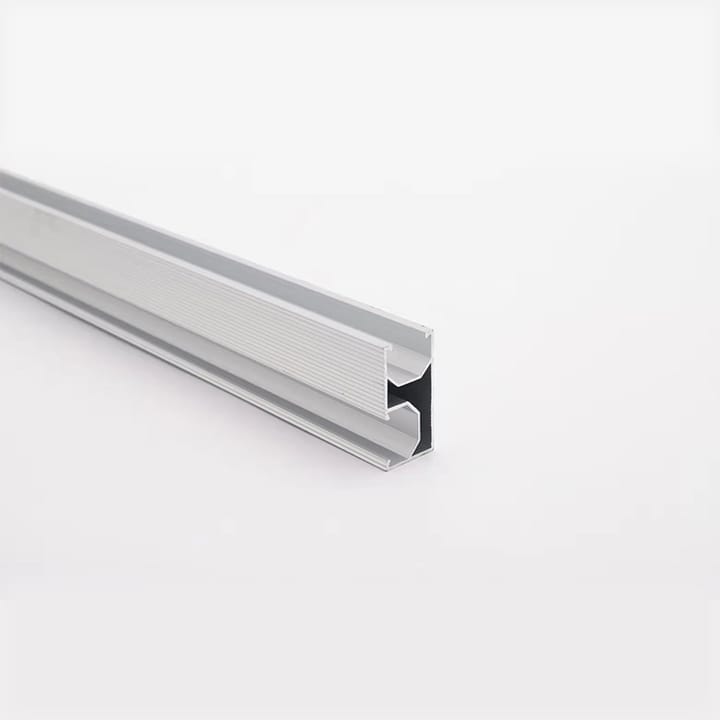

1. Easy Installation: The innovative rail and rail nut have greatly simplified the installation of solar panels. The rail nut and
unique rail extension method allows greatly reduced installation times.
2. Great Flexibility: With the racking system, framed solar panels can be easily mounted on pitched roof. Suitable for all size solar panel from all the popular manufacturers.
3. High Accuracy: Without the need for cutting rail, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
4. Excellent Adaptability: Engineered to High Standard racking system is safe and strong.
5. Maximum Lifespan: All components are made of quality extruded aluminum and stainless steel.
unique rail extension method allows greatly reduced installation times.
2. Great Flexibility: With the racking system, framed solar panels can be easily mounted on pitched roof. Suitable for all size solar panel from all the popular manufacturers.
3. High Accuracy: Without the need for cutting rail, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
4. Excellent Adaptability: Engineered to High Standard racking system is safe and strong.
5. Maximum Lifespan: All components are made of quality extruded aluminum and stainless steel.

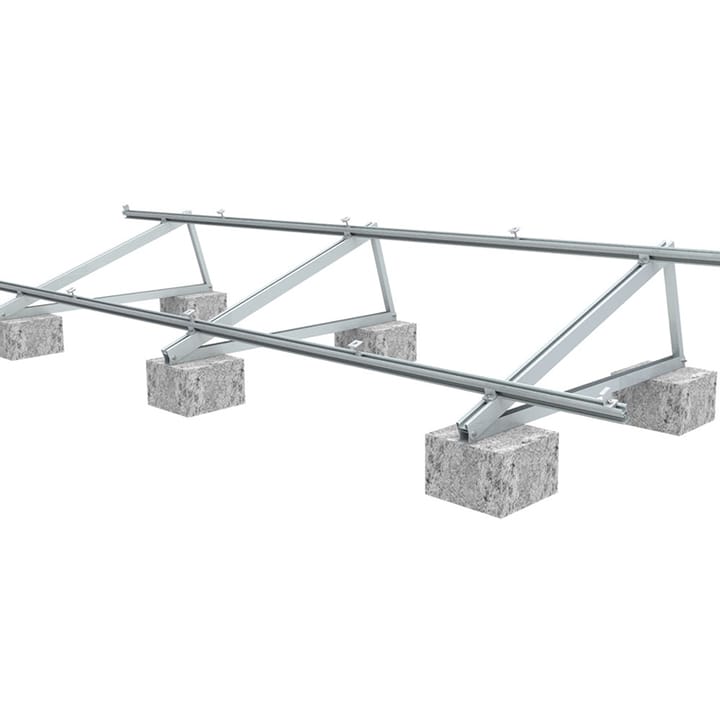

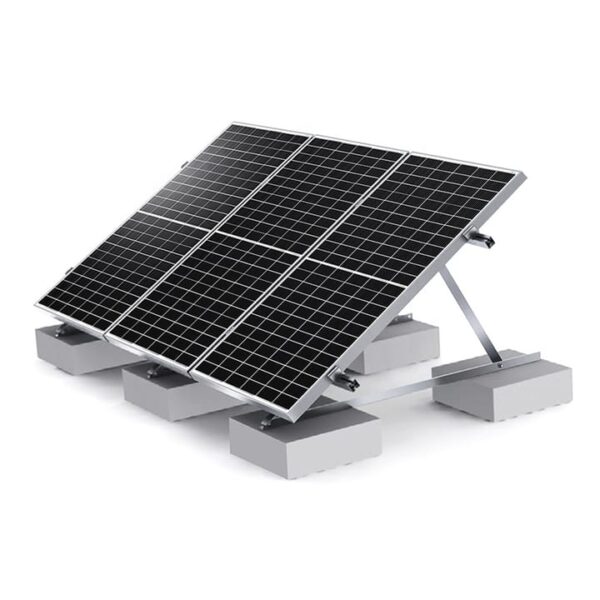

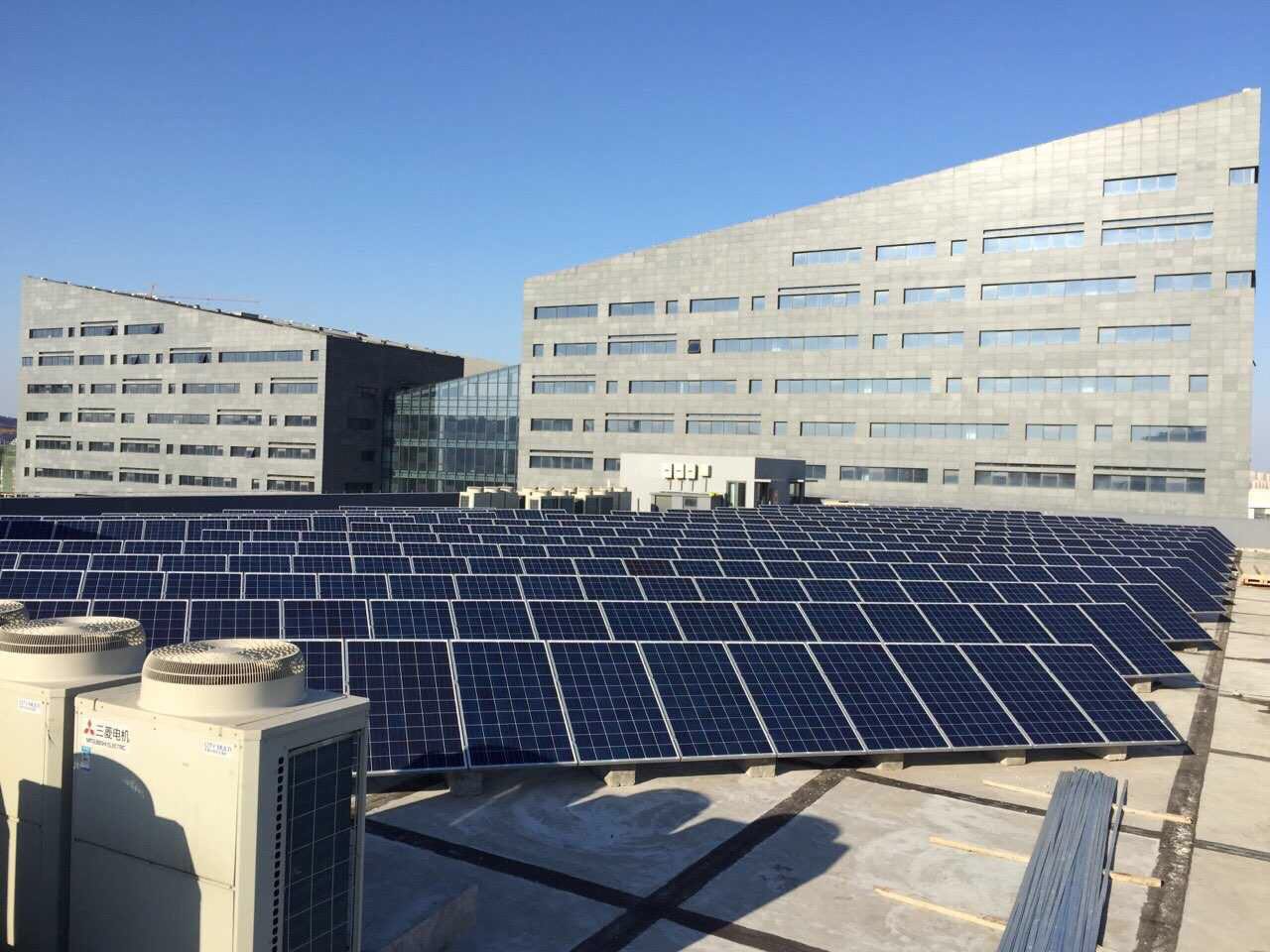

Flat Roof
|
Installation Site
|
Flat roof
|
|
Installation Angle
|
5°,10°
|
|
Wind speed
|
<45m/s
|
|
Snow load
|
<1.2kN/m2
|
|
Build Height
|
<20m
|
|
Material
|
AI 6063-T5 & SUS304 / Q235 HDG
|
|
Surface treatment
|
Anodizing
|
|
Refer to standard
|
GB50009,JIS C8955,DIN1055
|
|
Warranty
|
10years , 25 years service life
|
Pitched Roof
|
Installation Site
|
Pitched roof
|
|
Installation Angle
|
Parallel to the roof
|
|
Wind speed
|
<42m/s
|
|
Snow load
|
<1.2kN/m2
|
|
Build Height
|
<20m
|
|
Material
|
AI 6063-T5 & SUS304
|
|
Surface treatment
|
Anodizing
|
|
Refer to standard
|
GB50009,JIS C8955,DIN1055
|
|
Warranty
|
10years , 25 years service life
|
|
Installation Site
|
Ground
|
|
Installation Angle
|
Customized
|
|
Wind speed
|
<45m/s
|
|
Snow load
|
<1.2kN/m2
|
|
Build Height
|
<20m
|
|
Material
|
Q235B
|
|
Surface treatment
|
HDG
|
|
Refer to standard
|
GB50009, DIN1055
|
|
Warranty
|
10years , 25 years service life
|
