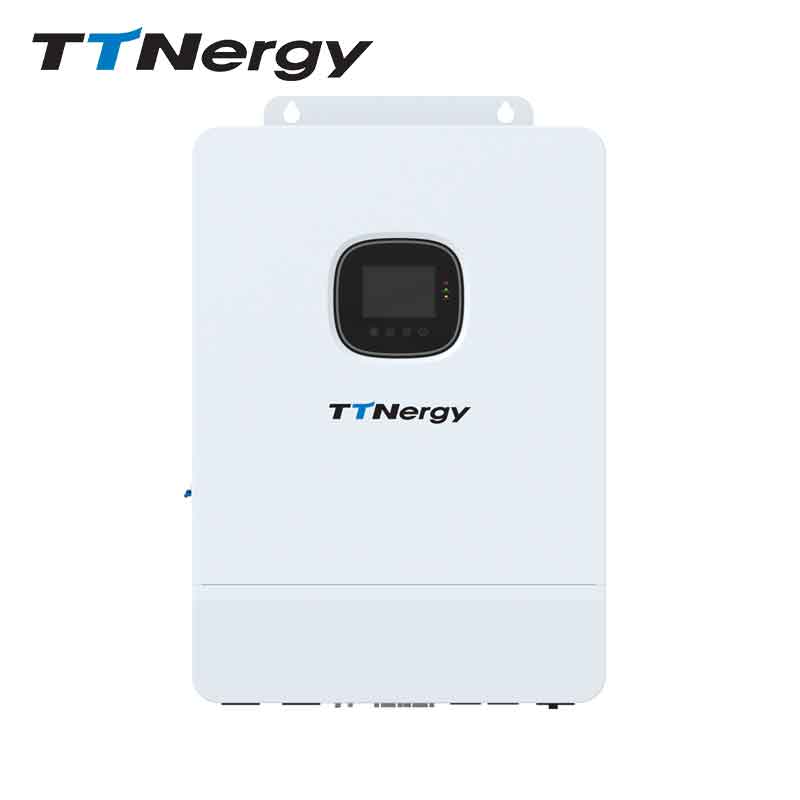

SPICE series 400V 8～12kW EU Solar storage inverter
Sale!
SPICE series 400V 8～12kW EU Solar storage inverter
Additional information
| Dimensions | 620 * 445 * 130mm |
|---|---|
| Weight | 27kg |
| Protection Degree | IP20，indoor only |
| Ambient Temp | -10~55℃, >45℃ derated |
| Noise | <60dB |
| Cooling Method | Air cooling |
| Warranty | 18 months |
Product Information
Efficency
● Advanced MPPT technolgy with up to 99.9% afhciancy
● Up to 22+22A Pvinput cument
Safety
● Comprehansive security from hardware to software
● Multiple safety cartifcations
All in one
● Up to 260A charging current
● Support Li-ion battery BMs communication
Reliable
● Outputs high quality pure sine wave Ac power
● Up to 12kW load power formost household neads
User-Friendly
● Industrial dasign with a modem aasthetic look
● Easy to install and simple to use
Intelligent
● Exclusive Li-ion battery BMS dual activation
● Time-slot function to save cost
| Model | SPICE-8K-H3 | SPICE-10K-H3 | SPICE-12K-H3 | Can Be Set |
| Inverter Output | ||||
| Rated Output Power | 8,000W | 10,000W | 12,000W | |
| Max. Peak Power | 16,000W | 20,000W | 24,000W | |
| Rated Output Voltage | 400 Vac, three-phase | √ | ||
| Capacity of Motor Load | 5 HP | 6 HP | 6 HP | |
| Rated Frequency | 50/60Hz | √ | ||
| Output Waveform | pure sine wave | |||
| Switching Time | 10ms（typical） | |||
| Battery | ||||
| Battery Types | Li-ion / Lead-Acid / User Defned | √ | ||
| Rated Battery Voltage | 8Vdc | |||
| Voltage Range | 40～60Vdc | √ | ||
| Max. PV Charging Current | 180A | 220A | 260A | √ |
| Max. Utility / Generator Charging Current | 100A | 120A | 120A | √ |
| Max. Hybrid Charging Current | 180A | 220A | 260A | √ |
| PV INPUT | ||||
| No. of MPPT | 2 | |||
| Max. Input Power | 6,000W | 7,500W | 9,000W | |
| Max. Input Current | 22A | |||
| Max. Open-circuit Voltage | 800Vdc | |||
| MPPT Operating Voltage Range | 200～650Vdc | |||
| Utility / Generator Input | ||||
| Input Voltage Range | phase voltage 170~280V, line voltage 305~485V | |||
| Input Frequency Range | 50/60Hz | |||
| Bypass Overload Current | 63A | |||
| Efficiency | ||||
| MPPT Tracking Efciency | 99.90% | |||
| Max. Battery Inverter Efciency | ≥92% | |||
| European Efciency | 97.20% | 97.50% | 97.50% | |
| Communication | ||||
| Internal Interface | RS485 / CAN / USB / Dry contact | √ | ||
| External Module (optional) | Wi-Fi / GPRS | √ | ||
| Certification | ||||
| Safety | IEC62109-1, IEC62109-2,UL1741 | |||
| EMC | EN61000-6-1,EN61000-6-3,FCC15 classB | |||
| RoHS | Yes | |||
