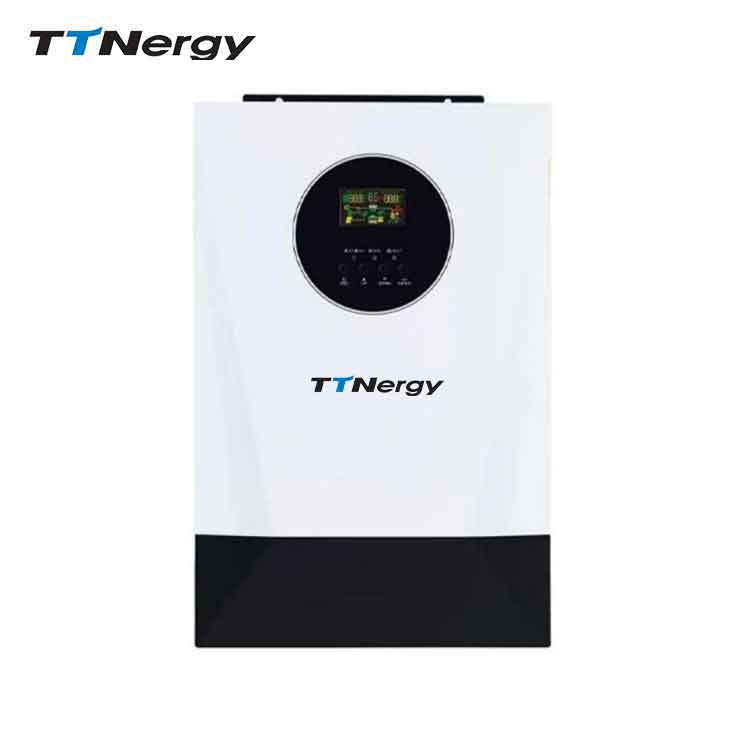

TEX 3-6.2kW parallel solar inverter
Sale!
TEX 3-6.2kW parallel solar inverter
Additional information
| LCD | Can display operating mode/load/input/output |
|---|---|
| RS232 | Baud Rate 2400 |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card.WlFI |
| Operating /storage Temperature | -10℃-50℃ / -15℃-60℃ |
| Ork Altitude | No more than 1000m, if 1000m<,Rate power will lower, MAX 4000m, Refer |
| Operating Environment Humidity | 20%-95% Non Condensing |
| Noise | <50dB |
Product Information
- Lithium Battery Auto-restart Function , More Convenient forLithium Battery Charging
- intelligent Power supply Mode, intelligent Distribution of solar Panel/Mains/BatteryPower Shares
- Utility charging Voltage/pv charging Voltage Adjustable Match Different Battery Charging Requirements
- slim Body, Convenient Installation And Transportation
- Battery Reverse Connection Protection with Fuse Switch, Safer Installation
- PF1.0, High Efficiency,Lower Consumption,Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
- Support Working without Battery: Reduce Solar System Cost
- Parallel Function Up to Maximum 9 Units: Enlarge More Loads
- High Precision of Output Voltage,±5%, Take Care of Your Appliances
- Communication Option: External WiFl, supervise at Any Time
- BMS function for lithium battery
| Model | TEX3.0K | TEX3.6K | TEX5.5KB | TEX6.2KB |
| Ac input | 220/230/240VAC | |||
| Input Voltage Range | 90-280VAC+3V(Normal Mode)185-264VAC+3V(UPS Mode) | |||
| Frequency | 50/60Hz(Adaptive) | |||
| Rated Power | 3000W | 3600W | 5500W | 6200W |
| Output Voltage | 208/220/230/240VAC+5% | |||
| Output Frequency | 50/60Hz+0.1% | |||
| Output Wave | Pure sine Wave | |||
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |||
| Peak Power | 6000VA | 72000VA | 11000VA | 12400VA |
| Overload Ability | Battery Mode :
21s@102%-110% load 10s@10%-130% load 3s@130%-150% load 400ms@>150% load |
|||
| Peak Efficiency(Battery Model) | >94% | |||
| Rated Voltage | 24VDC | 48VDC | ||
| Constant charging Voltage | 28.2VDC | 56.4VDC | ||
| Float charging Voltage | 27VDC | 54VDC | ||
| Pv charging Method | MPPT | |||
| Max Pv input | 3000W | 4200W | 5500W | 6200W |
| MPPT Tracking Range | 40-500VDC | 120-500VDC | 120-500VDC | 120-500VDC |
| MAX Pv Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC |
| MAX Pv Charge Current | 100A | 100A | 100A | 100A |
| MAX Ac Charge current | 60A | 80A | 60A | 80A |
| MAx Charge Current | 100A | 120A | 100A | 120A |
| L*W*H(mm) | 399*285*118mm | 495*312*125mm | ||
| Parallel Interface | Not support Parallel | Support Parallel | ||
