High quality Hybrid Solar Inverter 3600W to 8000W
High quality Hybrid Solar Inverter 3600W to 8000W
Additional information
| Noise | <30dB |
|---|---|
| Output Current | 20.8-35A |
| Type | DC/AC Inverters |
| Weight | 32kg |
| Protection | IP65 |
Product Information

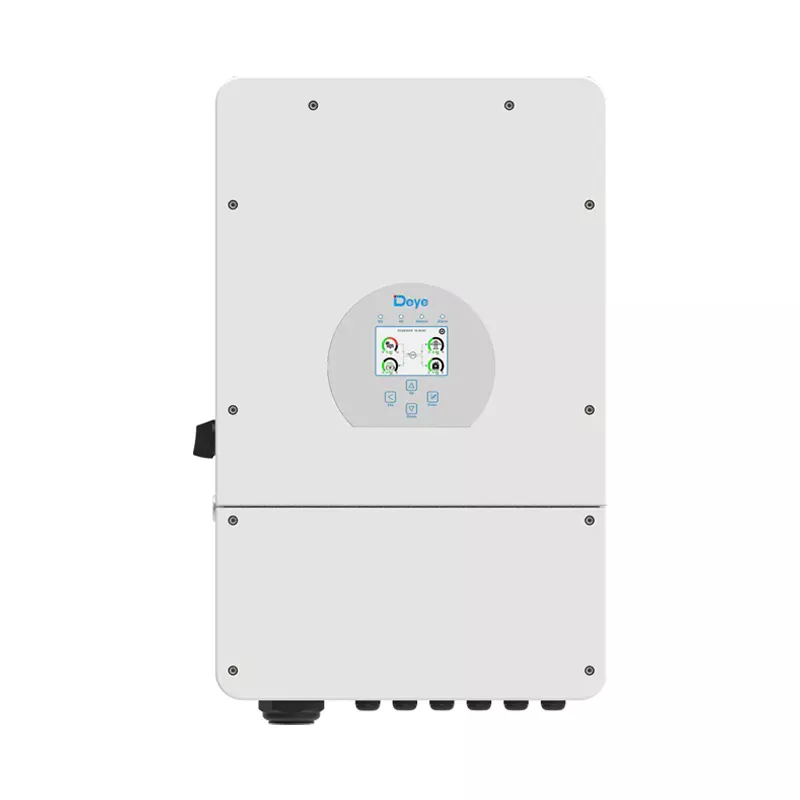

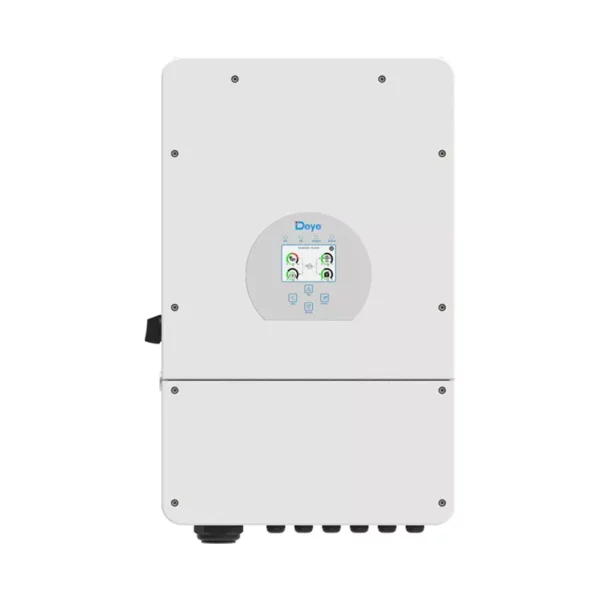

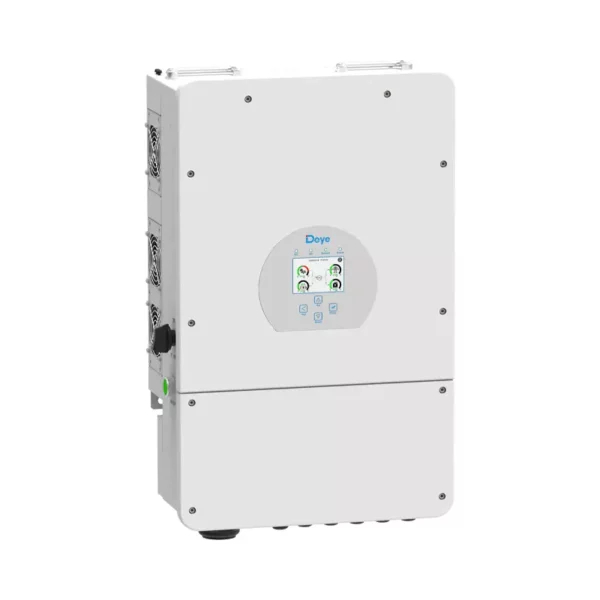

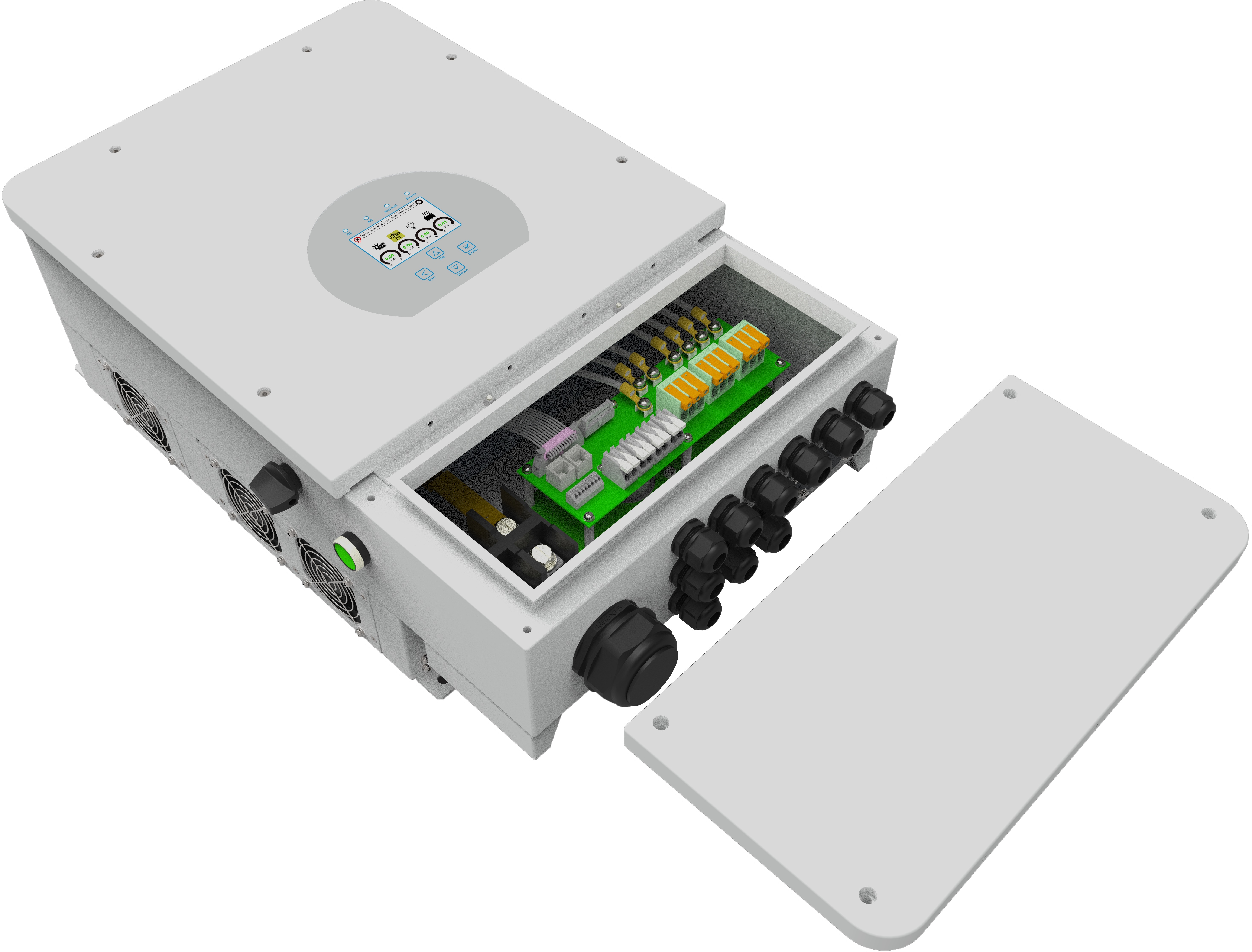

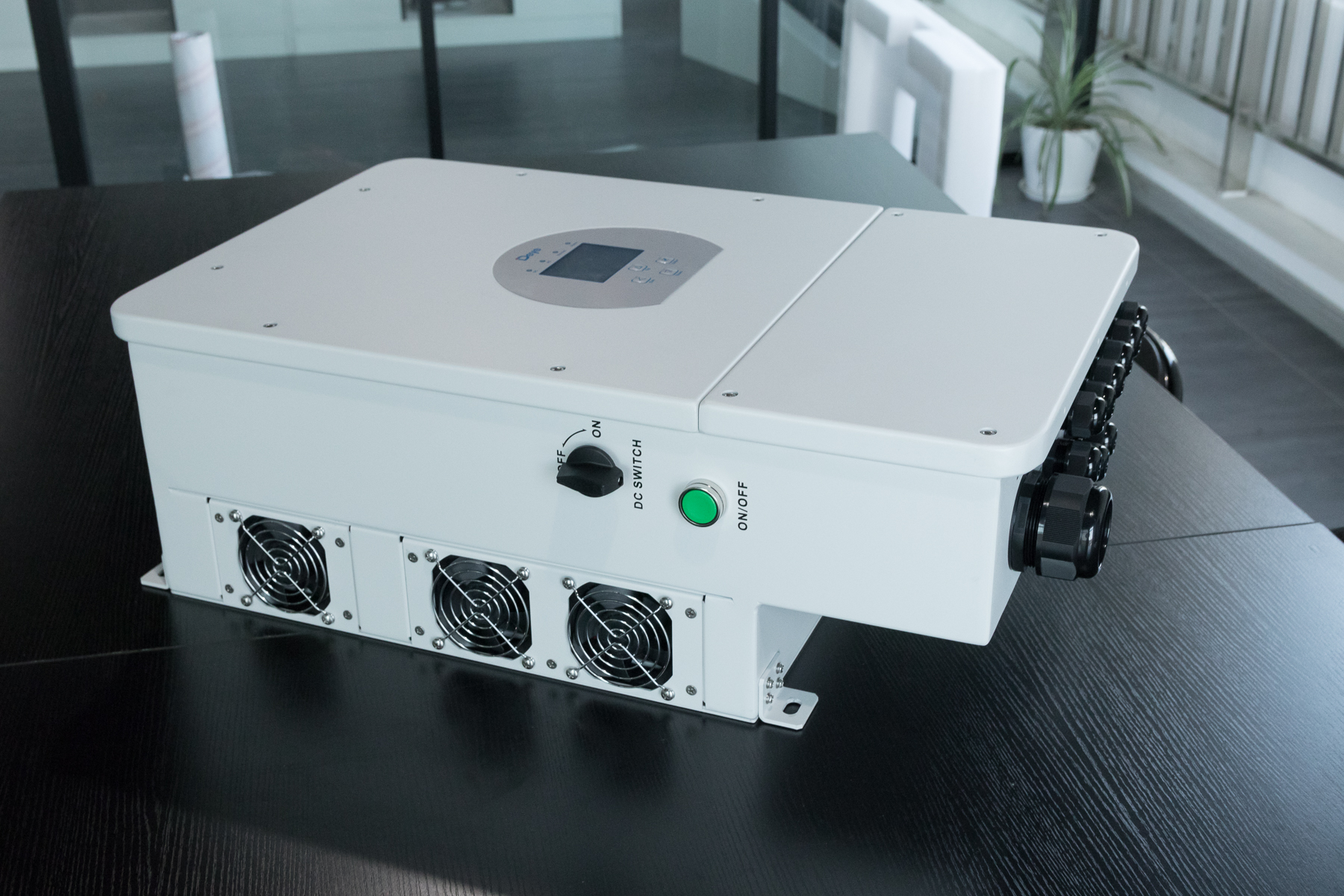

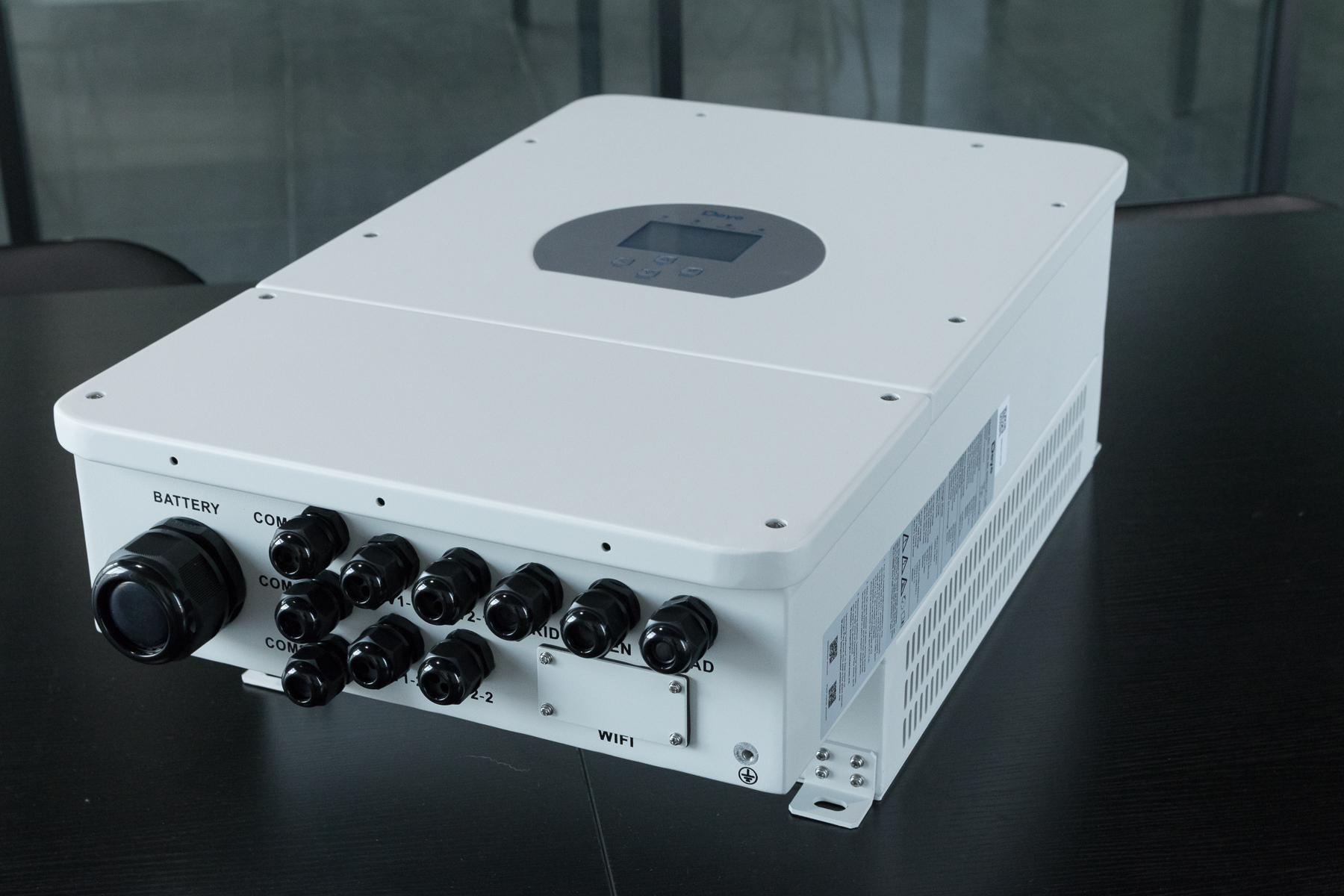

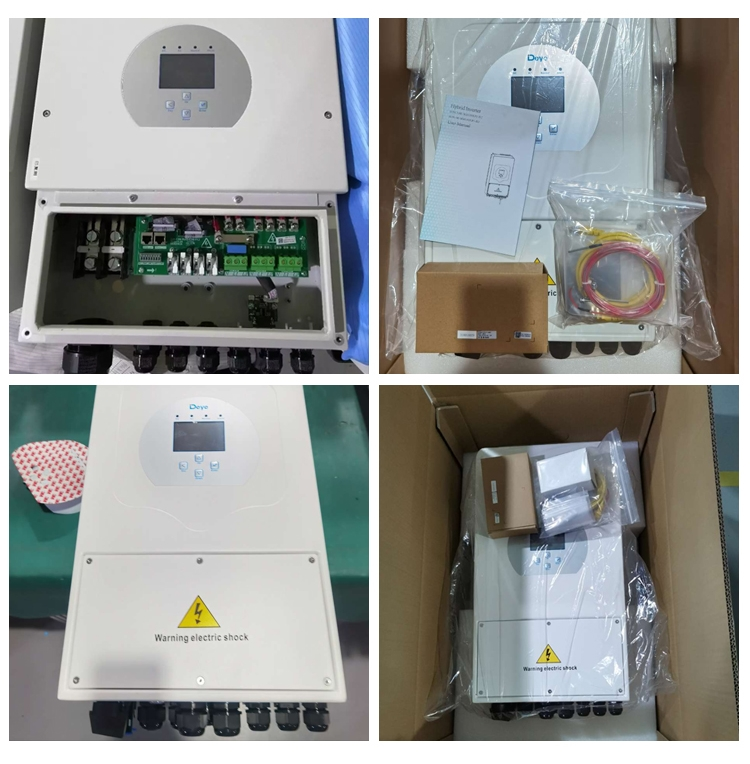

Deye Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Deye hybrid inverters include single-phase 3-16kW and three-phase 8-12kW, For the SUN-3K-SG04LP1-24-EU, it uses a 24V battery bank and the rest of them adopt a 48V battery. Also, the SUN-16K-SG01LP1-EU is the max single-phase hybrid inverter on the global market.The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU | 5-8KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
Higher yields / Safe & Reliable / Smart / User-friendly
The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single-phase and three-phase parallel applications and the Max. parallel units are up to 16 PCs.
* Colorful touch LCD, IP65 protection degree
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* Max.16pcs parallel
* DC coupled and AC coupled to retrofit existing solar system
* Support storing energy from diesel generator
* Max. battery charge efficiency of 95.4%
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
* Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI, and INMETRO, etc.
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* Max.16pcs parallel
* DC coupled and AC coupled to retrofit existing solar system
* Support storing energy from diesel generator
* Max. battery charge efficiency of 95.4%
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
* Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI, and INMETRO, etc.
Remotely shutdown function

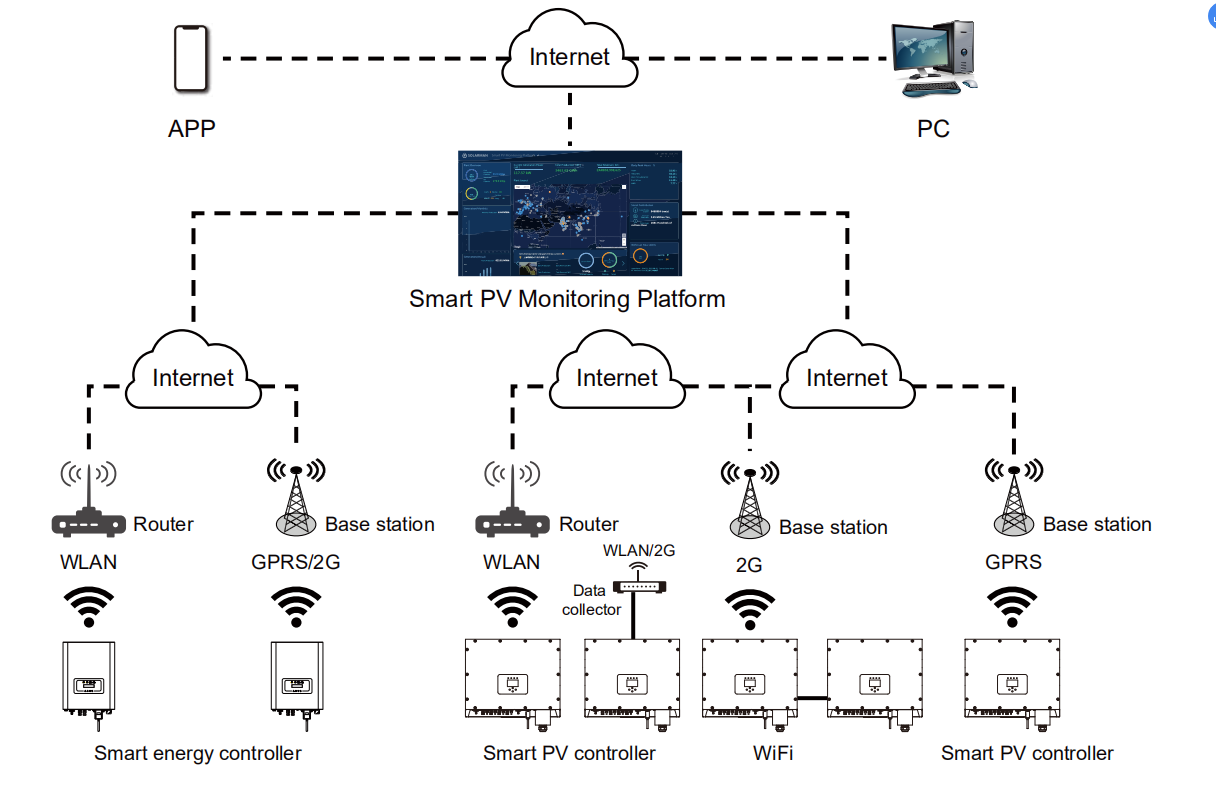

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.
|
Model
|
SUN-5K-
SG01LP1-US |
SUN-6K-
SG01LP1-US |
SUN-7.6K-
SG01LP1-US/EU |
SUN-8K-
SG01LP1-US/EU |
|
Battery Input Data
|
||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|||
|
Battery Voltage Range (V)
|
40~60V
|
|||
|
Max. Charging Current (A)
|
120A
|
135A
|
190A
|
190A
|
|
Max. Discharging Current (A)
|
120A
|
135A
|
190A
|
190A
|
|
Charging Curve
|
3 Stages / Equalization
|
|||
|
External Temperature Sensor
|
Yes
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||
|
PV String Input Data
|
||||
|
Max. DC Input Power (W)
|
6500W
|
7800W
|
9880W
|
10400W
|
|
Rated PV Input Voltage (V)
|
370V(125V～500V）
|
|||
|
Start-up Voltage (V)
|
125V
|
|||
|
MPPT Range (V)
|
150V-425V
|
|||
|
Full Load DC Voltage Range (V)
|
300V-425V
|
200V-425V
|
||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+26A
|
|
|
Max. PV ISC (A)
|
22A+22A
|
44A+22A
|
44A+44A
|
|
|
Number of MPPT Trackers
|
2
|
|||
|
Number of Strings per MPPT Tracker
|
1
|
2+1
|
2
|
|
