TTN Hybrid Solar Power Inverter MPPT Solar Charge Controller 5.5KW 48V 100A IP65 Waterproof Off Grid wechselrichter with WIFI
TTN Hybrid Solar Power Inverter MPPT Solar Charge Controller 5.5KW 48V 100A IP65 Waterproof Off Grid wechselrichter with WIFI
Additional information
| Output Frequency | 50Hz/ 60Hz |
|---|---|
| Input Voltage | 200/210/220/230/240Vac |
| Output Current | 100A |
| Output Type | Single |
| Size | 556*345*182 |
| Inverter Efficiency | 95% |
| Weight | 20kg |
Product Information

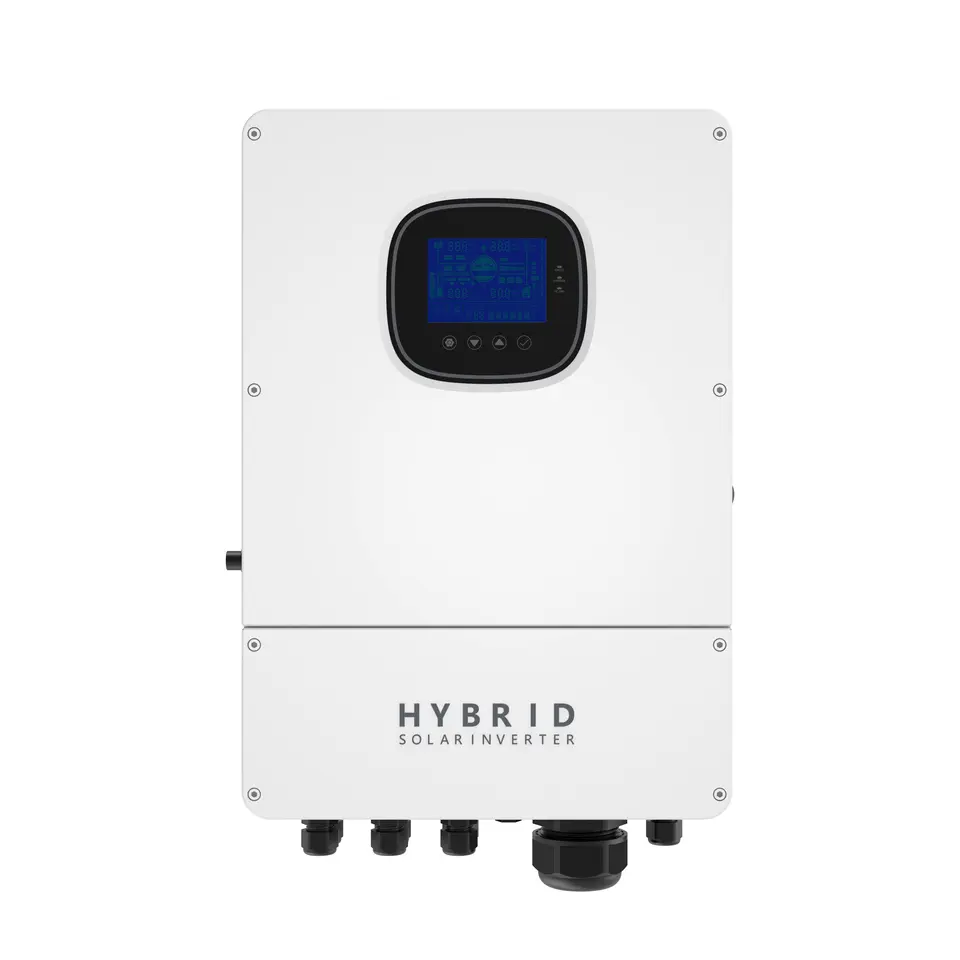

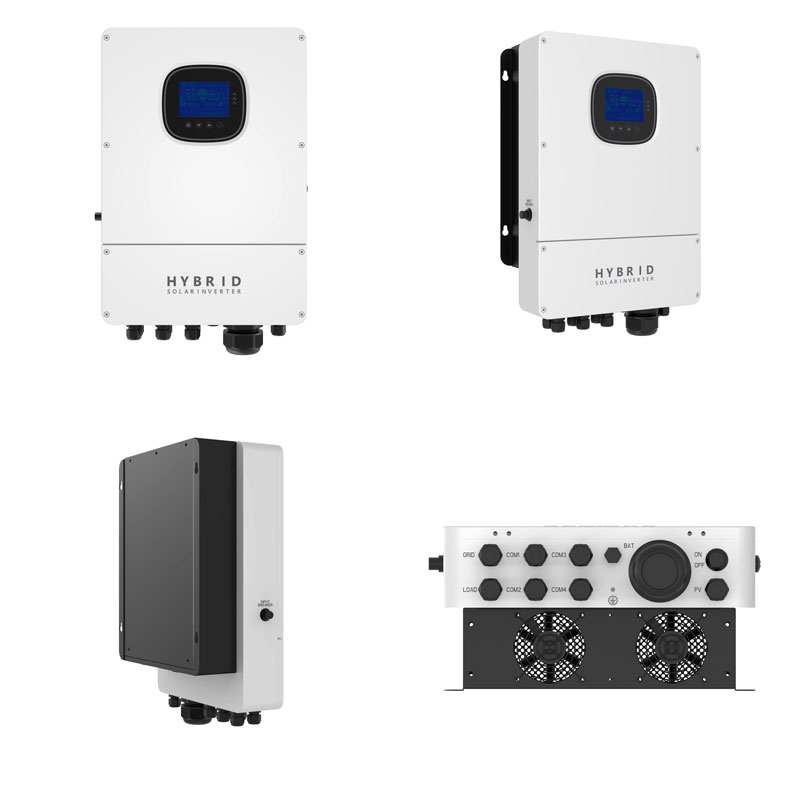

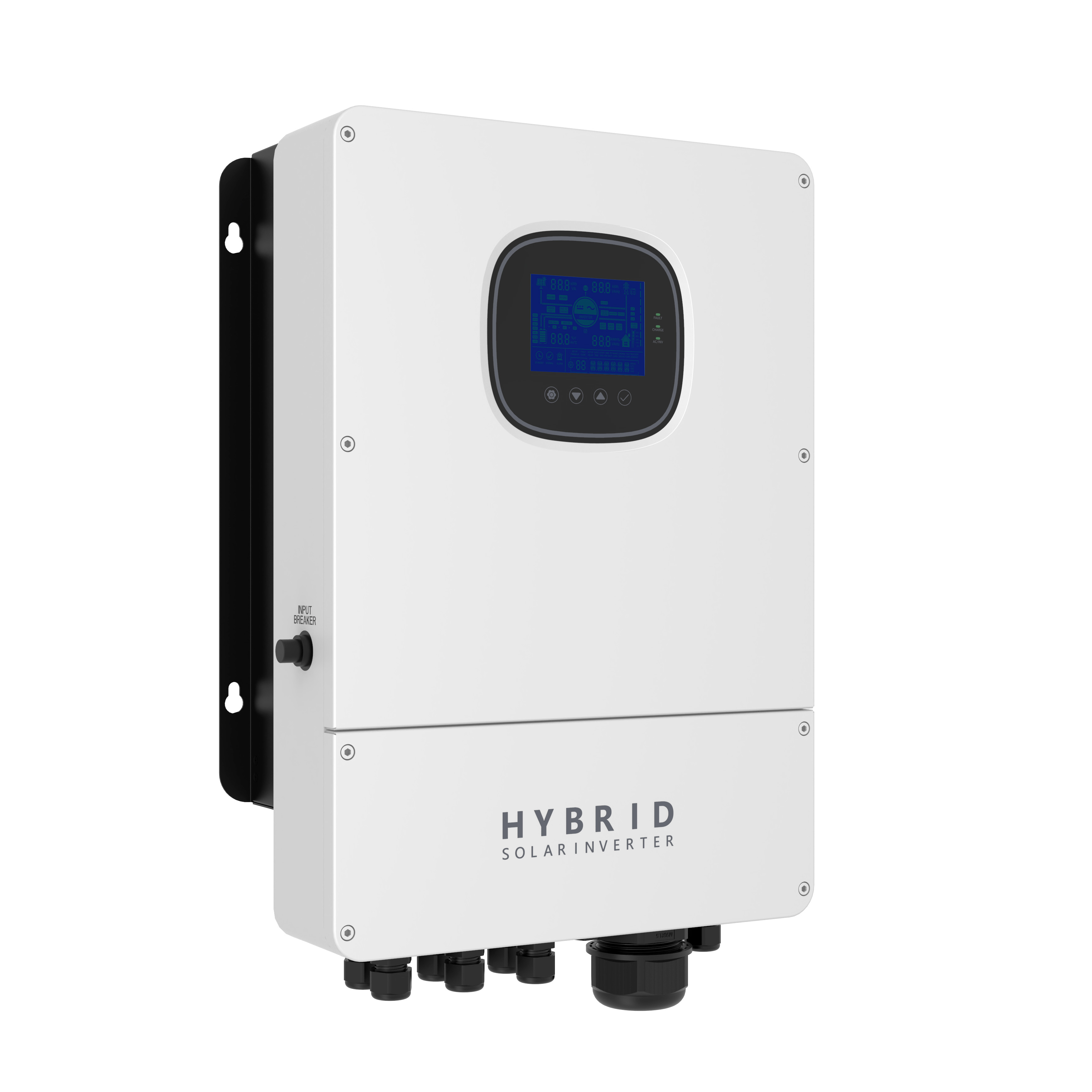

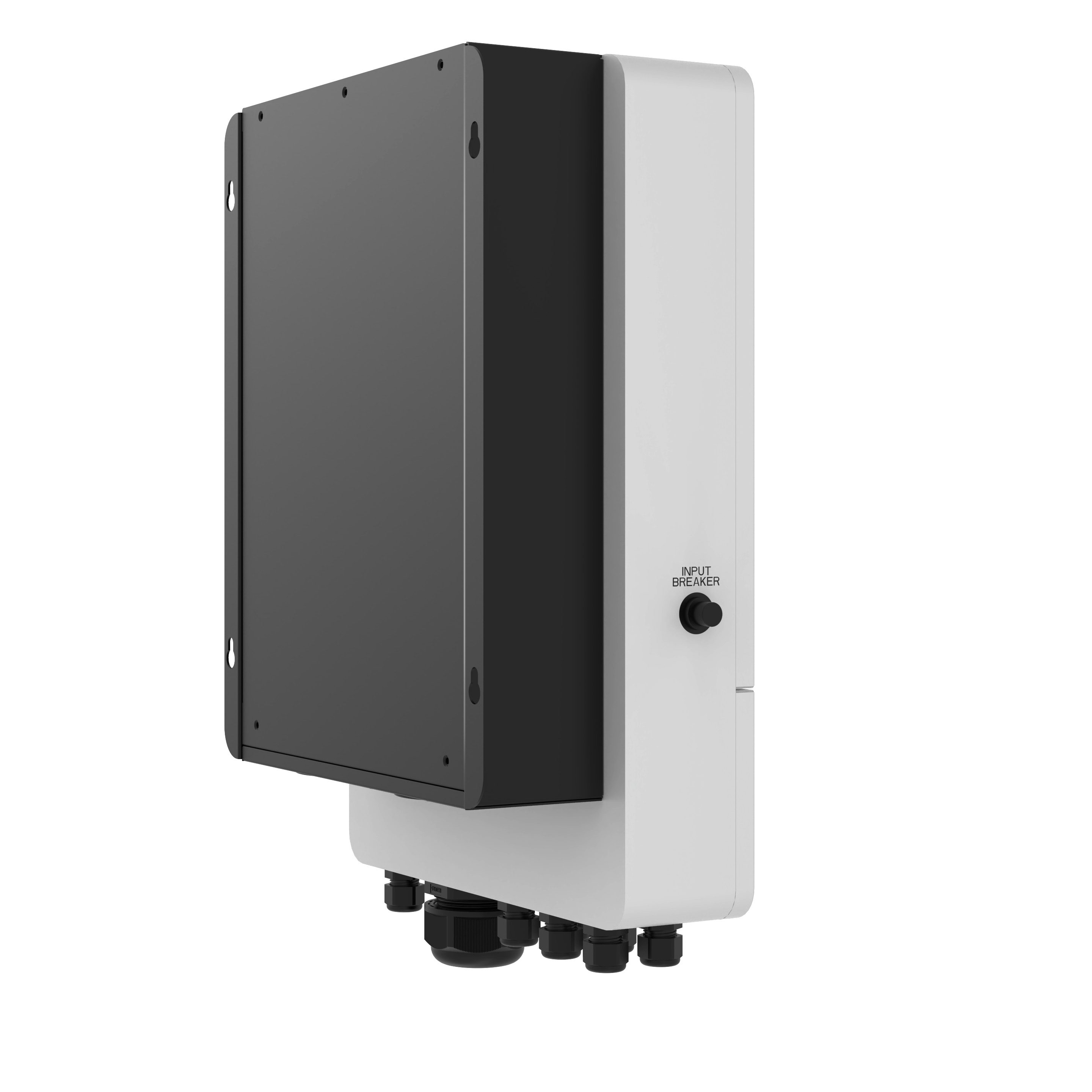

TTN Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid Solar Power inverter are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity altogether.
The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.

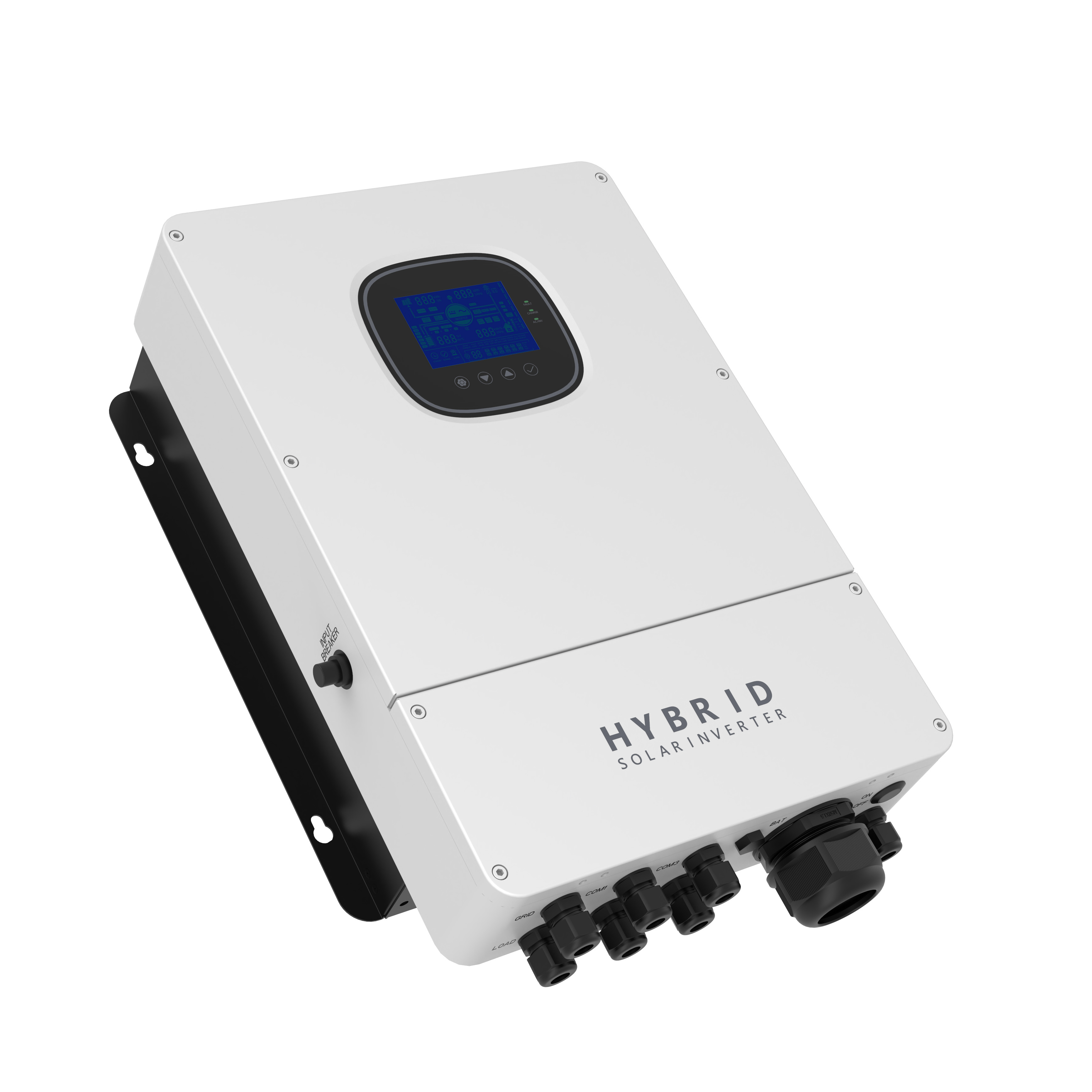

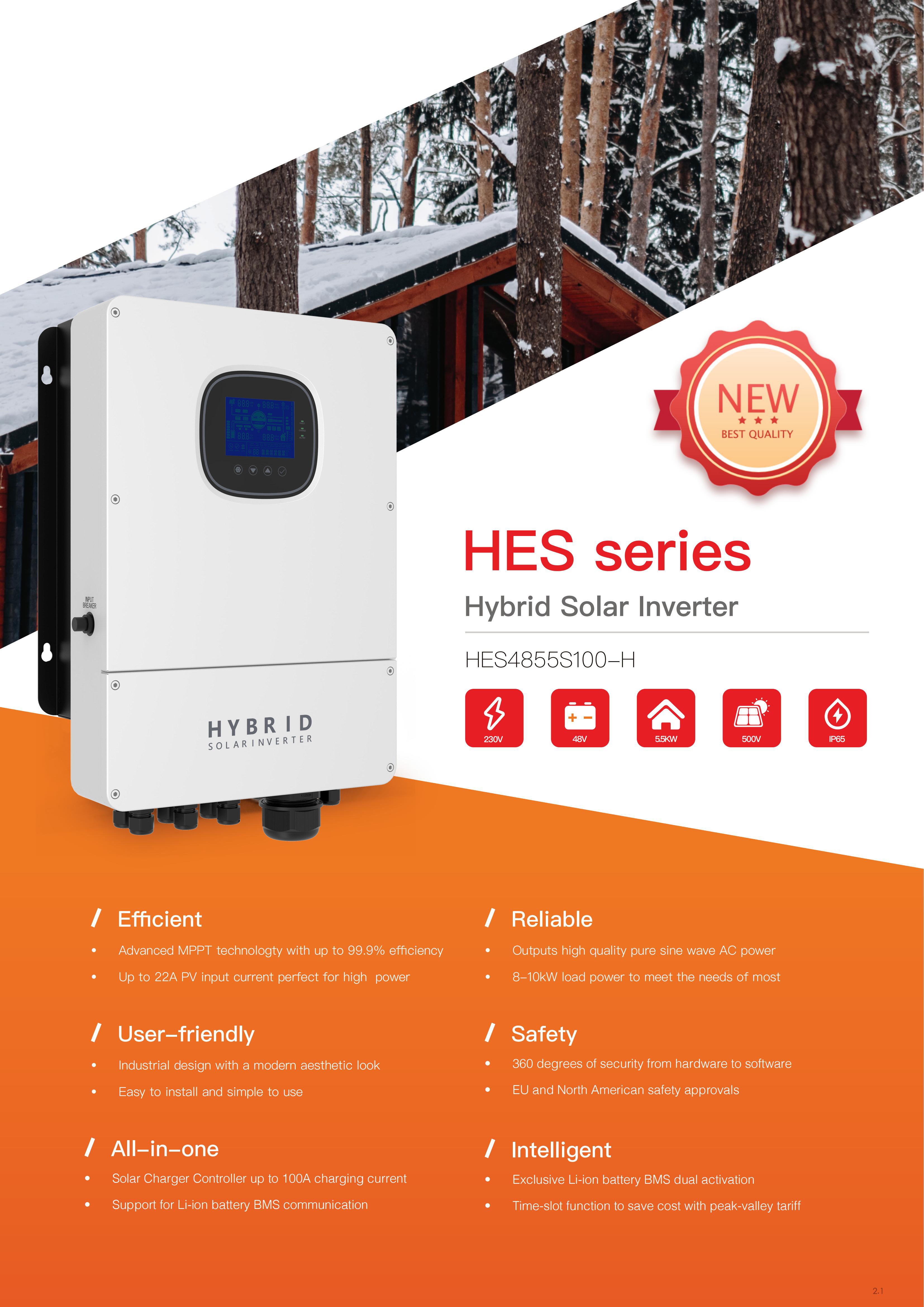

TTN-HES 5500W
Higher yields / Safe & Reliable / Smart / User-friendly

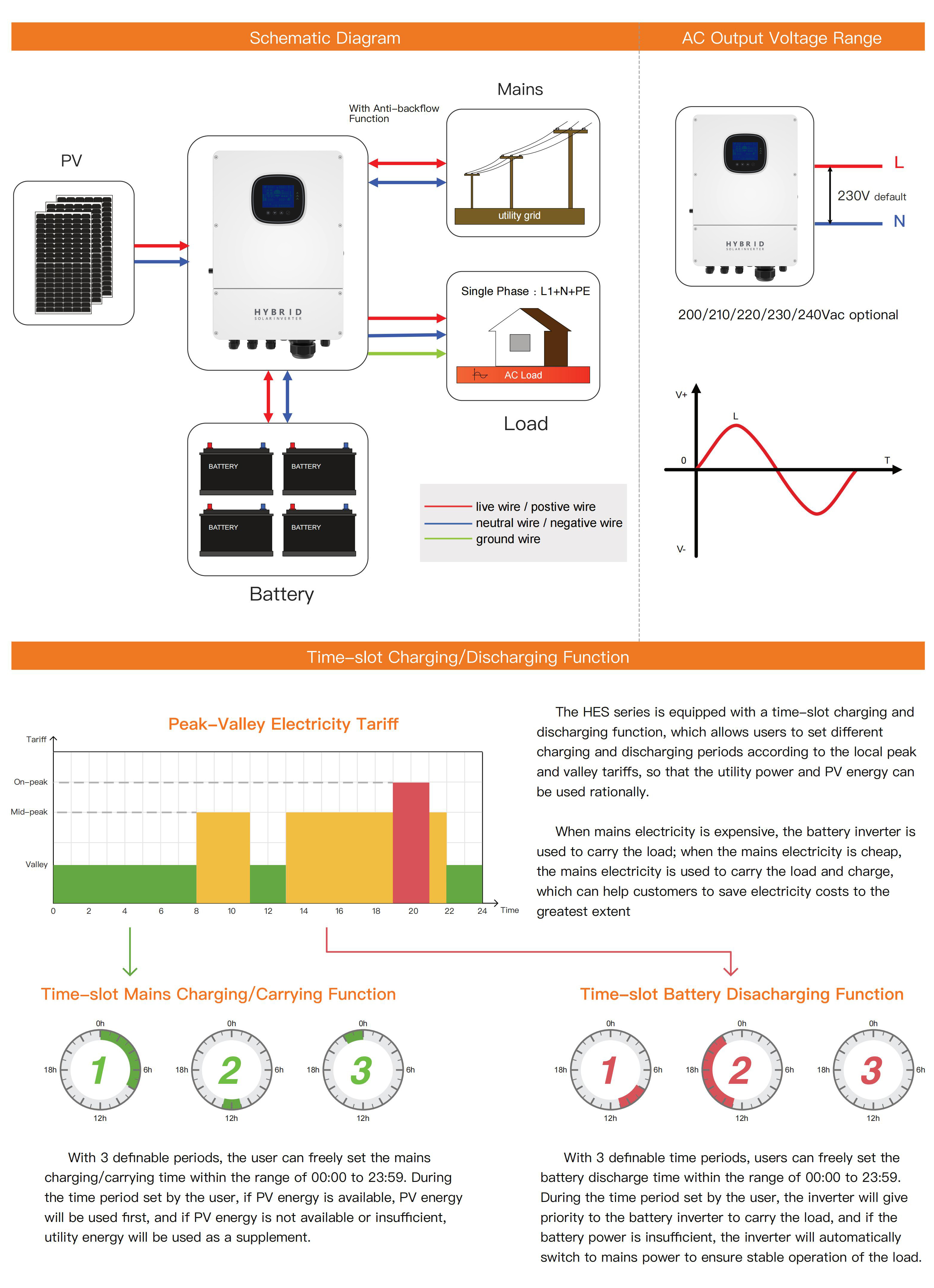

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
|
MODEL
|

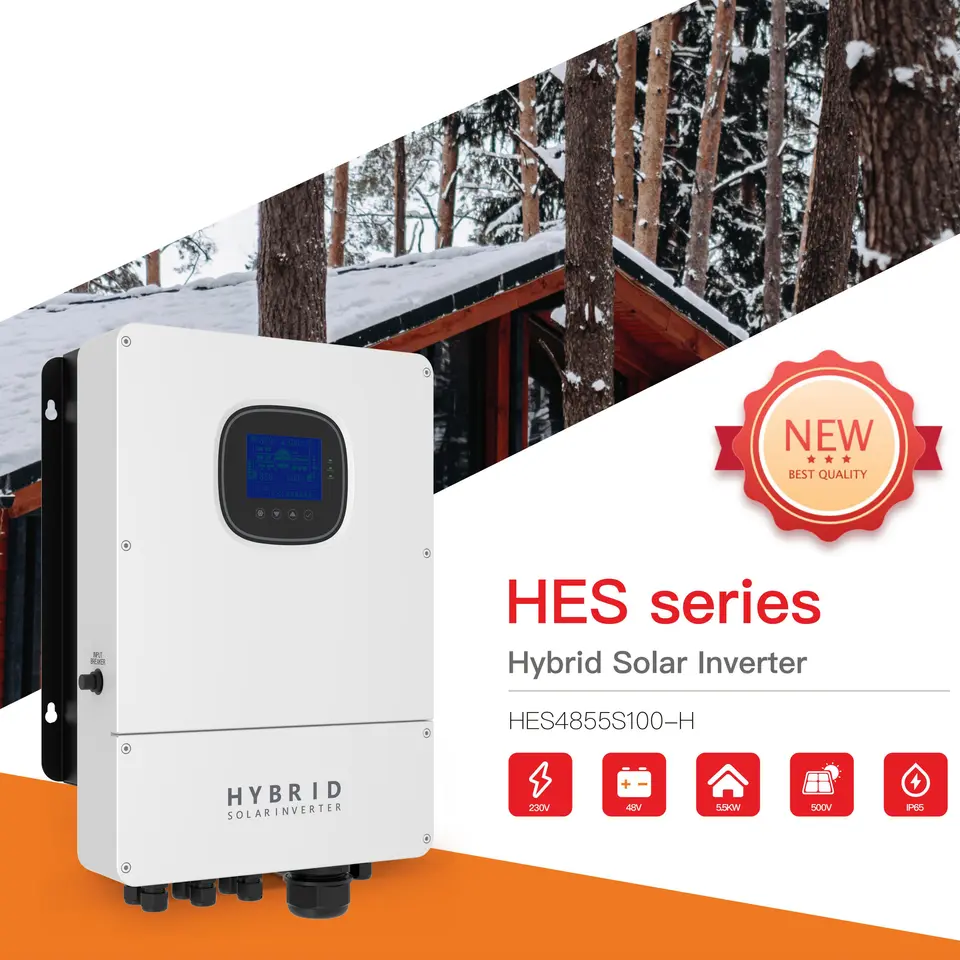

HES4855S100-H
|
|
INVERTER OUTPUT
|
|
|
Rated Output Power
|
5,500W
|
|
Max.Peak Power
|
11,000W
|
|
Rated Output Voltage
|
230Vac (single-phase L+N+PE)
|
|
Load Capacity of Motors
|
4HP
|
|
Rated AC Frequency
|
50/60Hz
|
|
Waveform
|
pure sine wave
|
|
Switch Time
|
10ms（typical）
|
|
BATTERY
|
|
|
Battery Type
|
Lead-acid / Li-ion / User Defined
|
|
Rated Battery Voltage
|
48V
|
|
Voltage Range
|
40～60Vdc
|
|
Max.MPPT Charging Current
|
100A
|
|
Max.Mains/Generator Charging Current
|
60A
|
|
Max.Hybrid Charging Current
|
100A
|
|
PV INPUT
|
|
|
Num. of MPPT Trackers
|
1
|
|
Max.PV Array Power
|
6,000W
|
|
Max.Input Current
|
22A
|
|
Max.Voltage of Open Circuit
|
500Vdc
|
|
MPPT Voltage Range
|
120~450Vdc
|
|
EFFICIENCY
|
|
|
MPPT Tracking Efficiency
|
99.9%
|
|
Max. Battery Inverter Efficiency
|
>90%
|
|
GENERAL
|
|
|
Dimensions
|
556*345*182mm
|
|
Weight
|
20KG
|
|
Protection Degree
|
IP65
|
|
Operating Temperature Range
|
-25~55℃,>45℃ derated
|
|
Humidity
|
0～100%
|
|

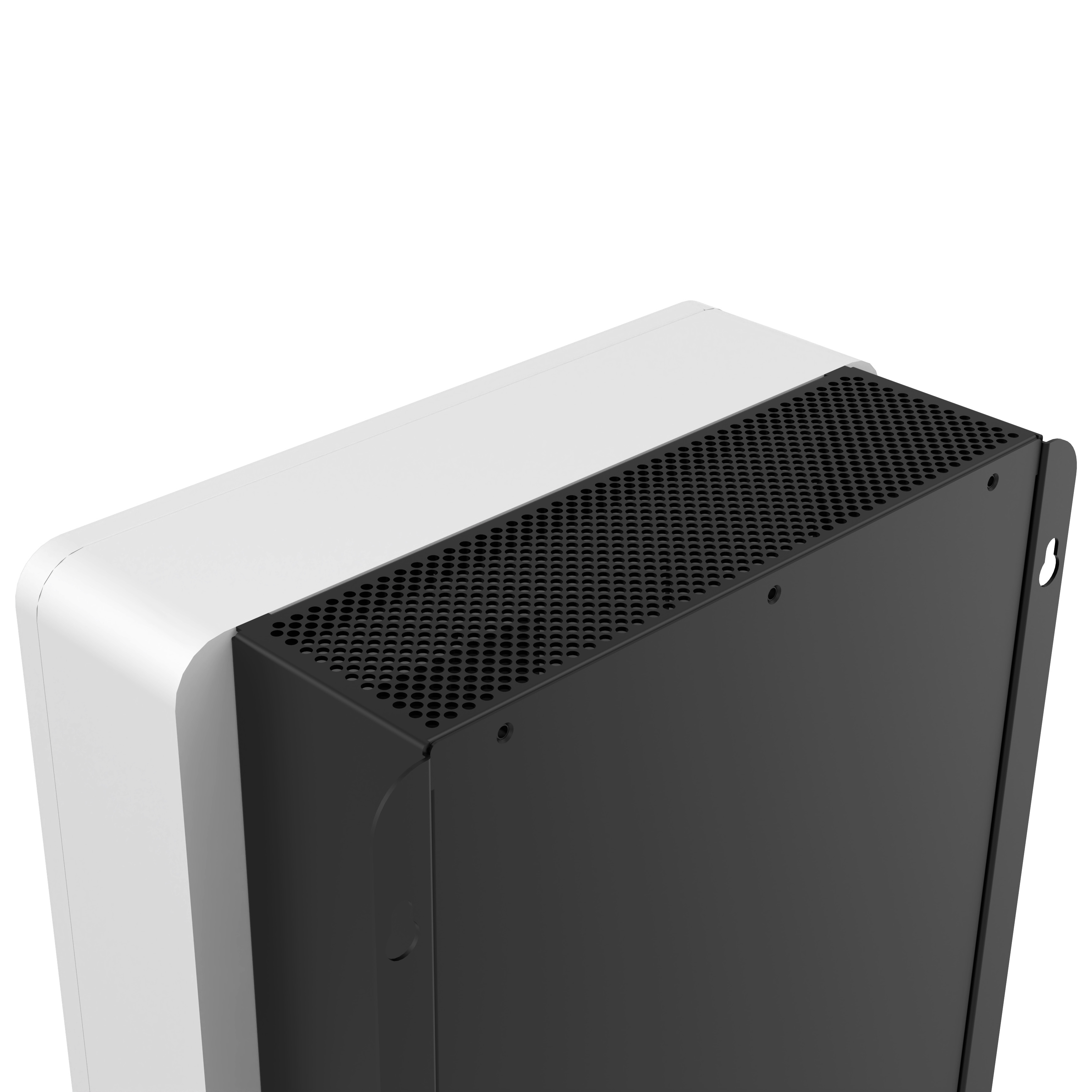

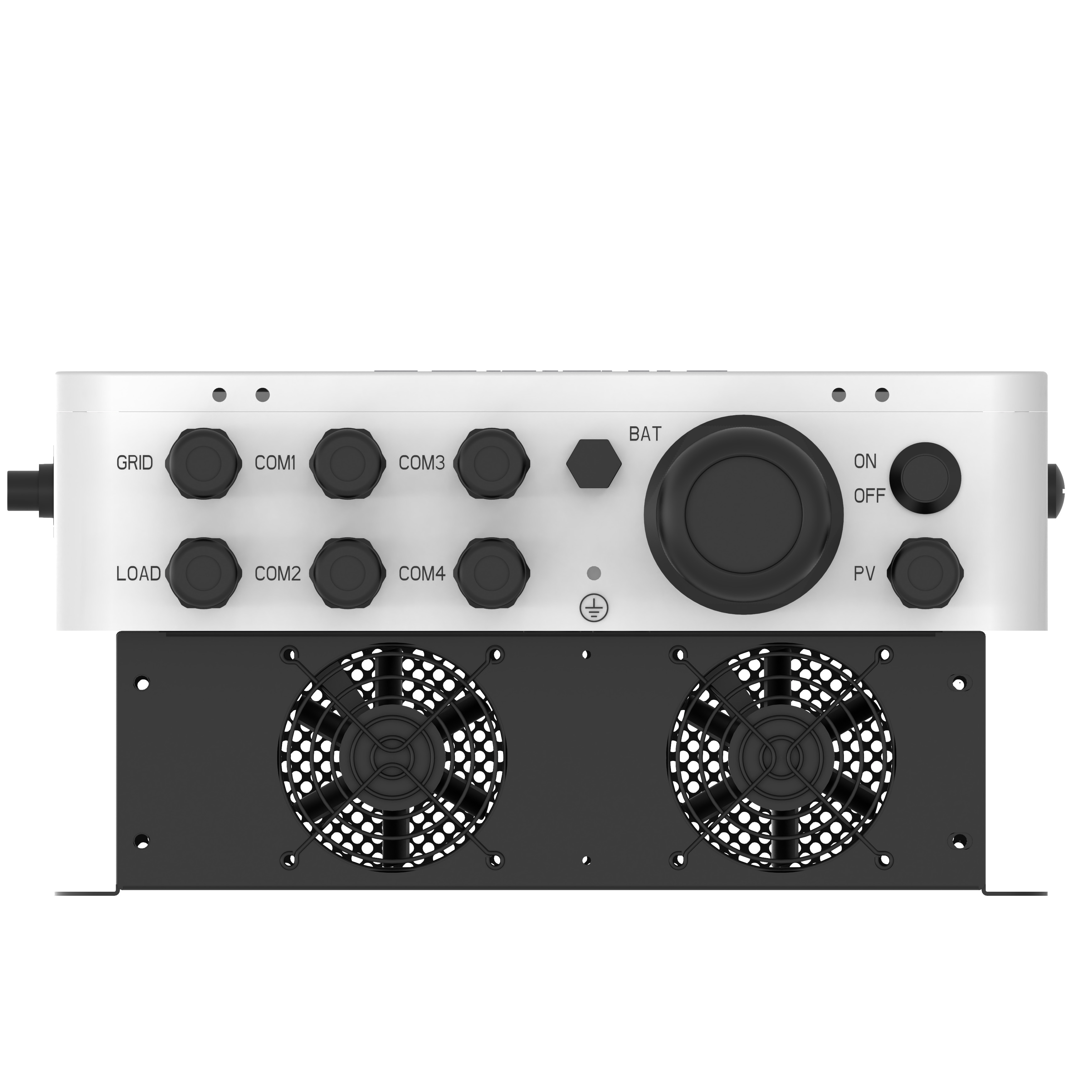

Cooling Method
|
Internal Fan
|
|
Warranty
|
5 years
|
|
Safety
|
IEC62109
|
|
EMC
|
EN61000,FCC part 15
|
Enquiry more about: TTN Hybrid Solar Power Inverter MPPT Solar Charge Controller 5.5KW 48V 100A IP65 Waterproof Off Grid wechselrichter with WIFI
Related Products
Related products
-
Sale!
TEX 3-6.2kW parallel solar inverter
-

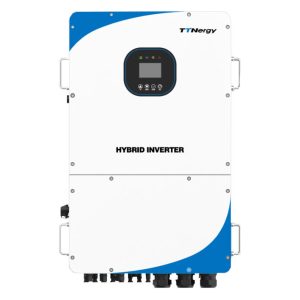

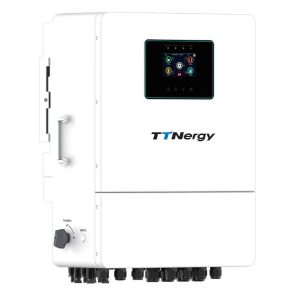

TTNergy On-Grid (TON) Three Phase Solar Inverter 4-15KW
-

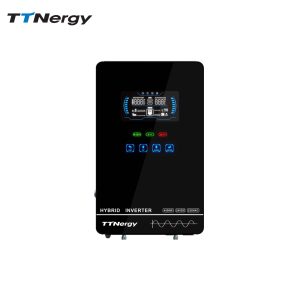

3kva solar inverter 12V 24V Solar Hybrid Inverter Pure Sine Wave Off Grid Inverter for Solar System with PWM solar charger
-
