TTNergy SGPE Solar Power Inverter 300W~8000W
TTNergy SGPE Solar Power Inverter 300W~8000W
Additional information
| Input Voltage | 12VDC/24VDC/48VDC/96VDC |
|---|---|
| Output Voltage | 110VAC±5%/220VAC±5% |
| USB Port | 5V1A |
| Output Efficiency | 94% MAX |
Product Information

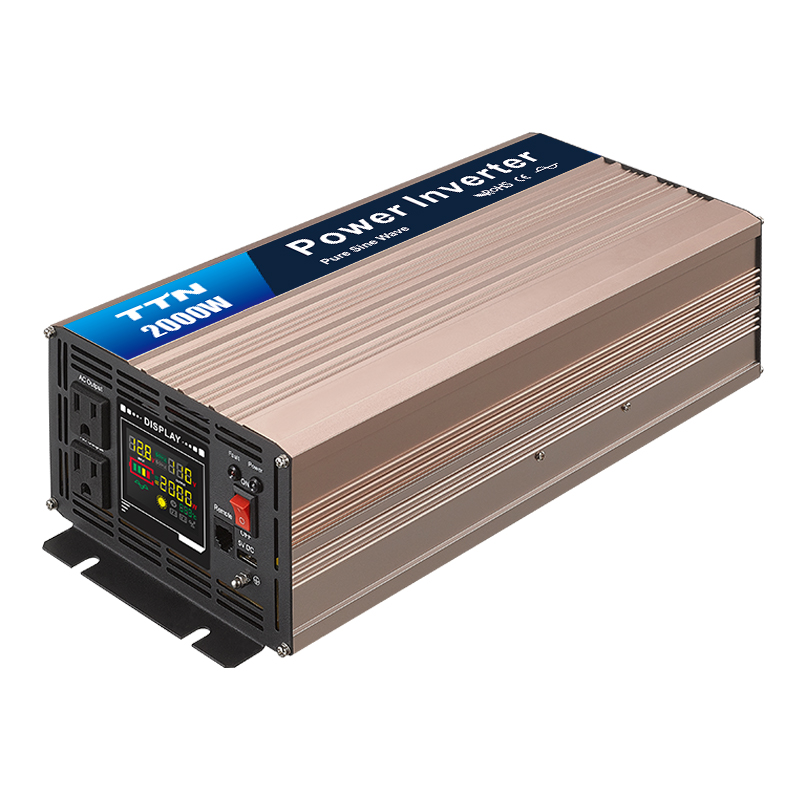

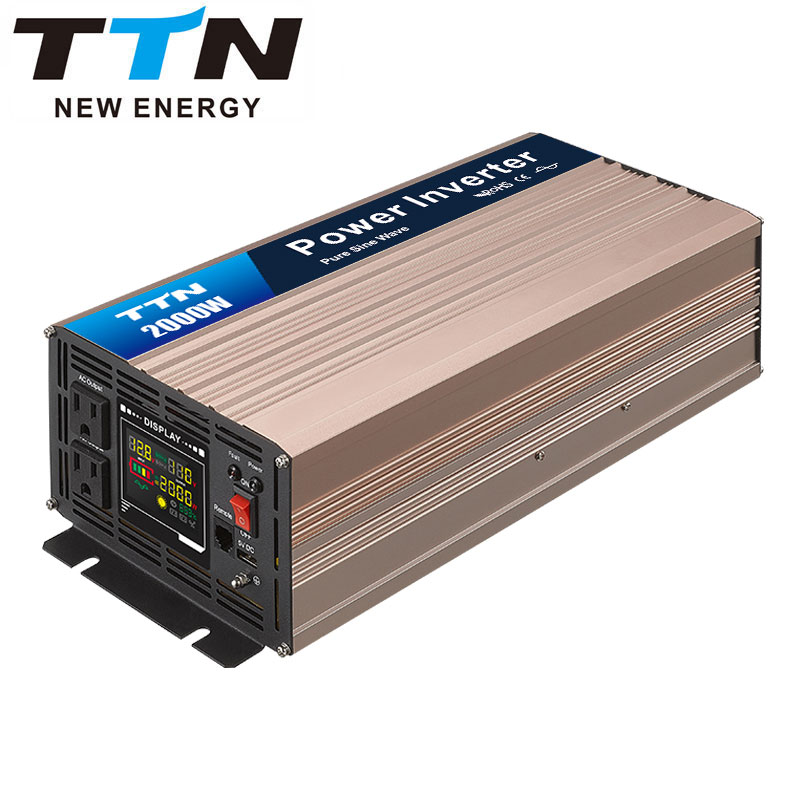

TTNergy Solar Power Inverter

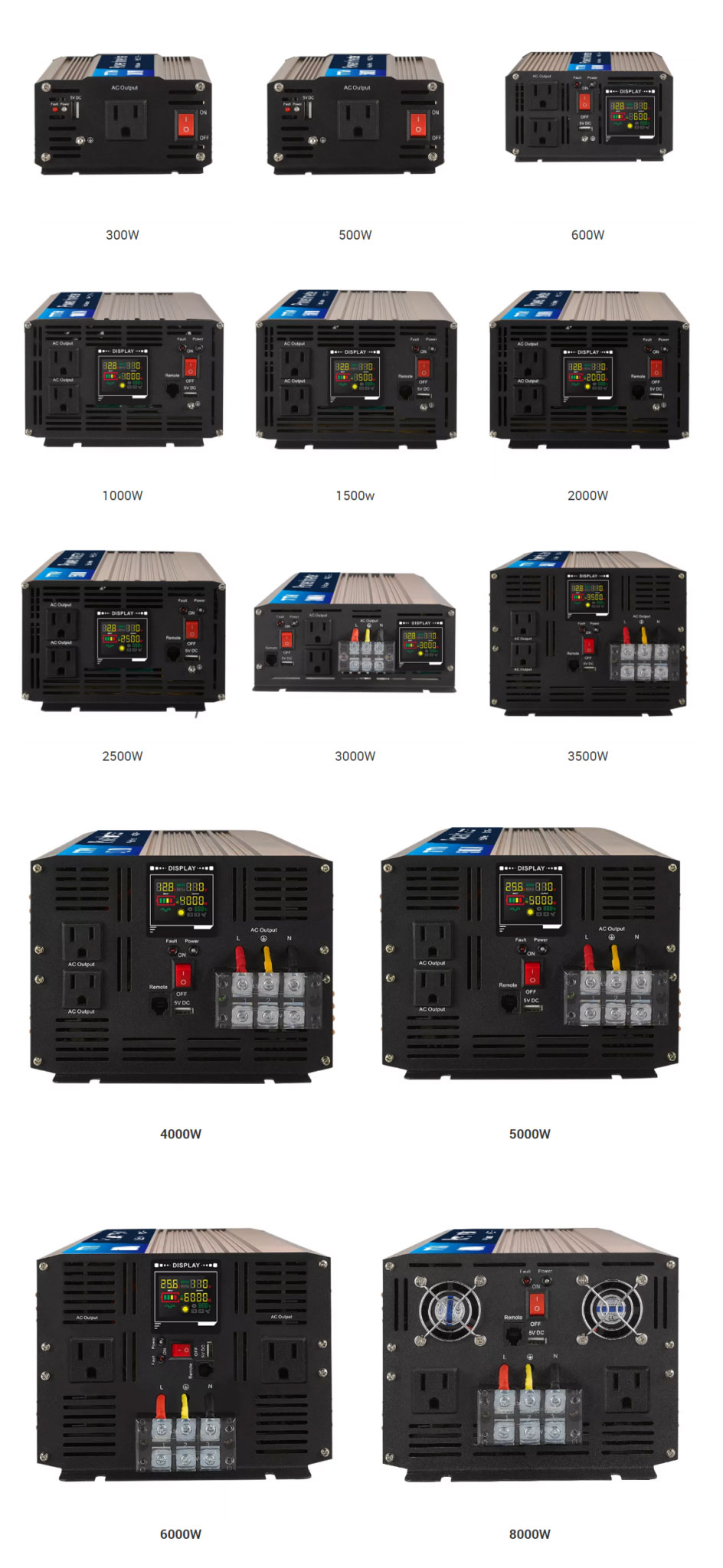

TTN-SGPE 300W / 500W / 600W / 1000W / 1500W / 2000W
2500W / 3000W / 3500W / 4000W / 5000W / 6000W / 8000W
Introduction of Solar Power Inverter:

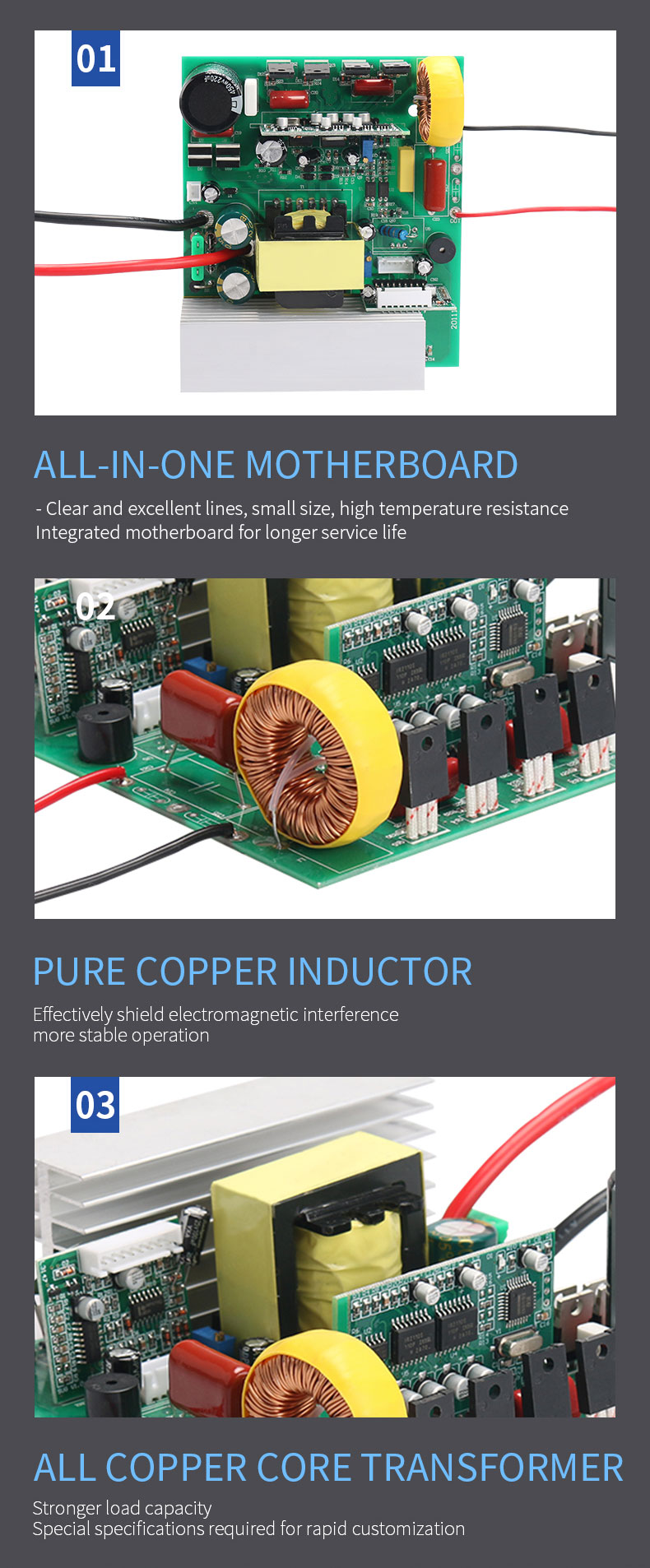

1. This inverter power supply adopts SGPE technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter, high reliability, strong shock resistance, low solder joint defect rate, reducing battery and radio frequency interference.
2. Load adaptability, including inductive load, capacitive load, resistive load, and Hybrid load. High performance at over-load capacity and impact resistance.
3. Eight intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection, over current protection, and insurance protection.

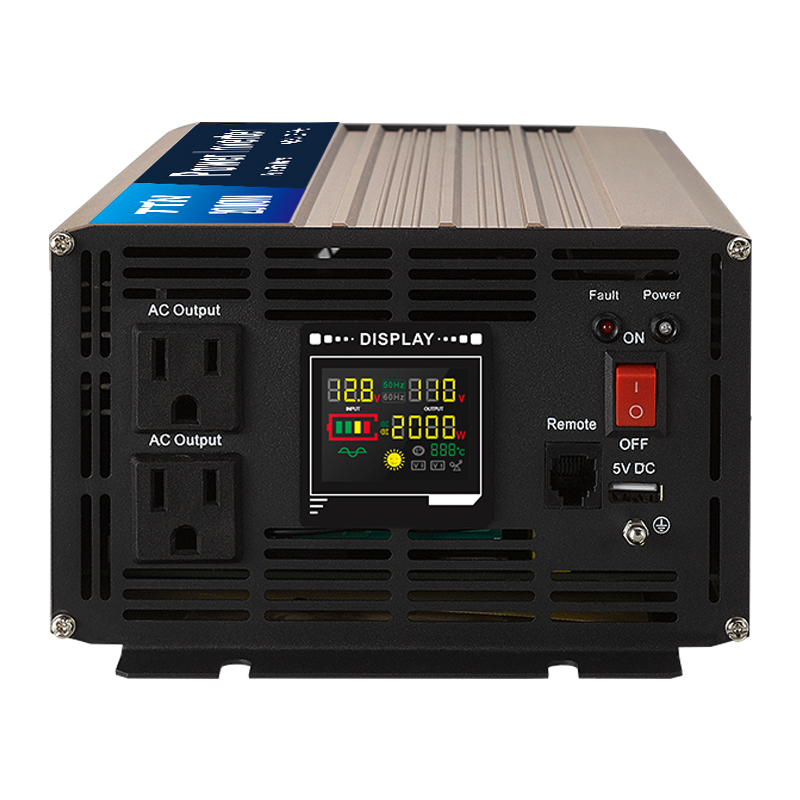

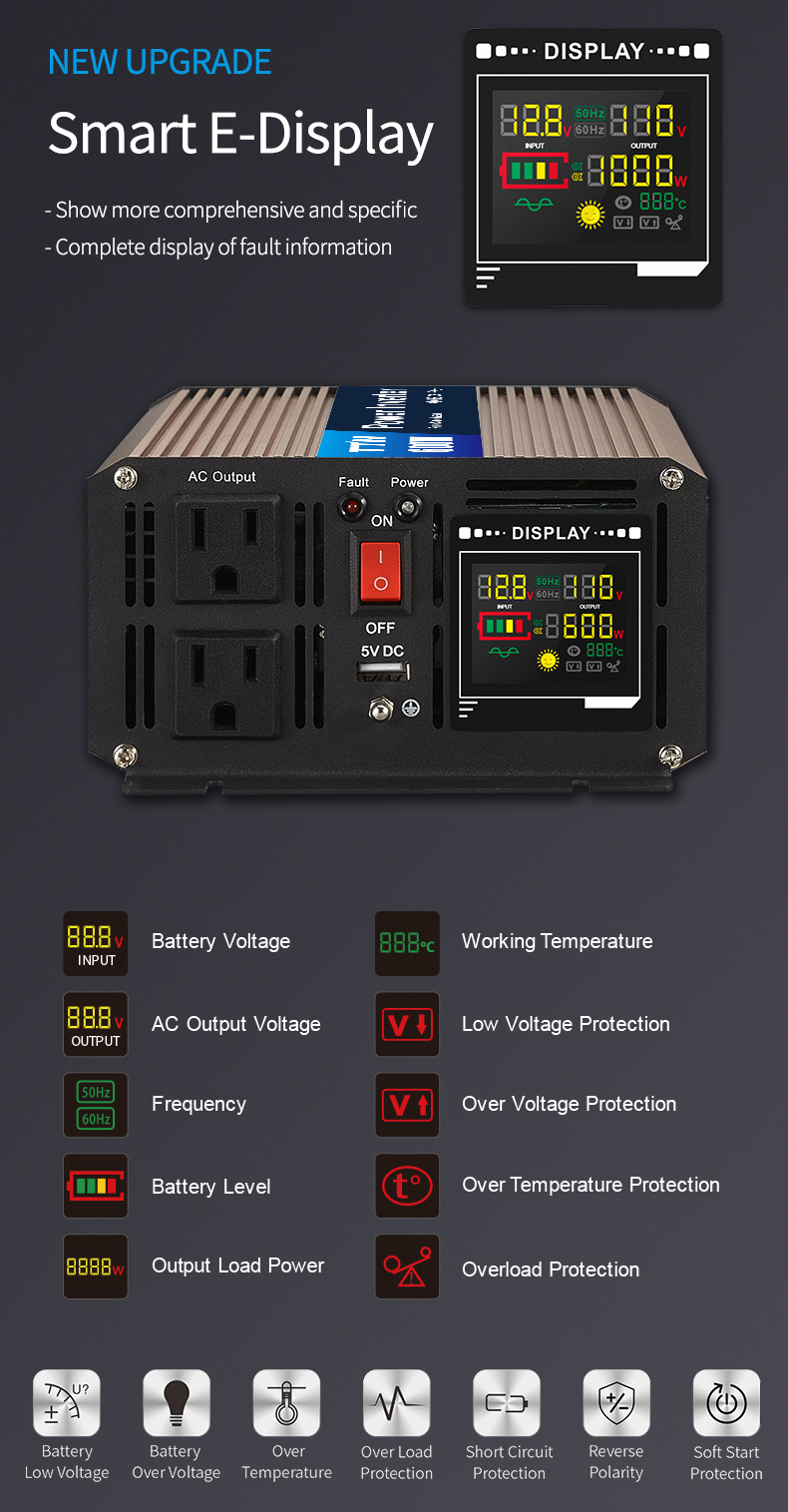

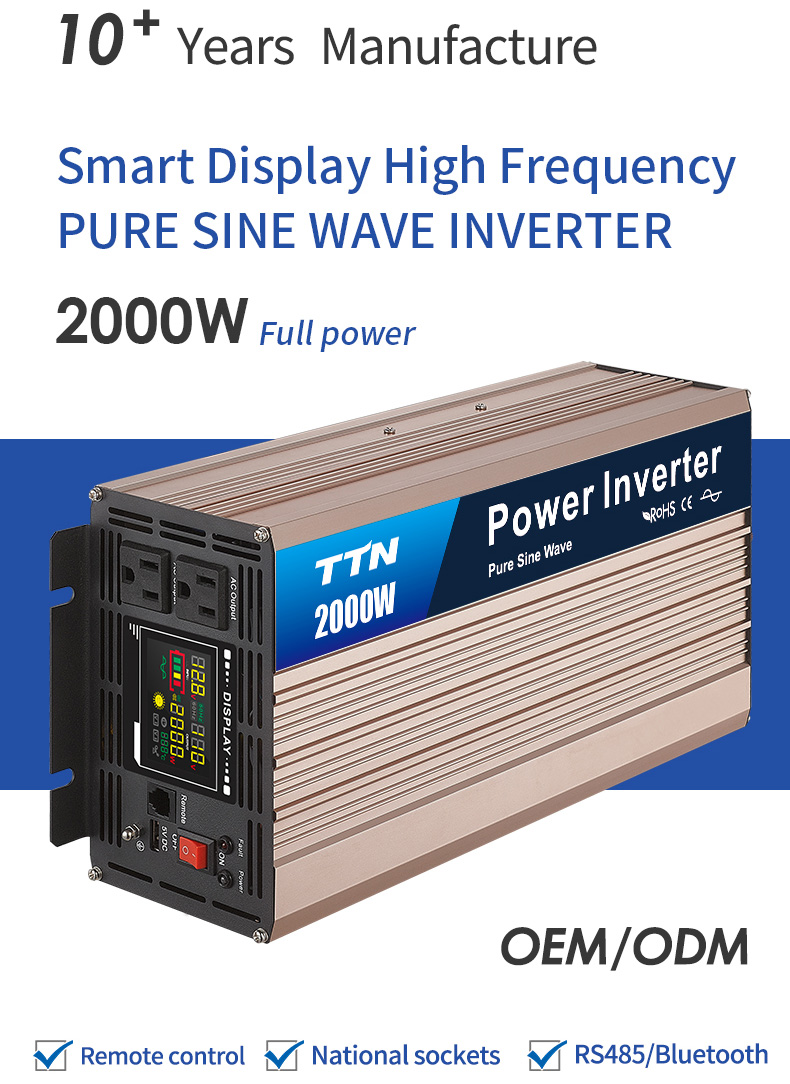

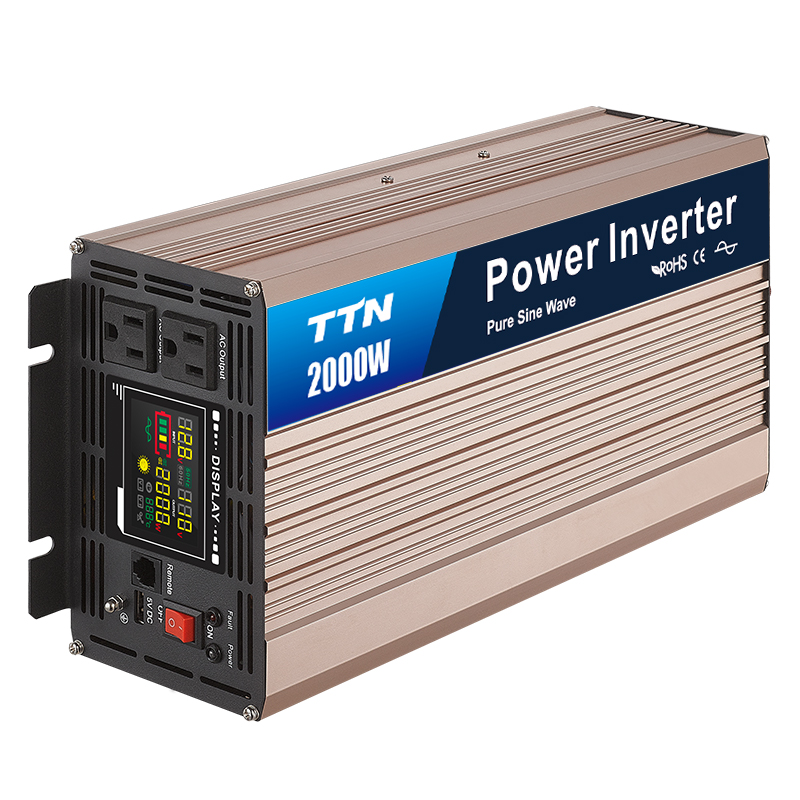

4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
5. Stable performance, safe and reliable, long service life.
6. Aluminum-magnesium alloy casing, lightweight, good thermal conductivity, can quickly reduce the temperature of parts,
and long-term work is not affected. Solar Power Inverter
and long-term work is not affected. Solar Power Inverter

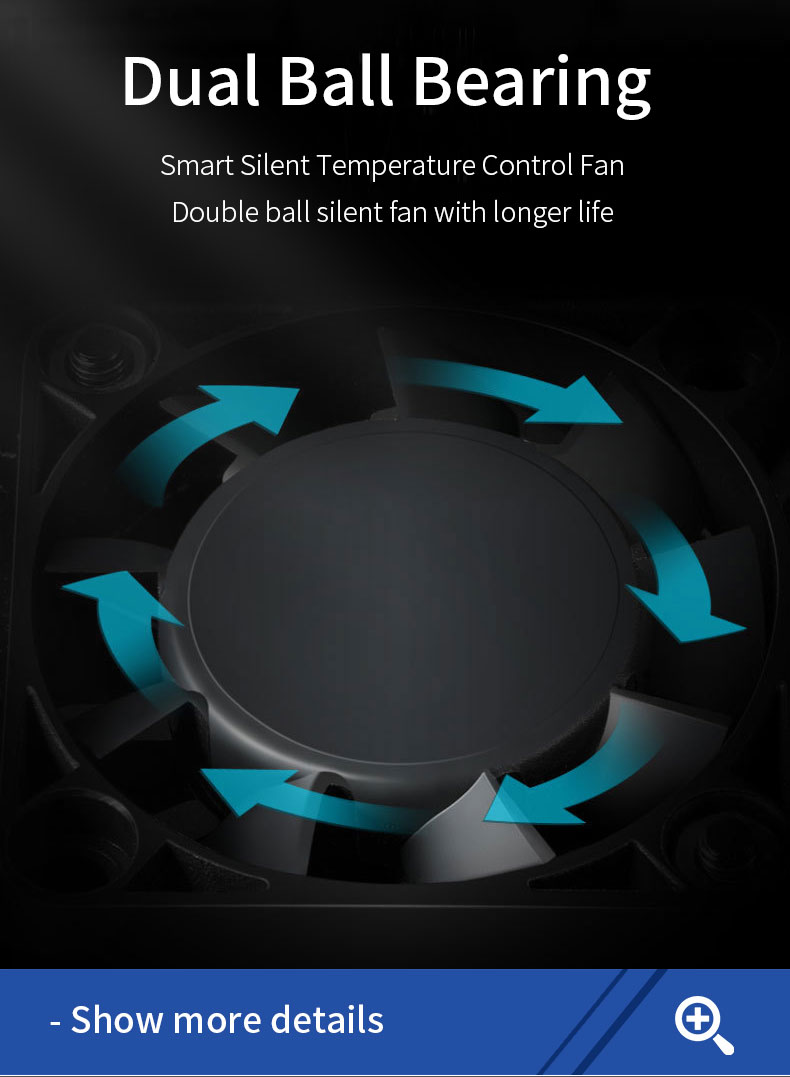

7. intelligent temperature control fan, make the inverter quieter. When the temperature is ≤ 45 °C, the fan stops working; when the temperature is ≥ 45 °C, the fan starts to work. Solar Power Inverter
8. Buzzer reminder device. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power supply, and the load enters the protection mode and reminds people via a buzzer reminder.
9. Low standby power consumption and high conversion rate.
|
Model |
300W- 12/24/48V |
500W-
12/24/48V |
600W-
12/24/48V |
1000W-
12/24/48V |
1500W-
12/24/48V |
2000W-
12/24/48V |
2500W-
12/24/48V |
| 3000W-
12/24/48V |
3500W-
12/24/48V |
4000W-
12/24/48V |
5000W-
12/24/48V |
6000W-
12/24/48V |
8000W- 24/48/96V |
||
| Digital display |
300W/500W/8000W No display 600W/1000W/1500W/2000W/2500W/3000W/3500W/4000W/5000W/6000W LED display |
||||||
| Rated Power |
300W~8000W |
||||||
| Surge Power |
600W~16000W |
||||||

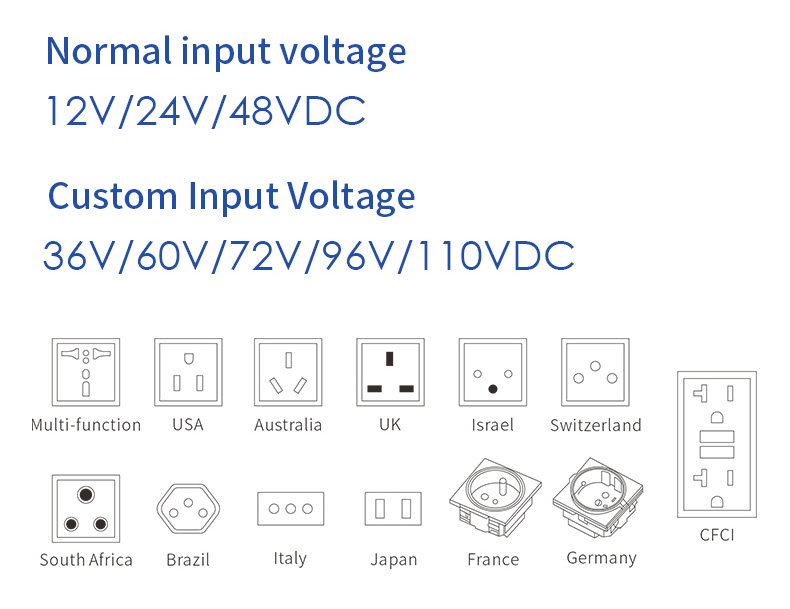

| Input Voltage |
12VDC/24VDC/48VDC/96VDC |
||||||
| Output Voltage |
110VAC±5%/220VAC±5% |
||||||
| USB Port |
5V1A |
||||||
| Frequency |
50Hz±3 or 60Hz±3 |
||||||
| Output Waveform |
Pure Sine Wave |
||||||
| Soft Start |
YES |
||||||
| AC Regulation |
THD<3%(Linear Load) |
||||||
| Output Efficiency |
94% MAX |
||||||
| No Load Current |
0.1A~3.8A |
||||||
| Cooling Way |
Intelligent Cooling Fan |
||||||
| Protection |
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit. Reverse Polarity |
||||||
| Working Temperature | -10℃ – +50℃ | ||||||
| Warranty | 2 Years | ||||||
|
Voltage Range
|
12V
|
24V
|
48V
|
96V
|
|
DC Voltage Range
|
10-15.5V
|
20-31V
|
40-61V
|
80~120V
|
|
Low Voltage Alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
83±1V
|
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
80±1V
|
|
Low Voltage Recovery
|
13±0.5V
|
24±0.5V
|
48±1V
|
96±1V
|
|
Over Voltage Shut Down
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
120±1V
|
|
Over Voltage Recovery
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
96±1V
|
|
Model
|
300W
|
500W
|
1000W
|
1500W
|
2000W
|
2500W
|
|
Net Dimension
|
19.5*11.2*6cm
|
23.2*15*7.8cm
|
32.6*16.5*8.7cm
|
36.2*16.5*8.7cm
|
43*16.5*8.7cm
|
44*17*10.5cm
|
|
Inner Box Dimension
|
25.6*15*9.8cm
|
28.6*20.3*13cm
|
35.1*20.5*12.2cm
|
45.6*20.6*12.2cm
|
45.6*20.6*12.2cm
|
noll
|
|
Meas/Ctn
|
51x49x30.7cm
/18pcs
|
63*34*38.5cm
/10pcs
|
67.5*37.3*29.7cm
/6pcs
|
52*47.5*38cm
/4pcs
|
52*47.5*38cm
/4pcs
|
51.5*23.3*17.5cm
/4pcs
|
|
N.W/Unit
|
1.0kg (1.2kg With Inner Box)
|
2.0kg (2.3kg With Inner Box)
|
3.1kg(3.5kg With Inner Box)
|
4.3kg(4.8kg With Inner Box)
|
5.2kg(5.7kg With Inner Box)
|
4.76kg(4.76kg With Inner Box)
|
|
G.W/Ctn
|
23KGS
|
24KGS
|
22KGS
|
20KGS
|
24.5KGS
|
22.52KGS
|
|

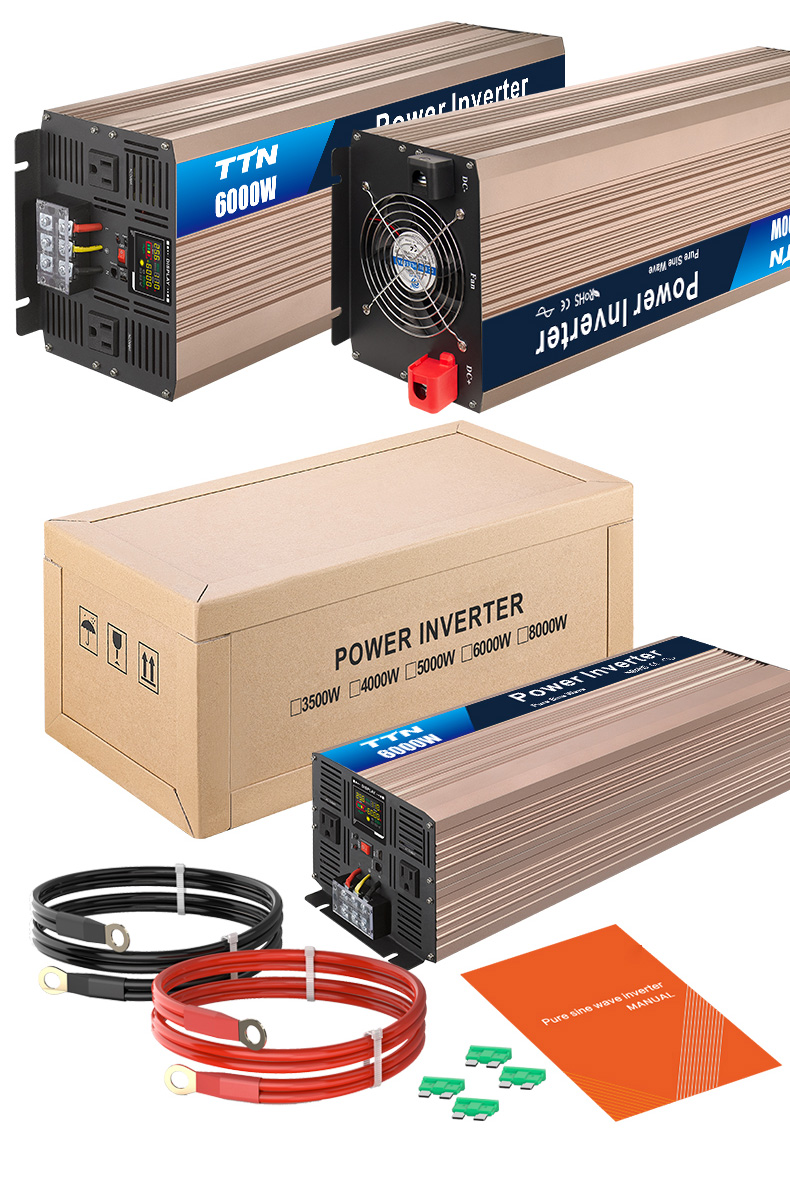

Packing
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
Colour box
|
|
Model
|
3000W
|
3500W
|
4000W
|
5000W
|
6000W
|
8000W
|
|
Net Dimension
|
46*21*8.6cm
(L×WxH)
|
44*20*15 cm
(L×WxH)
|
46.5*21.6*15.6cm
(LxWxH)
|
46.5*21.6*15.6cm
(LxWxH)
|
51.8*20*14.5cm
(LxWxH)
|
66*30*23.5cm
(LxWxH)
|
|
Meas/Ctn
|
53.5*51.5*27.5cm
/4pcs
|
56.5*30.8*24cm
/1pcs
|
57.5*31.5*25cm
/1pcs
|
57.5*31.5*25cm
/1pcs
|
64.3*30*23.5cm
/1pcs
|
74*30*23.5cm
/1pcs
|
|
N.W/Unit
|
26kg
|
8.92kg
|
10kg
|
10.5kg
|
12kg
|
14kg
|
|
G.W/Ctn
|
28KGS
|
10.7KGS
|
12KGS
|
12.5KGS
|
14KGS
|
18KGS
|
|

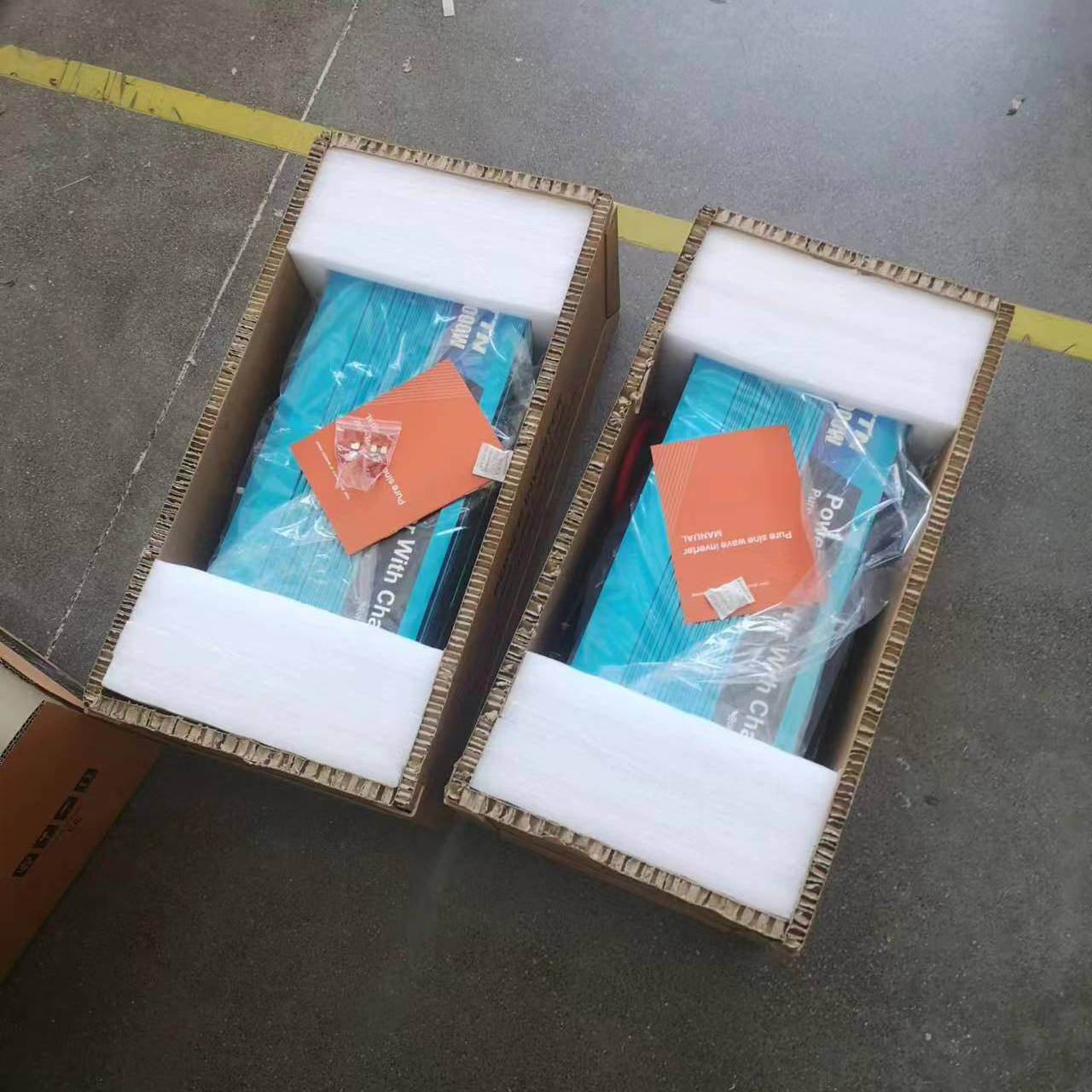

Packing
|
Carton
|
Carton
|
Honeycomb
carton
|
Honeycomb
carton
|
Honeycomb
carton
|
Honeycomb
carton
|
