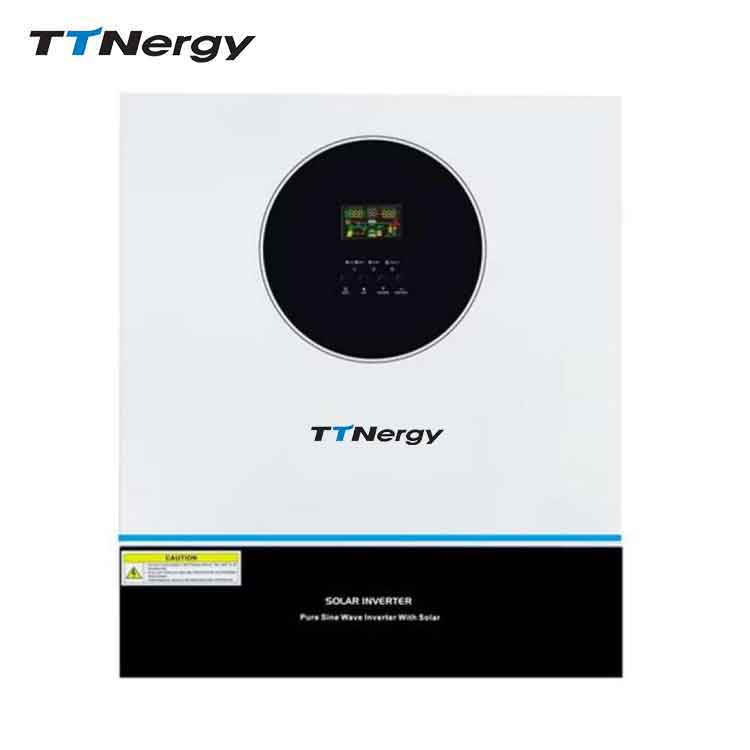

TTNergy Max 11kW Parallel solar inverter
Sale!
TTNergy Max 11kW Parallel solar inverter
Additional information
| Humidity | 20%-95%(Non-condensing) |
|---|---|
| Altitude | <1000m |
| Noise(dB) | <50db |
| Size | 570.8*500*148.2mm |
Product Information
Support Parallel
- Lithium Battery Auto-restart Function , More Convenient forLithium Battery Charging
- intelligent Power supply Mode, intelligent Distribution of solar Panel/Mains/BatteryPower Shares
- Utility charging Voltage/pv charging Voltage Adjustable Match Different Battery Charging Requirements
- slim Body, Convenient Installation And Transportation
- Battery Reverse Connection Protection with Fuse Switch, Safer Installation
- PF1.0, High Efficiency,Lower Consumption,Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
- Support Working without Battery: Reduce Solar System Cost
- Parallel Function Up to Maximum 9 Units: Enlarge More Loads
- High Precision of Output Voltage,±5%, Take Care of Your Appliances
- Communication Option: External WiFl, supervise at Any Time
- BMS function for lithium battery
| Model | MAX 11 KB | |
| Nominal Voltage | 220/230/240VAC | |
| Voltage Range | 90-280VAC+3V(Inverter Mode) 170-280VAC±3V ( UPS Mode ) | |
| Frequency | 50-60Hz Auto sensing | |
| Rated Output Power | 11000W | |
| Output Voltage(Ac) | 220/230/240VAC+5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Waveform | Pure sine wave | |
| Transfer time(Ac to Dc) | 10ms for Computer Equipment, 20ms for Household Equipment | |
| Peak Power | 22000VA | |
| Overload Capacity(Battery Mode) | 21s@105%~150% Load 11s@150%-200% Load 400ms@>200% Load | |
| Grid connectedoperation | Output voltage | 220/230/240VAC |
| Grid voltage Range | 195-253VA | |
| Grid Frequency Range | 49-51+1 Hz / 59-61±1 Hz | |
| Output Current | 47.8A | |
| Power Factor Range | 0.99 | |
| Peak Efficiency(Battery Model) | 98% | |
| Norminal Voltage | 48VDC | |
| Constant Charging Voltage | 56.4VDC | |
| Float Charging Voltage | 54VDC | |
| PV Charging Way | MPPT | |
| Max PV input Power | 2*5500W | |
| MPPT Controller Voltage | 90-500VDC | |
| MAX PV Input Voltage | 500VDC | |
| MAX PV Charge Current | 150A | |
| MAX AC Charge Current | 150A | |
| MAX Charge Current | 150A | |
| LCD Display | Ac input Voltage, Ac input frequency, PV Voltage,PV Current, output Voltage, Output Frequency, Battery Voltage, Load Current,etc. | |
| Expansion Slot Communication Interface | Lithium battery BMS communication card.WIFI etc | |
