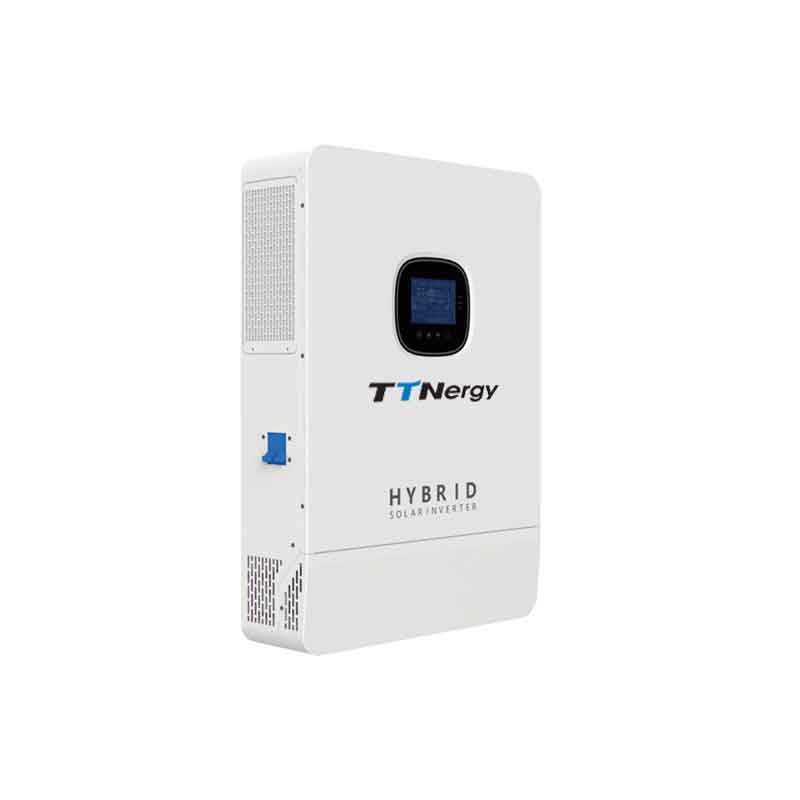

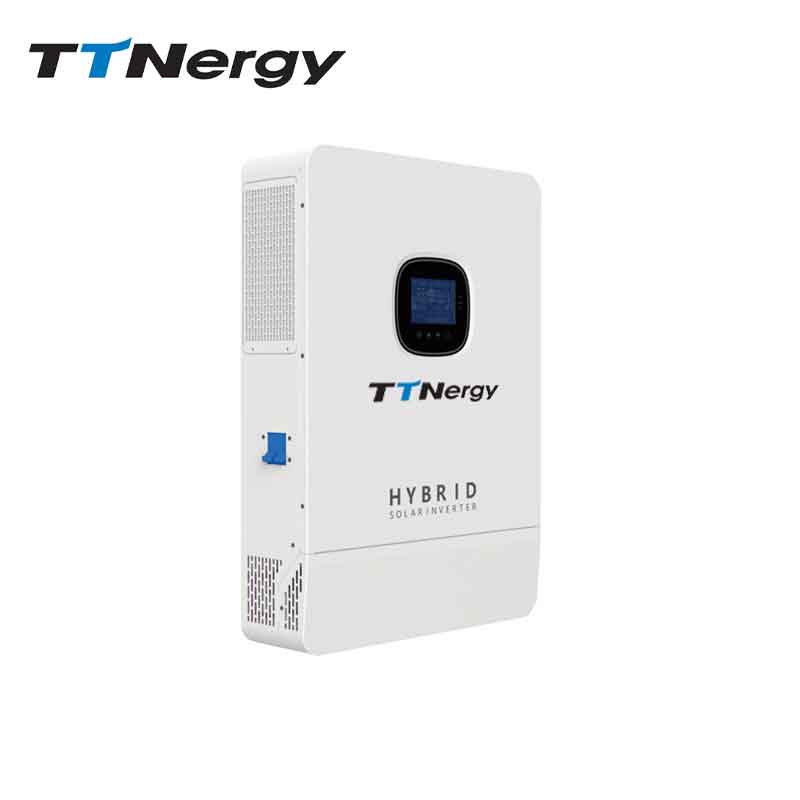

TTNergy spice series US&EU Solar Charger Inverter 8000W/10000W
TTNergy spice series US&EU Solar Charger Inverter 8000W/10000W
Additional information
| Dimensions | 620*435*130mm(2*1.4*0.4ft) |
|---|---|
| Protection Degree | IP20，Indoor Only |
| Operating Temperature Range | -15~55°C,>45C derated, (5~131°F，>113°F derated) |
| Noise | <60dB |
| Cooling Method | Internal Fan |
| Warranty | 2 Years |
Product Information
Effcient
Dual MPPT with up to 99.9% efficiency
Up to 22A PV input current perfect for high power modules
User-friendly
Industrial design with a modemn aesthetic lookEasy to install and simple to use
All-in-one
Solar Charger Controller up to 200A charging current
Support for Li-ion battery BMS communication
Reliable
Outputs high quality pure sine wave AC power
8-10kW load power to meet the needs of most househo
Safety
360 degrees of security from hardware to softwareEU and North American safety approvals
Intelligent
Exclusive Li-ion battery BMS dual activation
Time-slot function to save cost with peak-valley tariff
| Model | SPICE 4880U200-H | SPICE 48100U200-H | Can Be Set | ||
| Inverter Output | |||||
| Rated Output Power | 8,000W | 10,000W | |||
| Max.Peak Power | 16,000W | 20,000W | |||
| Bated Output Voltage | 120/240Vac(L1/L2/N/PE split phase)or 200-240Vac for EU | Y | |||
| Load Capacity of Motors | 5HP | 6HP | |||
| Bated AC Frequency | 50/60Hz | ||||
| Waveform | Pure Sine Wave | ||||
| Switch Time | 10ms(typical) | ||||
| Parallel capacity | |||||
| BATTERY | |||||
| Battery Type | Li-ion /Lead-Acid/User Defined | Y | |||
| Bated Battery Voltage | 48Vdc | ||||
| Voltage Range | 40-60Vdc | Y | |||
| Max.MPPT Charging Current | 200A | Y | |||
| Max Mains/Generator Charging | 100A | 120A | Y | ||
| Current | |||||
| Max.Hybrid Charging Current | 180A | 200A | Y | ||
| PV Input | |||||
| Num.of MPP Trackers | 2 | ||||
| Max.PY array power | 11,000W | ||||
| Max,input current | 22/22A | ||||
| Max.Voltage of Open Circuit | 500Vdc | ||||
| MPPT Voltage Range | 125-425Vdc | ||||
| Mains / Generator Input | |||||
| Input Voltage Range | 90-140Vac for US;90-280Vac for EU | ||||
| Frequency Range | 50/60 Hz | ||||
| Bypass Overload Current | 63A | ||||
| Efficiency | |||||
| MPPT Tracking Effhiciency | 99.90% | ||||
| Max. Battery Inverter Effciency | 92% | ||||
| General | |||||
| Dimensions | 620*435*130mm(2*1.4*0.4ft) | ||||
| Weighg | 20kg(44lb) | 21kg(46.3lb) | |||
| Protection Degree | IP20, Indoor Only | ||||
| Operating Temperature Range | -15-55℃, >45℃ derated | ||||
| (5~131℉, >113℉ derated) | |||||
| Noise | <60dB | ||||
| Cooling Method | Internal Fan | ||||
| Warranty | 2 Years | ||||
| Communication | |||||
| Embedded Interfaces | RS485/CAN/USB/Dry contact | Y | |||
| External Modules (Optional) | Wi-Fi / GPRS | Y | |||
| Certification | |||||
| Safety | IEC62109-1,IEC62109-2,UL1741 | ||||
| EMC | EN61000-6-1, EN61000-6-3,FCC 15 class B | ||||
| RoHS | Yes | ||||
